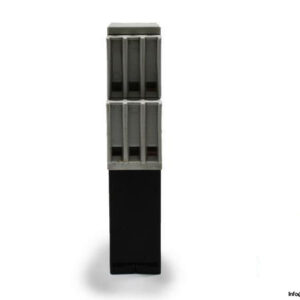

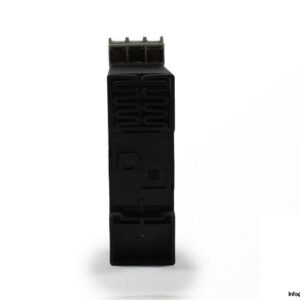

SIEMENS 3TK2830-1CB30 SIRIUS SAFETY RELAY
Engineered for high-performance safety applications, the Siemens SIRIUS 3TK2830-1CB30 is a reliable safety relay extension unit equipped with a relay enabling circuit. Designed for dependable operation in industrial environments, it ensures functional safety and seamless integration.
Manufacturer: SIEMENS
Type: SIRIUS Safety Relay with Relay Enabling Circuit
Model: 3TK2830-1CB30

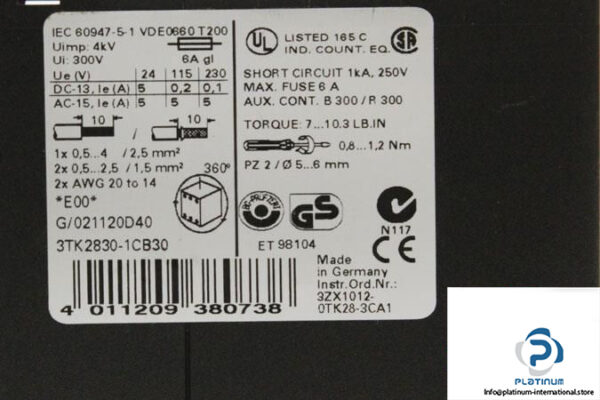

Order No.: 3ZX1012-0TK28-3CA1
Ref No.: G/021120D40
Technical Information
- Control Supply Voltage: 24 V AC/DC
- Frequency: 50/60 Hz
- Air Pressure: 90 / 106 kPa
- Cable Length: 1000 m
- Safety Device Type: Type A

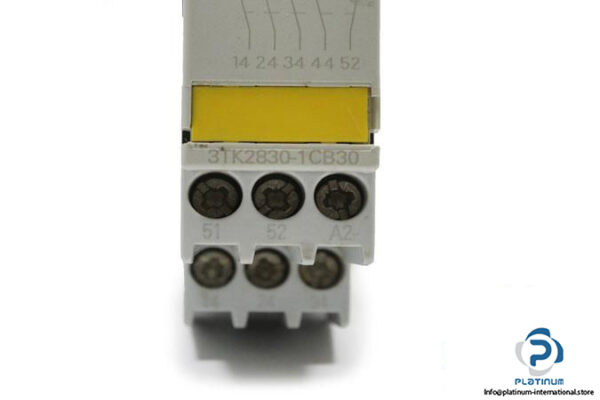

- Output Contact: 4 N/O, 1 N/C
- Resistance to Direct Current: 30 Ohm
- Design of the Product: Extension Unit
- Type of Mounting: Screw and Snap-on Mounting
- Electrical Connection: Screw-Type Terminals
- Protection Against Shock: Finger-Safe
- Protection Class: IP40 (enclosure) / IP20 (terminal)
- Ambient Temperature: -25 / +60 °C
- Channel Configuration: 2 Channel
- Dimensions: 120 x 22.5 x 120 mm
