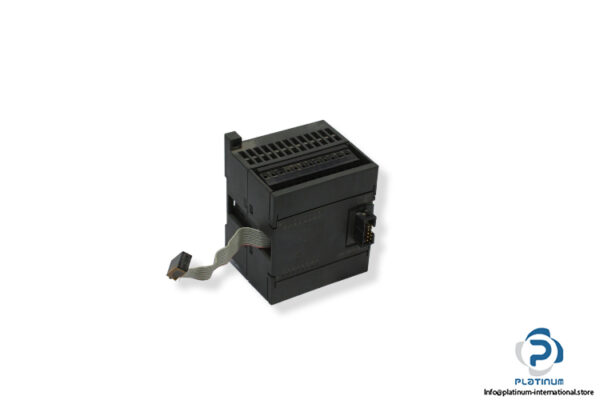

SIEMENS SIMATIC S7-200 EM 223 DC RELAY MODULE

The Siemens EM 223 DC Relay Module is a reliable and compact extension unit designed exclusively for S7-22X CPUs in the SIMATIC S7-200 series. With high switching capacity and seamless digital I/O integration, it enhances system flexibility and control in industrial automation environments.

Manufacturer: SIEMENS
Type: DC Relay Module
Family: SIMATIC S7-200
Model: EM 223

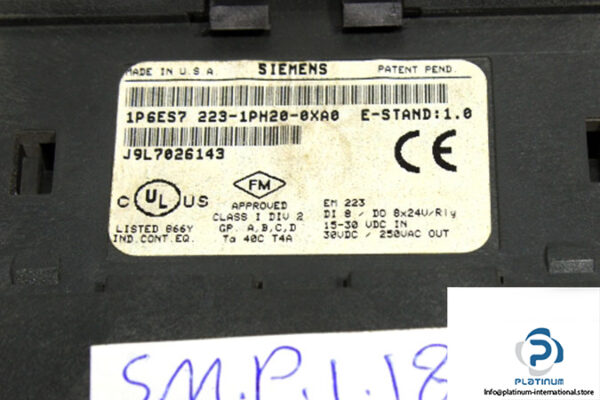

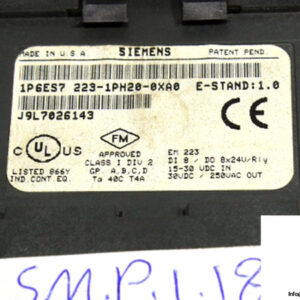

MRN: 6ES7223-1PH20-0XA0
E STAND: 1.0
REF NO: J9L7026143
Application: Only For S7-22X CPU

Technical Information

• Input Voltage: Rated 24 V DC
• Signal œ0 Range: 0 / 5 V DC
• Signal œ1 Range: 15 / 30 V DC
• Number of Digital Inputs (DI): 8
• Number of Digital Outputs (DO): 8, Relays
• Digital Output Voltage: 30 V DC
• Digital Output Current (Signal œ1 Rated): 2 A
• Relay Voltage: 250 V AC
• Dimensions: 71 x 80 x 62 mm
