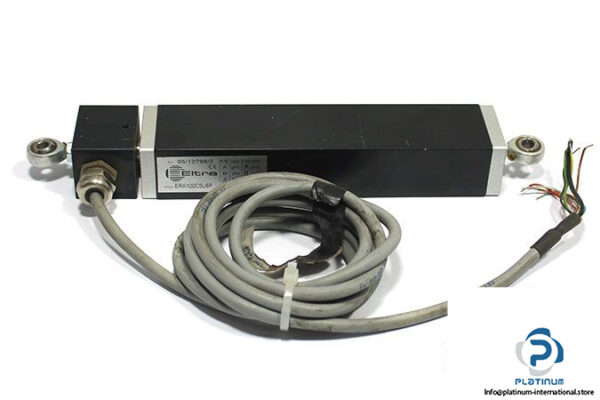

ELTRA ERA100C5L6P INCREMENTAL LINEAR ENCODER
The ELTRA ERA100C5L6P is a high-precision incremental linear encoder engineered for reliable position detection in automation and motion control systems. It ensures accurate linear measurements and delivers consistent performance even in challenging industrial environments.
Manufacturer: ELTRA
Type: Incremental Linear Encoder
Model: ERA100C5L6P
Serial No.: 05/12798/2
Technical Information
- Working Stroke: 100 mm
- Principle of Operation: Incremental
- Electronic Interface: Line Driver
- Zero Pulse: Central Zero Index
- Power Supply: 5 V DC

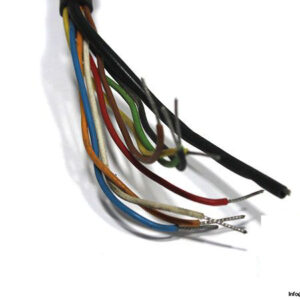

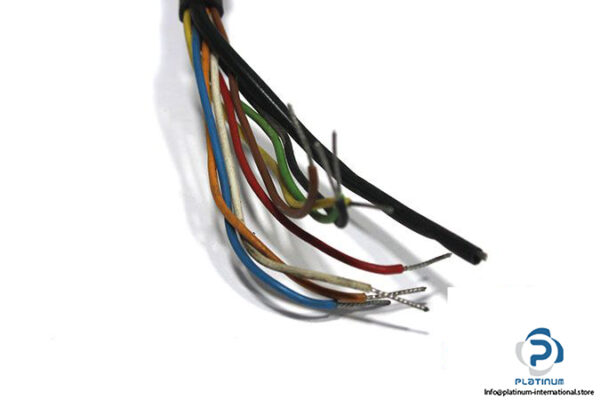

- Output Type: Cable
- Direction Type: Radial
- Max Output Frequency: 100 kHz
- Operating Temperature: -10°C to +60°C
- Resolution: 0.2 mm
- Electrical Connection: Cable, 01.ТÑа
