Balluff BTL1E54 Linear Motion Sensor
Used
In stock1 unitReady to ship
LINEAR MOTION SENSOR
Balluff BTL1E54 is a linear motion sensor from the Micropulse series with 1000 mm measuring range, 0.005 mm repeatability, and IP67 protection, ideal for precise industrial automation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

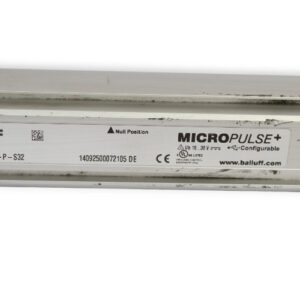

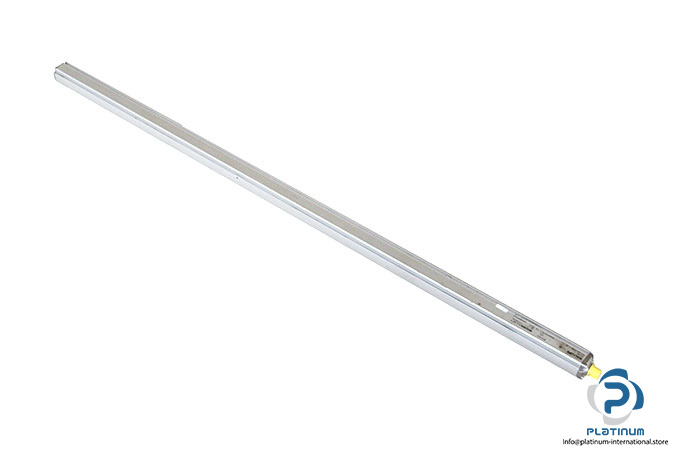

BALLUFF BTL1E54 LINEAR MOTION SENSOR
The Balluff BTL1E54 is a highly precise linear motion sensor from the Micropulse series, engineered for demanding industrial applications. Designed to deliver reliable feedback with excellent repeatability and environmental protection, it is ideal for position monitoring in automation systems.
Manufacturer: Balluff
Type: Linear Motion Sensor
Model: BTL1E54

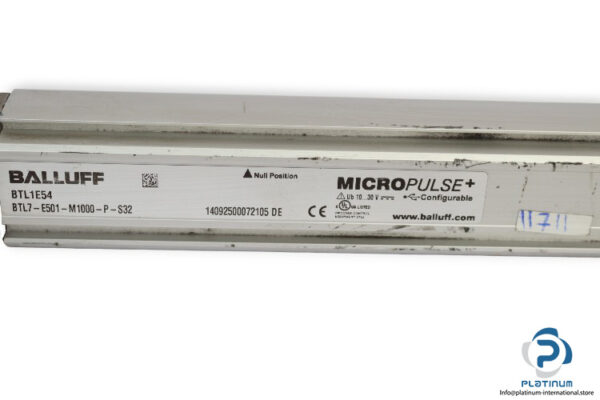

Part No.: BTL7-E501-M1000-P-S32
Order No.: 14092500072105 DE
| Series | Micropulse |
| Repeatability | 0.005 mm |
| Rated Supply Voltage | 10 / 30 V DC |
| Measuring Range | 1000 mm |
| Output Signal | 4 / 20 mA, 20 / 4 mA |
| Operating Temperature Range | -40 / +85 °C |
| Degree of Protection | IP 67 |
| Housing Material | Aluminum |

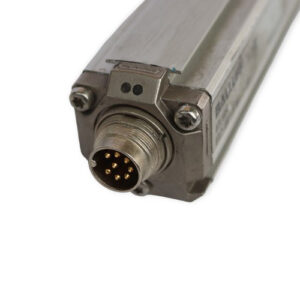

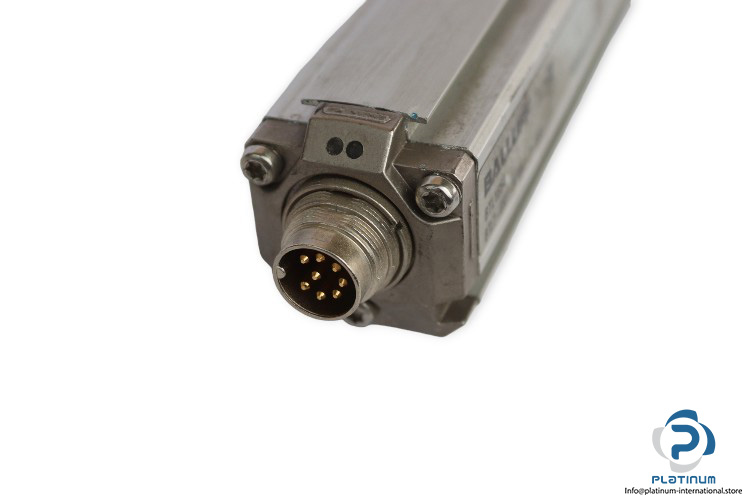

| Connection | M16, 8-pin connector |
