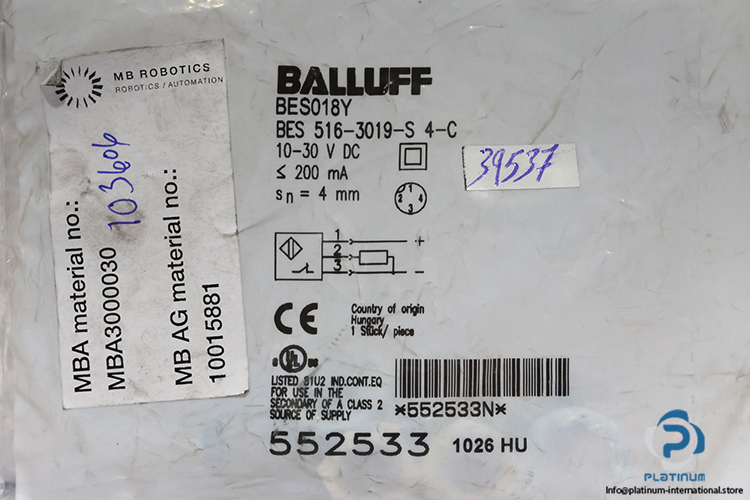

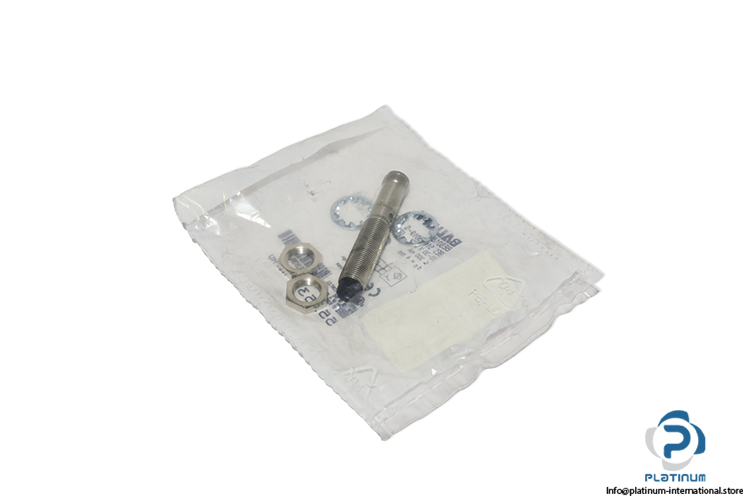

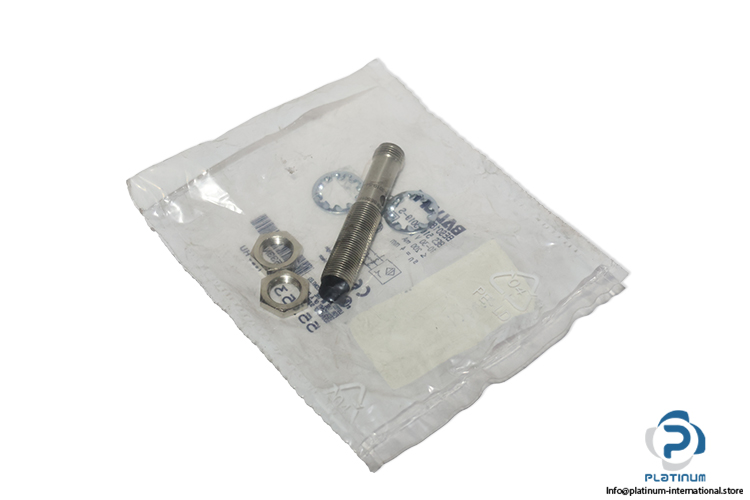

Balluff BES 516-3019-S4-C Inductive Proximity Sensor
New
In stock1 unitReady to ship
Inductive Proximity Sensor The BALLUFF BES 516-3019-S 4-C is an industrial proximity sensor with PNP NC output, Stainless steel housing, for reliable automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Order Code | BES018Y |
| Ref No | 552533,1026 HU |
| Switching output | PNP Normally Closed (NC) |
| Assured operating distance Sa | 3.2 mm |
| Range | 4 mm |

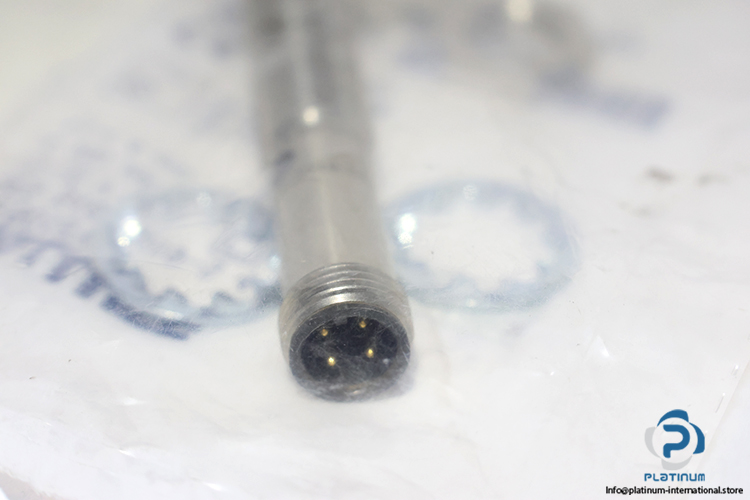

| Connection | M12x1-Connector, 4-pole, Acoded |
| Operating voltage Ub | 10…30 VDC |
| Rated insulation voltage Ui | 250 V DC |
| Rated operating current Ie DC | 200 mA |
| Utilization category | DC -13 |
| Voltage drop static max. | 2.5 V |
| Ambient temperature | -40…85 °C |
| Approval/Conformity | CE cULus ,Basic standard IEC 60947-5-2 |
| Housing material | Stainless steel |
| Material sensing surface | LCP |
| Dimension | 12 x Length 70 mm |
| Installation | non-flush |
| Size | M12x1 |
| Tightening torque | 12 Nm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100954 |
| Weight | 0,03 |
