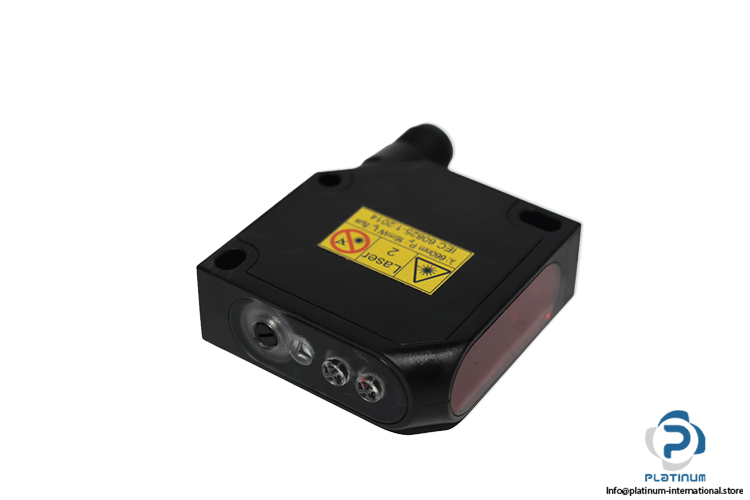

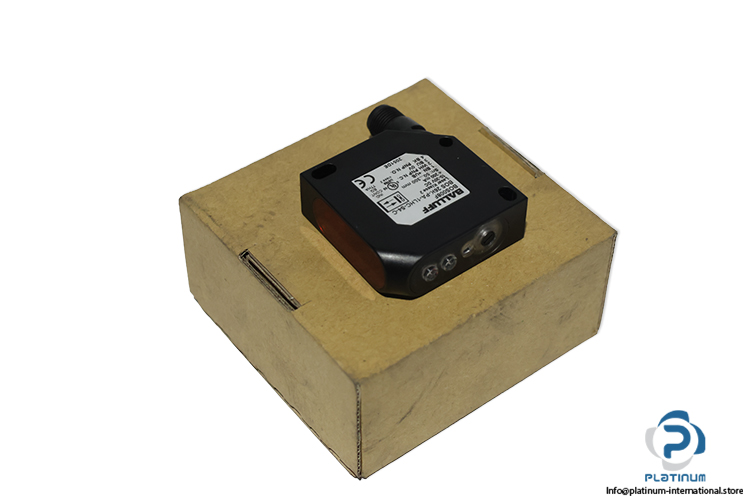

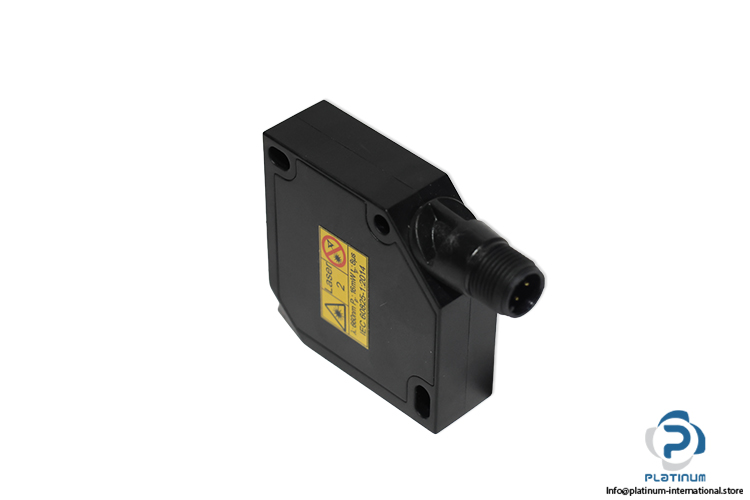

Balluff BOS 26K-PA-1LHC-S4-C Photoelectric Diffuse Sensor

In stock1 unitReady to ship

Photoelectric Diffuse Sensor The BALLUFF BOS26K-PA-1LHC-S4-C is a compact photoelectric diffuse sensor with a 50…300 mm range, red LED light, and PNP NO/NC outputs for reliable industrial object detection.

Manufacturer
BALLUFF
SKU
1100956
Category
Sensors
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

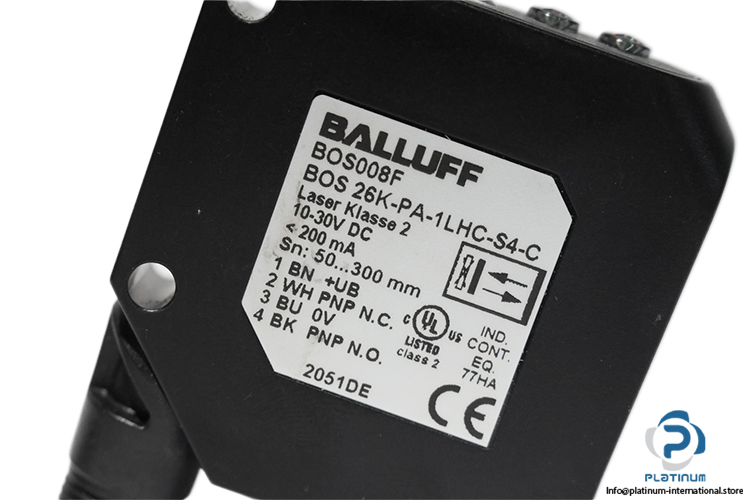

Order CodeBOS008F
Class2
Ref No2051DE
AdjusterPotentiometer 2-turn (1x)
SettingRated switching distance (Sn)
Switching outputPNP Normally closed (NC), PNP Normally open (NO)
Series26K
StyleSquare ,Connection can be rotated
Distance deviation 18 % max. (% of Sr)5 % on 90 % rem.
Measuring range50…300 mm
Range50…300 mm
Rated operating distance Sn300 mm, Adjustable

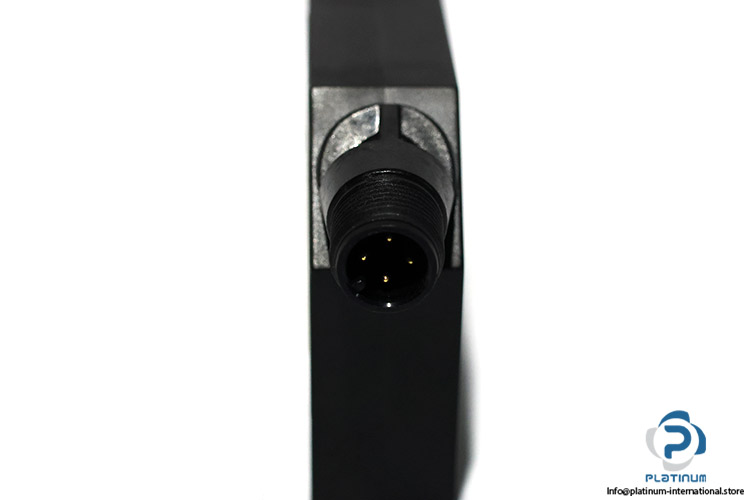

ConnectionM12x1-Connector, 4-pole, Acoded
Operating voltage Ub10…30 VDC
Rated insulation voltage Ui75 V DC
Rated operating current Ie DC200 mA
Utilization categoryDC -13
Voltage drop2.4 V
Ambient temperature-20…45 °C
Protection type IEC 60529IP67
Approval/ConformityCE cULus ,Basic standard IEC 60947-5-2
Housing materialABS
Material sensing surfacePMMA
Dimension17 x 50 x 50 mm
Fastening detailScrew M4
Ambient light max.5000 Lux
Average power Po max.1 mW
Laser class per IEC 60825-12
Light typeLaser Red light
Special optical featureBackground suppression
Wave length670 nm
Stock keyCON003
ConditionNew
SKU1100956
Weight0,09
