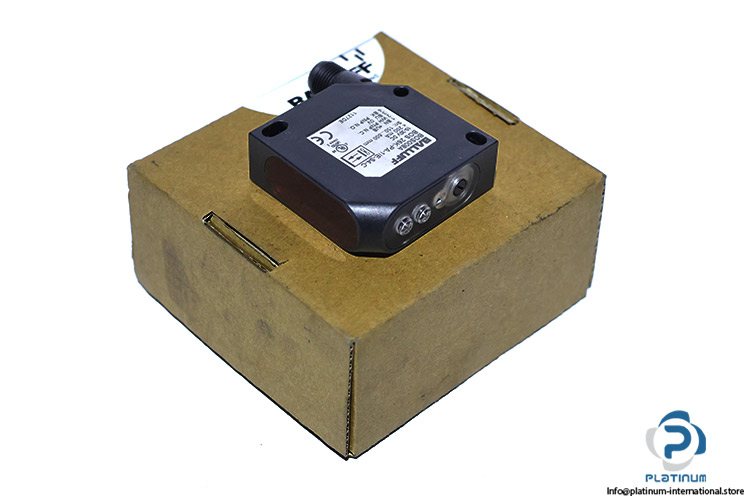

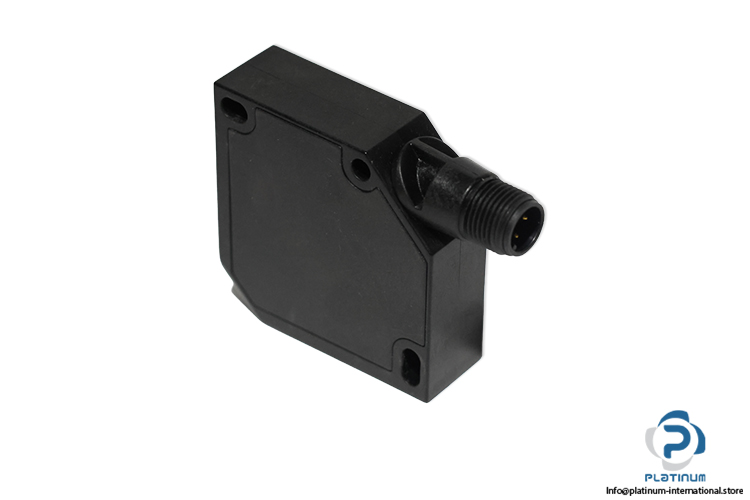

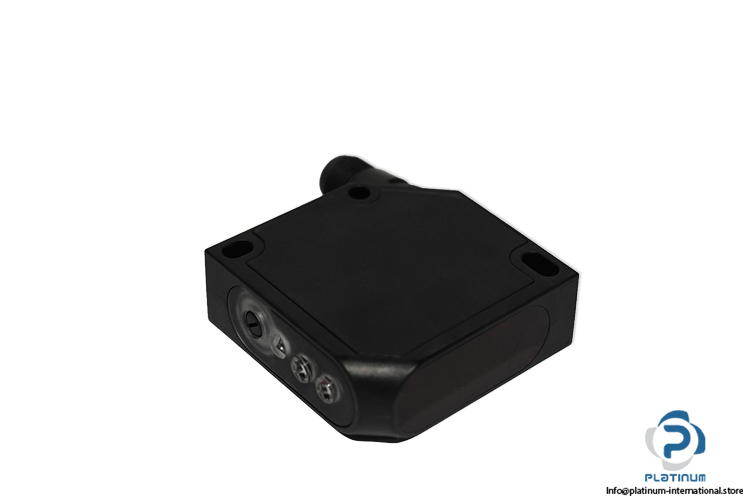

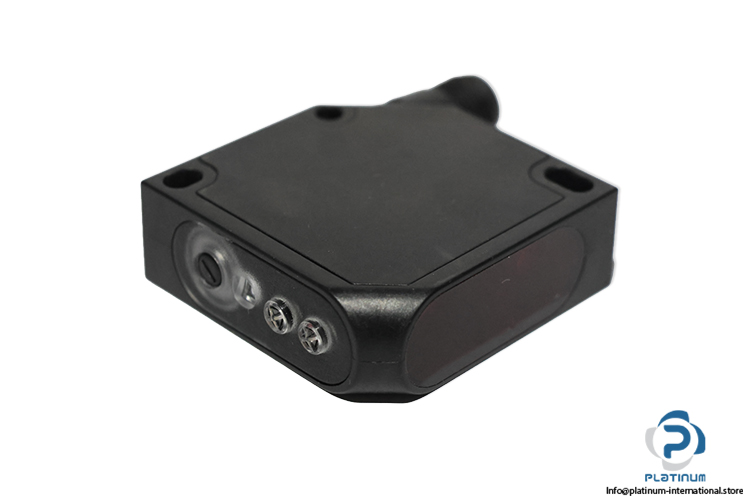

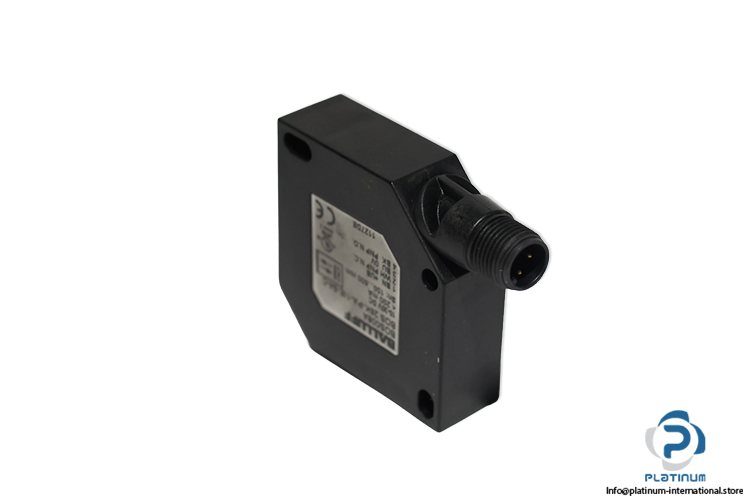

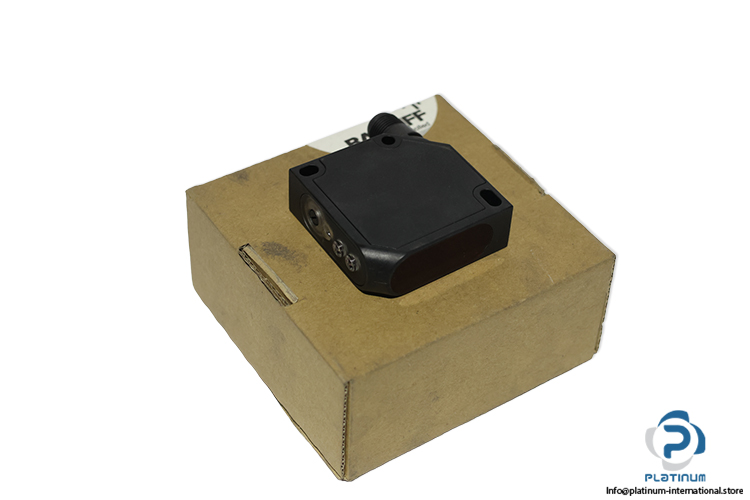

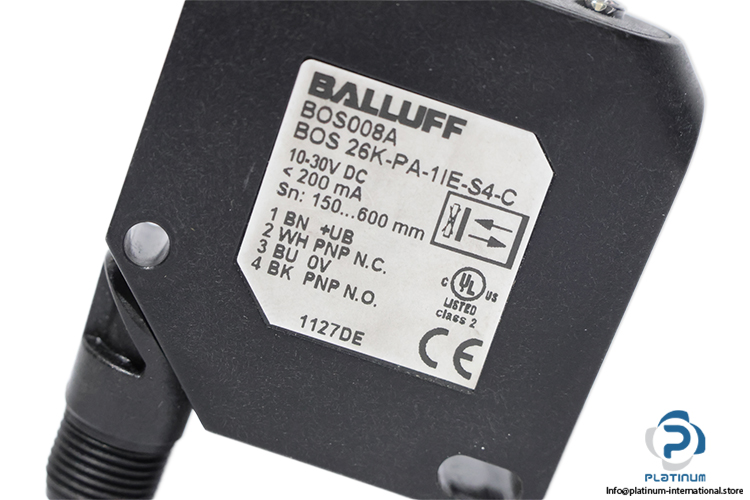

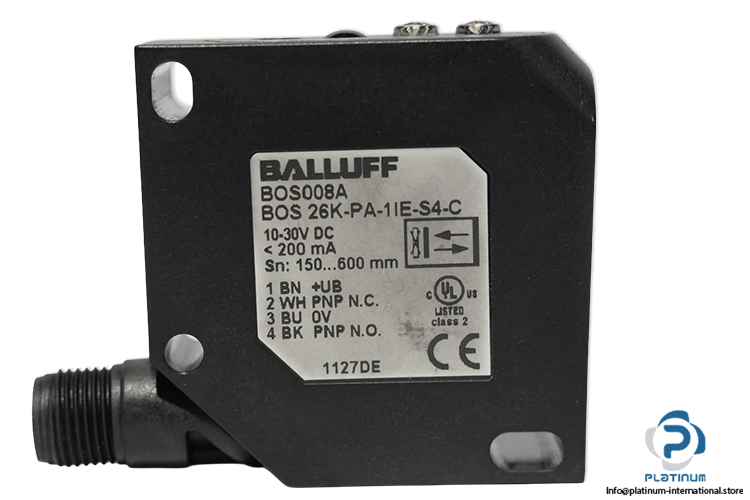

Balluff BOS 26K-PA-1IE-S4-C Photoelectric Diffuse Sensor
New
In stock2 unitsReady to ship
Photoelectric Diffuse Sensor The BALLUFF BOS26K-PA-1IE-S4-C is a compact photoelectric diffuse sensor with a 150…600 mm range, red LED light, and PNP NO/NC outputs for reliable industrial object detection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Order Code | BOS008A |
| Class | 2 |
| Adjuster | Potentiometer 2-turn |
| Display | Output function- LED yellow Error - LED red Switching dist. - dig. disp. Stability - LED green |
| Setting | Rated switching distance (Sn) |
| Switching output | PNP Normally closed (NC), PNP Normally open (NO) Pins 4-2 |
| Series | 26K |
| Style | Square ,Connection can be rotated |
| Distance deviation 18 % max. (% of Sr) | 8 % on 90 % rem. |
| Range | 150...600 mm |
| Rated operating distance Sn | 600 mm, Adjustable |

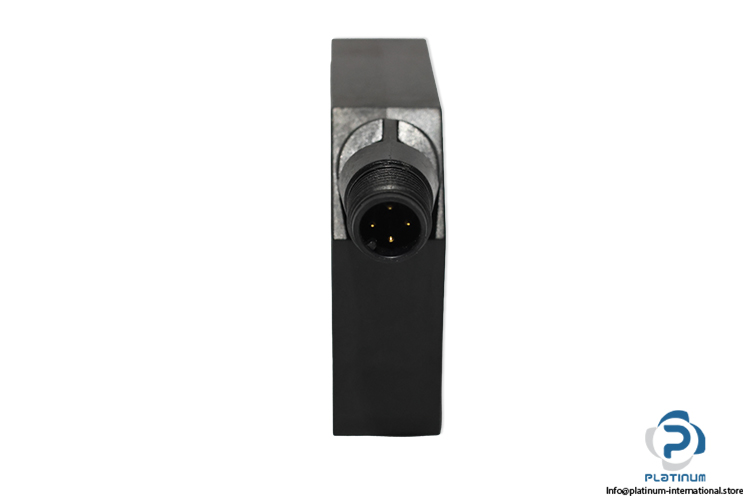

| Connection | M12x1-Connector, 4-pin |
| Operating voltage Ub | 10…30 VDC |
| Rated insulation voltage Ui | 75 V DC |
| Rated operating current Ie DC | 200 mA |
| Utilization category | DC -13 |
| Voltage drop | 2.4 V |
| Ambient temperature | -20…60 °C |
| Protection type IEC 60529 | IP67 |
| Approval/Conformity | CE cULus ,Basic standard IEC 60947-5-2 |
| Housing material | ABS |
| Material sensing surface | PMMA |
| Dimension | 17 x 50 x 50 mm |
| Fastening detail | Screw M4 |
| Ambient light max. | 5000 Lux |
| Light type | infrared |
| Special optical feature | Background suppression |
| Wave length | 880 nm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100958 |
| Weight | 0,06 |
