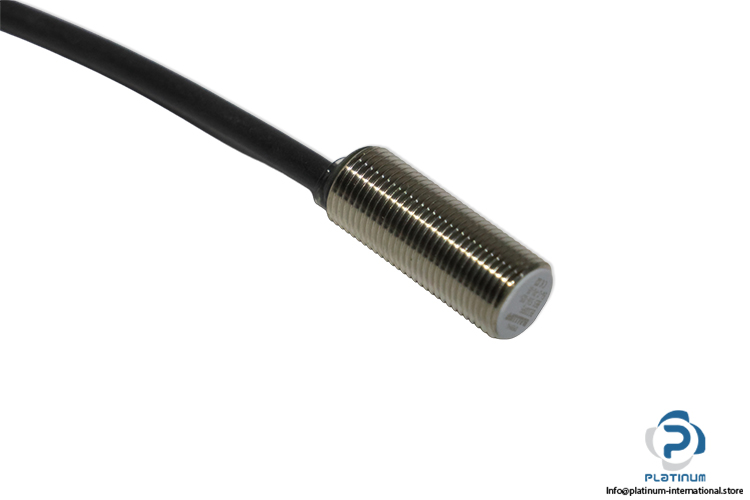

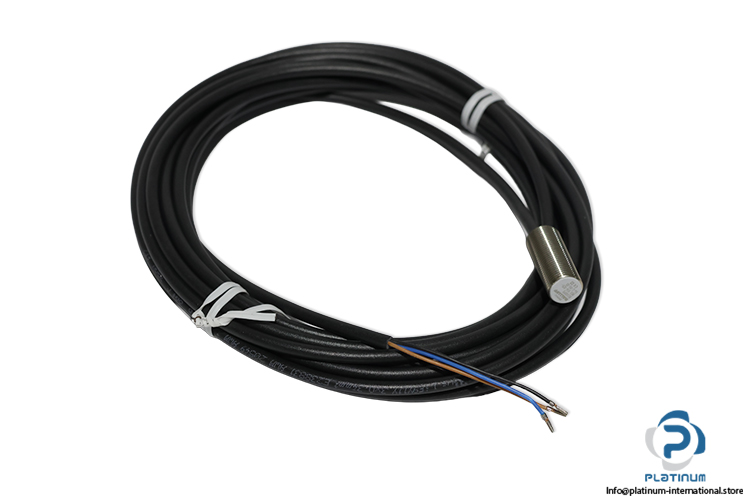

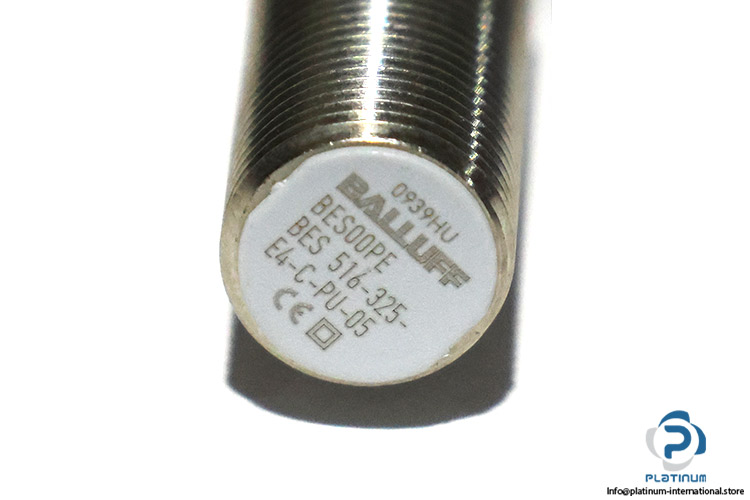

Balluff BES 516-325-E4-C-PU-05 Inductive Proximity Sensor
New
In stock1 unitReady to ship
Inductive Proximity Sensor The BALLUFF BES 516-325-E4-C-PU-05 is an industrial proximity sensor with PNP NC output, brass housing, for reliable automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

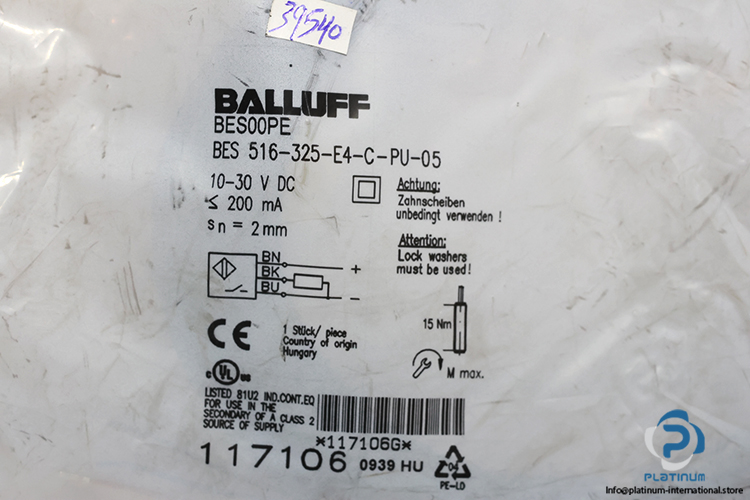

| Order Code | BES00PE |
| Ref No | 0939HU, 117106,117106G,0939 HU |
| Switching output | PNP Normally Open (NO) |
| Assured operating distance Sa | 1.6 mm |
| Hysteresis H max. (% of Sr) | 15.0 % |
| Rated operating distance Sn | 2 mm |
| Real switching distance sr | 2 mm |

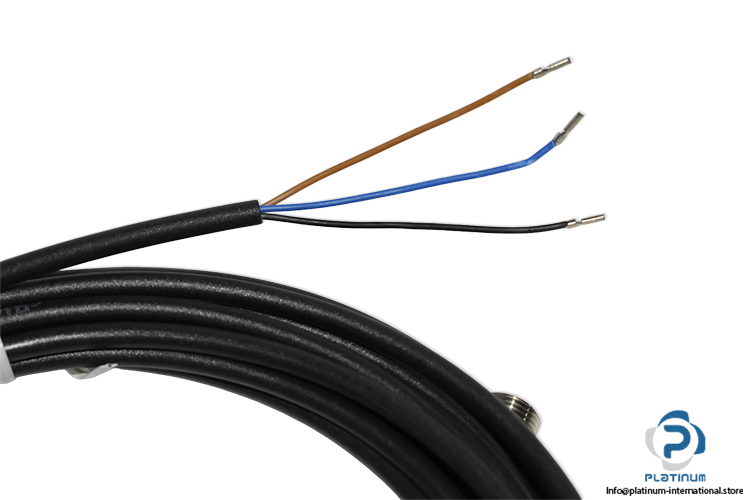

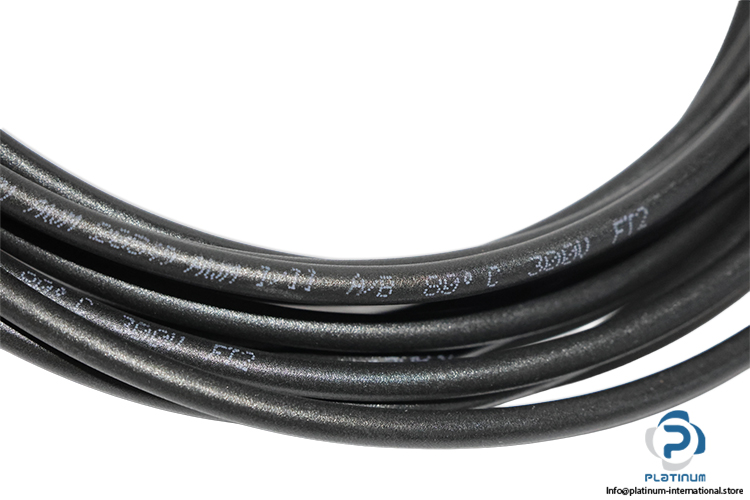

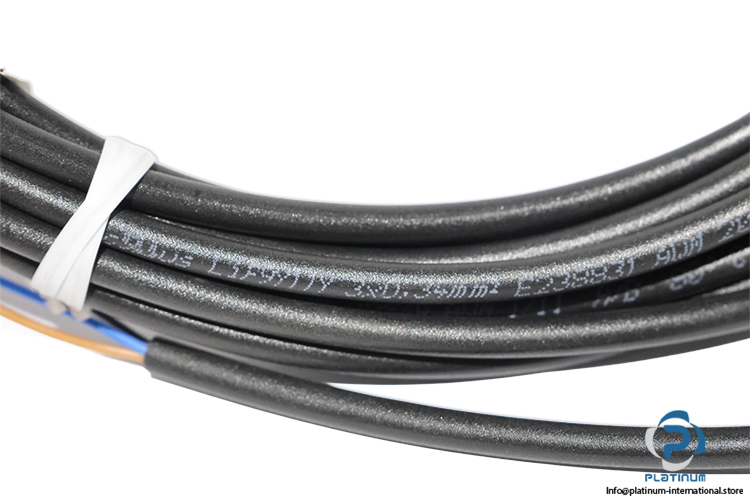

| Connection | Cable, 5.00 m, TPU |
| Operating voltage Ub | 10…30 VDC |
| Rated insulation voltage Ui | 250 V AC |
| Rated operating current Ie DC | 200 mA |
| Utilization category | DC -13 |
| Voltage drop static max. | 1.5 V |
| Ambient temperature | -25…70 °C |
| Protection type | IP68 |
| Approval/Conformity | CE cULus WEEE,Basic standard IEC 60947-5-2 |
| Housing material | Brass |
| Material sensing surface | PBT |
| Dimension | 12 x Length 33 mm |
| Installation | flush |
| Size | M12x1 |
| Tightening torque | 10 Nm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100957 |
| Weight | 0,11 |
