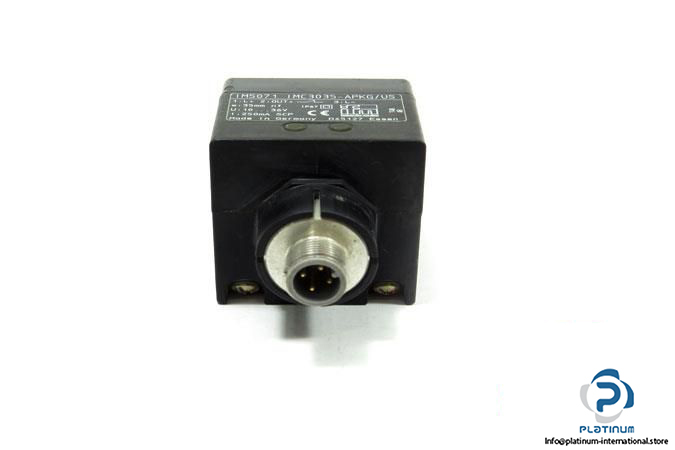

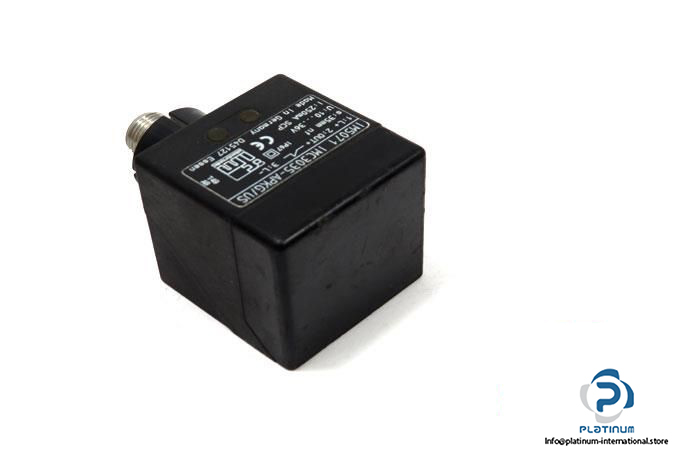

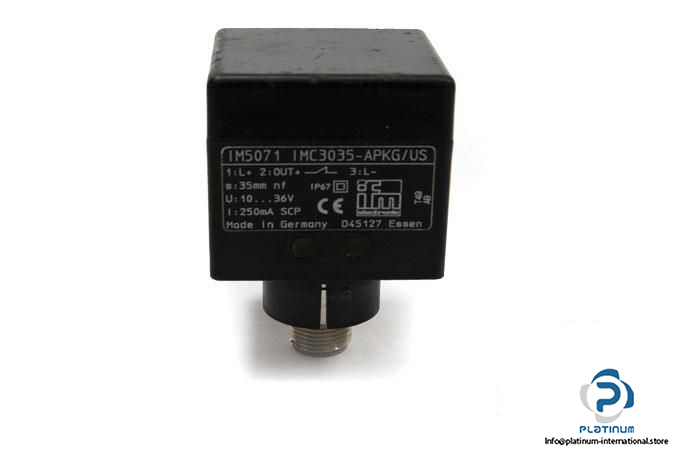

IFM IM5071 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IM5071

MRN: IMC3035-APKG/US

Sensing Range: 35 mm

Real Sensing Range: 35 ± 10% mm

Operating Distance: 0 … 28.3 mm

Operating Voltage: 10 … 36 V DC

Switching output current: 250 mA DC

Current consumption: 20 mA (24V)

Switching frequency: 100 Hz

Electrical design: PNP

Output Function: Normally closed

Connector type: M12 Connector

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 40 x 40 x 66 mm

Material: Housing: PBT; sensing face: PPE

Mounting: Non-flush mountable

Condition: Used
