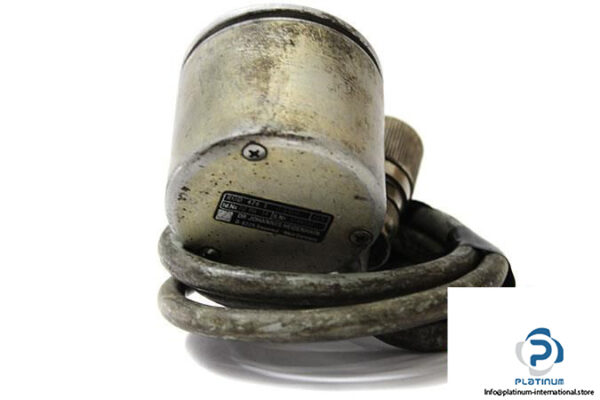

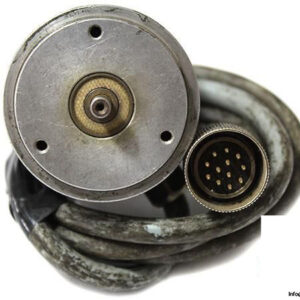

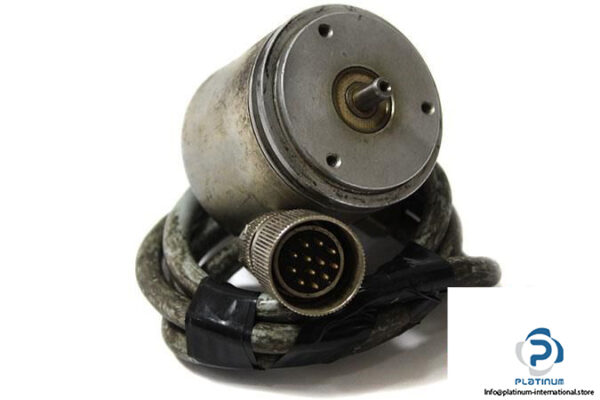

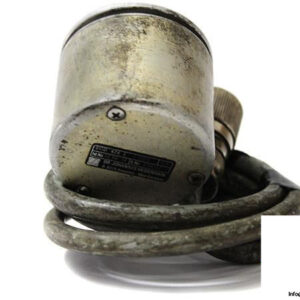

JOHANNES HEIDENHAIN ROD 426 E 2500 INCREMENTAL ENCODER
The ROD 426 E 2500 from JOHANNES HEIDENHAIN is a high-performance incremental encoder designed for precision applications requiring accurate position feedback. Engineered with robust protection and high-speed capability, it is ideal for advanced industrial automation systems.
Manufacturer: JOHANNES HEIDENHAIN
Type: Incremental Encoder
Model: ROD 426 E 2500

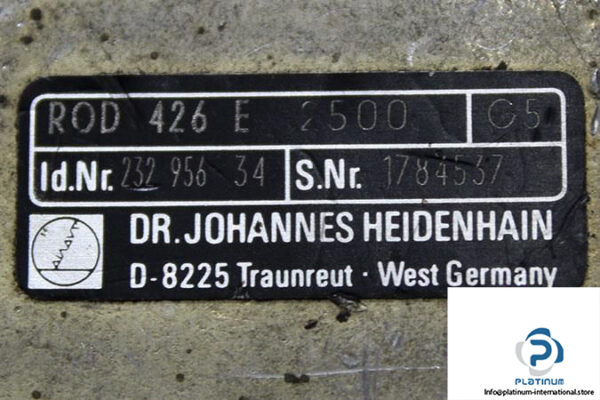

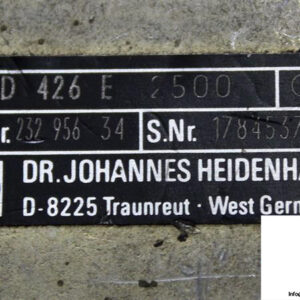

ID No.: 232 956 34
Serial No.: 1784537
Technical Information
- Flange Design: Synchro flange
- Shaft Design: Solid shaft
- Shaft Diameter: 6 mm
- Voltage Supply: 5 VDC
- Resolution: 2500 PPR
- Max. Current Consumption: 120 mA
- Signal Output: TTL (RS 422)
- Max Speed: 16000 rpm
- Max Pulse Frequency: 300 kHz
- Protection Class: IP67 at housing, IP64 at shaft inlet (IP66 upon request)
- Max Temperature: 100 °C
