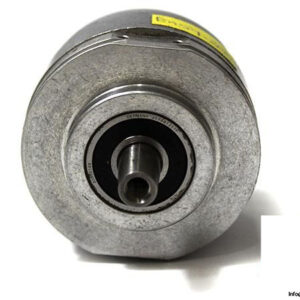

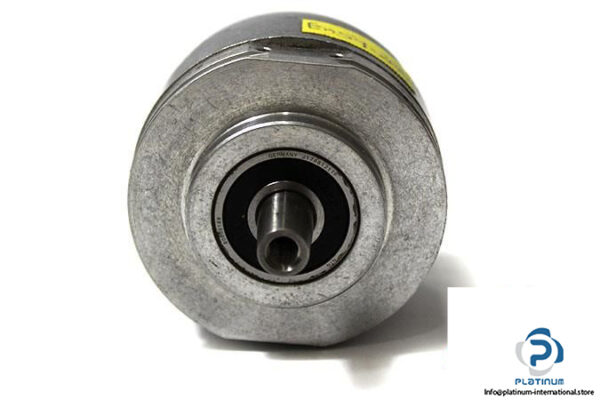

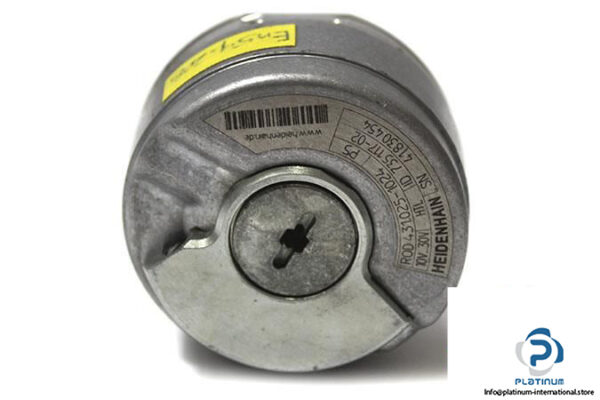

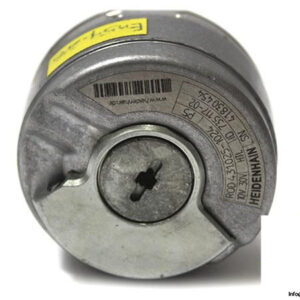

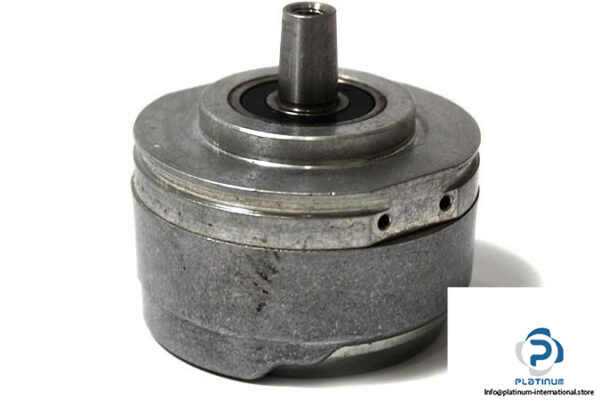

HEIDENHAIN ROD 431.025-1024 INCREMENTAL ENCODER

📋
SKU: 966604

✖ Out of Stock

450,00$

Out of stock


INCREMENTAL ENCODER

HEIDENHAIN ROD 431.025-1024 is a high-speed, high-resolution incremental encoder with a solid 6 mm shaft, IP66 protection, and 1024 PPR output”ideal for precision automation.

Description

HEIDENHAIN ROD 431.025-1024 INCREMENTAL ENCODER

The HEIDENHAIN ROD 431.025-1024 is a precision incremental encoder engineered for high-speed and high-resolution industrial applications. With a robust IP66 rating and push-pull HTL output, it ensures accurate feedback in demanding environments.

Manufacturer: HEIDENHAIN
Type: Incremental Encoder

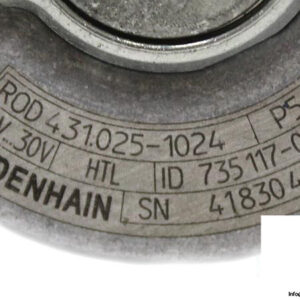

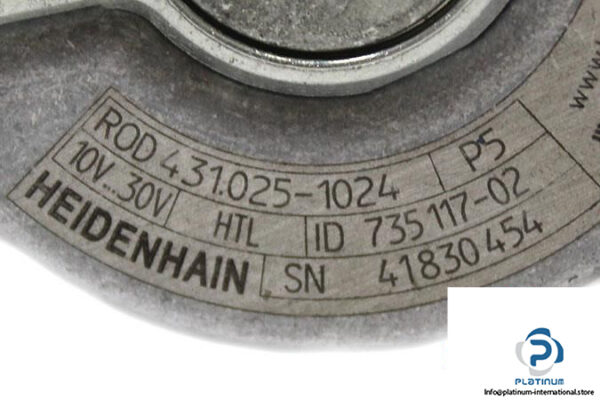

Model: ROD 431.025-1024
ID.Nr.: 735 117-02
Serial No.: 41830454

Technical Information

  • Shaft Design: Solid shaft
  • Shaft Diameter: 6 mm
  • Voltage Supply: 10 / 30 VDC
  • Resolution: 1024 Pulse per Revolution (PPR)
  • Max. Current Consumption: 120 mA
  • Signal Output: Push pull (HTL)
  • Max Speed: 16000 rpm
  • Max. Pulse Frequency: 300 kHz
  • Protection Class: IP 66
  • Max Temperature: 100 °C
