Description

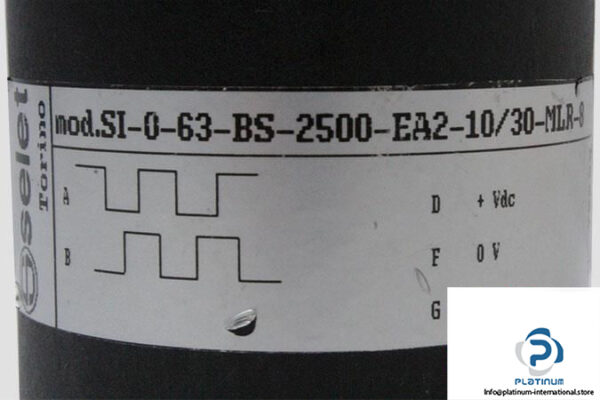

SELET SI-0-63-BS-2500-EA2-10/30-MLR-8 INCREMENTAL ENCODER
The SELET SI-0-63-BS-2500-EA2-10/30-MLR-8 is a high-precision incremental encoder engineered for demanding industrial automation systems. Designed with a square flange and solid shaft, this encoder offers accurate position feedback, excellent resolution, and robust environmental protection.
Manufacturer: SELET
Type: Incremental Encoder
Model: SI-0-63-BS-2500-EA2-10/30-MLR-8
Technical Information

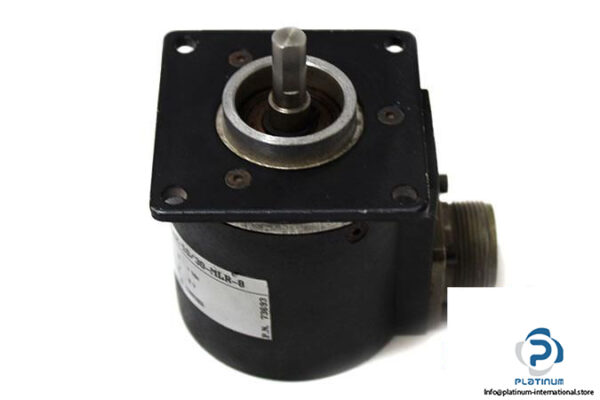

- Flange Type: Square Flange
- Shaft Type: Solid Shaft
- Frame Size Diameter: 63 mm
- Resolution: 2500 pulse per revolution (PPR)
- Voltage Supply: 10 / 30 V DC
- Output Circuits: Push-Pull (HTL)
- Output Frequency: 0 / 100 KHz

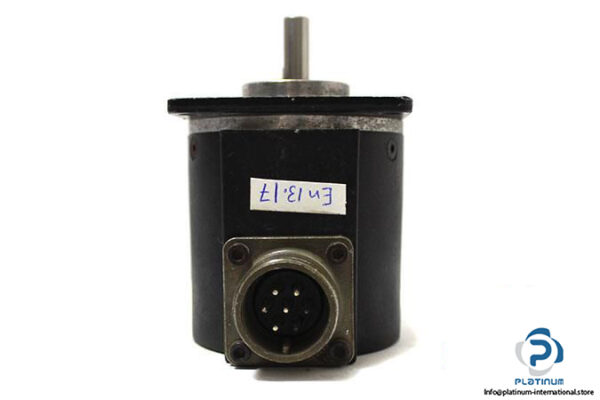

- Connection Type: Radial military connector (7 pins)
- Protection Class: IP65
