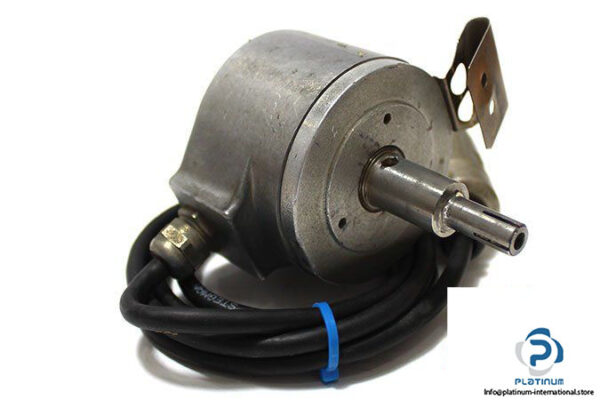

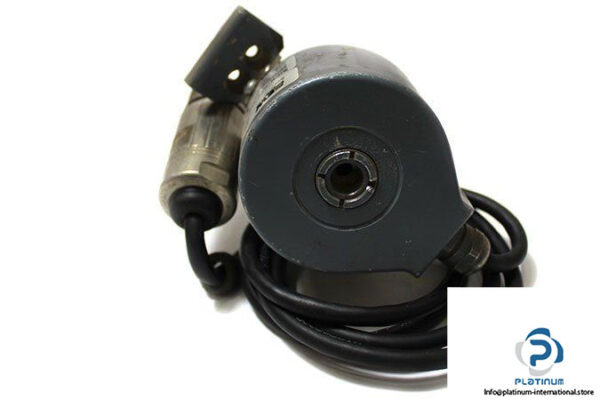

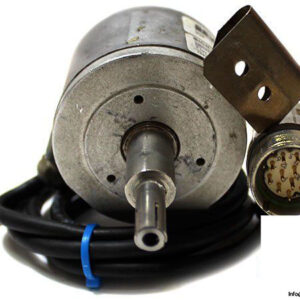

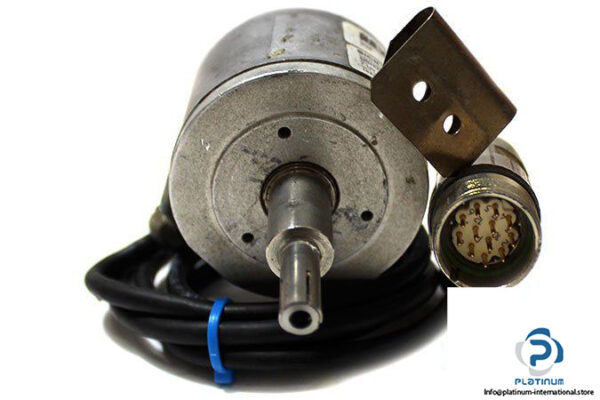

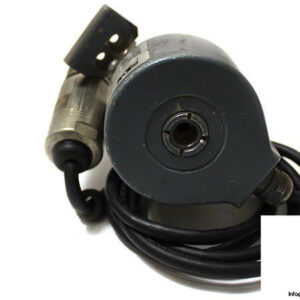

SICK STEGMANN SRM64-HZZ0-S03 / AS3H MOTOR FEEDBACK SYSTEM
The SRM64-HZZ0-S03 / AS3H motor feedback system from SICK STEGMANN “ SEW offers highly precise motion control through high-resolution feedback and binary-coded positioning. It is ideal for demanding servo drive systems requiring real-time feedback with high durability and compact design.
Manufacturer: SICK STEGMANN “ SEW
Type: MOTOR FEEDBACK SYSTEM

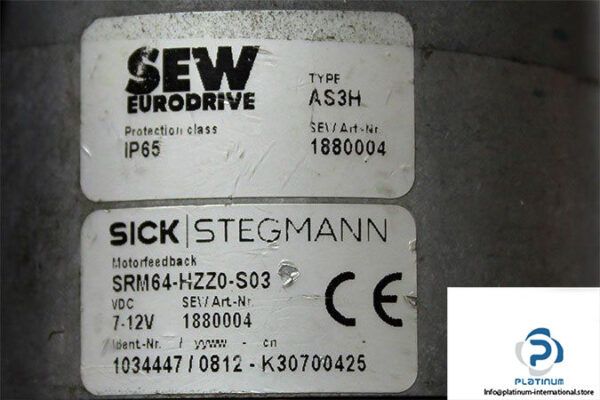

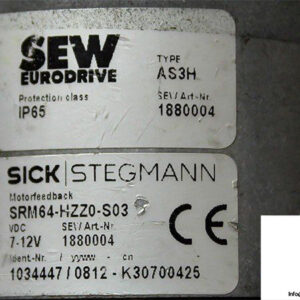

Model: SRM64-HZZ0-S03 / AS3H
Art No: 1880004
Part No: 1034447/0812-K30700425
Technical Information
- Shaft Diameter: 10 mm
- Number of Sine/Cosine Periods Per Revolution: 1024
- Total Number of Steps: 134,217,728 (Multi SRM)
- Voltage Supply: 7 / 12 VDC
- Switching Frequency: 0 / 200 kHz
- Type of Code: Binary
- Consumption: < 80 mA
- Protection Class: IP40
- Temperature: -20 / 85 °C
