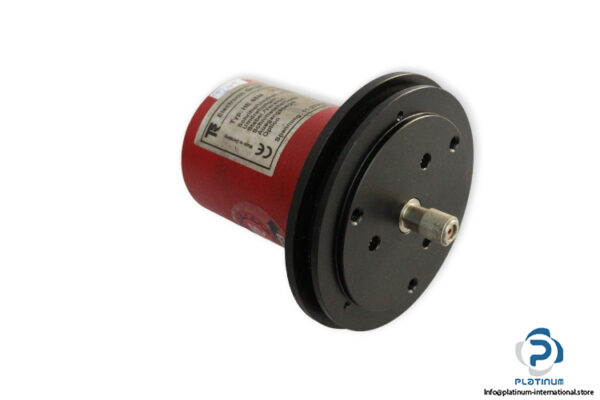

TR HE 65M ABSOLUTE ENCODER

Manufacturer: TR Electronic
Type: Absolute Encoder
Model: HE-65-M
Art No.: 205-00217

Supply Voltage: 11 … 27 VDC
Output Code: Binary
Resolution per revolution: 8192 (13 bit)
No. of revolutions max.: 4096
Version: 1035/V001
Output Capacity: 25 bit
Transmission Rate: 300 kbps
Interface: Two-wire remote bus for INTERBUS-S, RS422 with galvanic isolation
Inputs: V/R (direction of rotation)
“0” < 8 V DC, “1” > 11 V DC, max. 30 V DC
