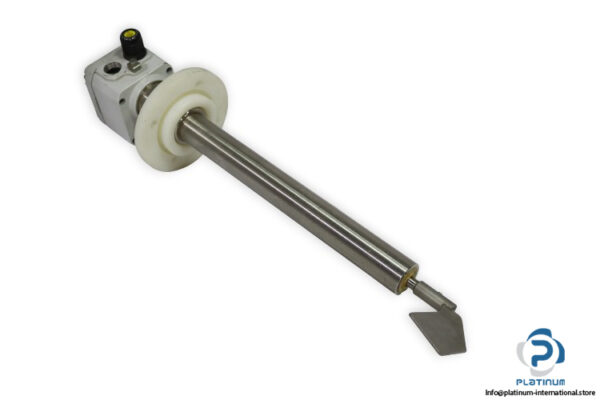

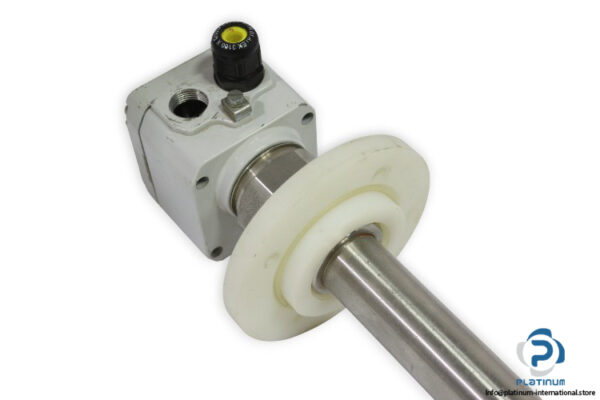

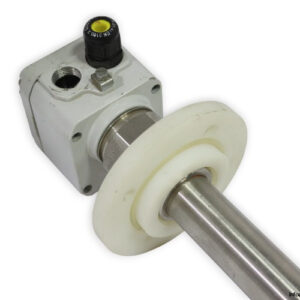

UWT RN3004 Rotary Paddle Level Switch

The UWT RN3004 is a reliable rotary paddle level switch designed for monitoring the level of solids in silos, bins, and hoppers. It ensures accurate level detection and operational safety under various process conditions.

Manufacturer: UWT
Type: Rotary Paddle Level Switch
Model: RN3004 WGRN3 LGRN3D

Technical Information

• Medium: Solids
• Process Pressure: -0.5 / 0.8 bar
• Supply Voltage: 24 V DC / 230 – 115 V AC
• Power Consumption Max.: 3 W / 6 VA
• Material: Stainless Steel
• Flange Size: DN32
• Measuring Tube Length: 400 mm
• Material: Aluminum
• Protection Class: IP66
• Process Temperature: -25 / 80 °C
• Ambient Temperature: -20 / 70 °C

Attachment

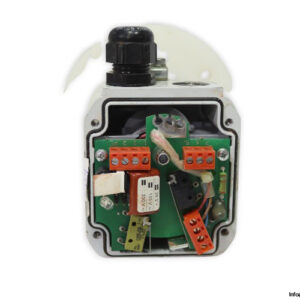

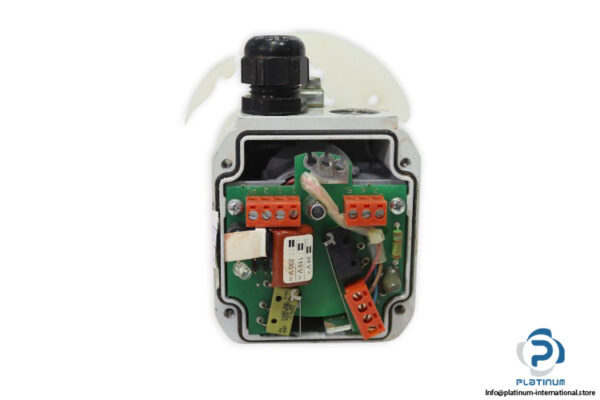

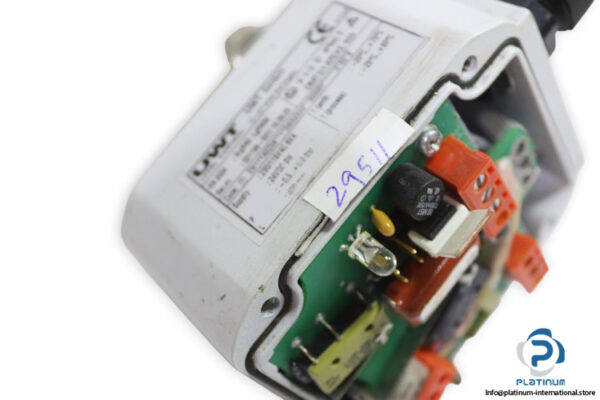

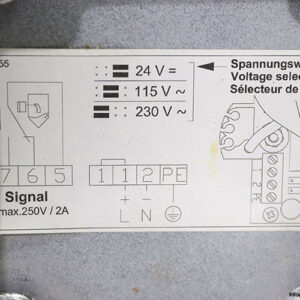

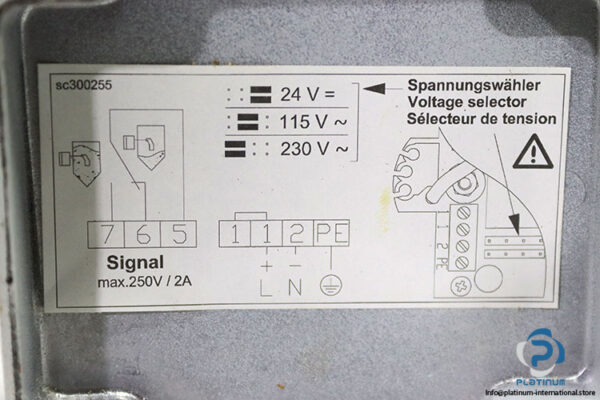

UWT sc300255 Electronic Insert

• Manufacturer: UWT
• Type: Electronic Insert
• Model: sc300255
• Supply Voltage: 24 V DC / 230 – 115 V AC
• Output Relay: SPDT Change-Over (CO)
• Output Voltage: 250 V AC
• Output Current: 2 A
