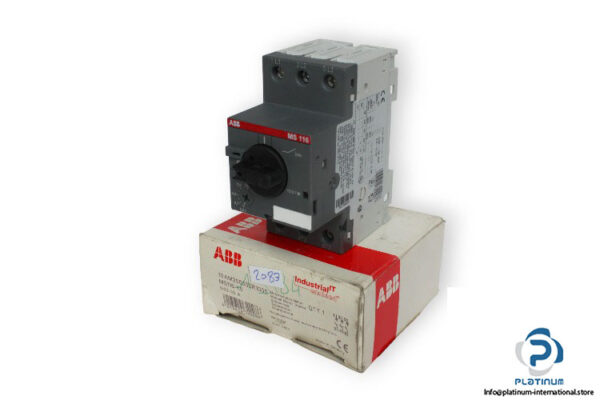

Manufacturer: Abb

Type: Motor Starter

Model: MS116-1.0

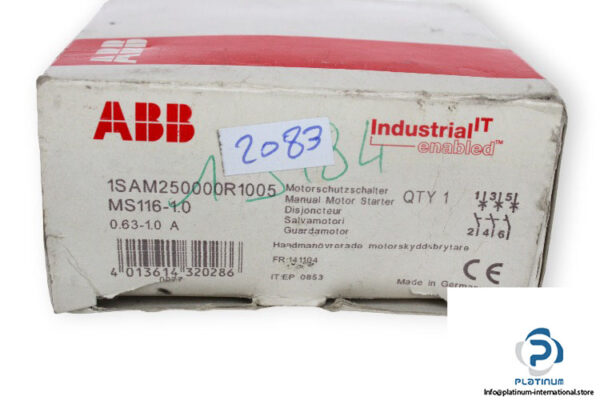

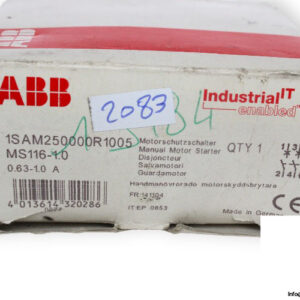

Part No: 1SAM250000R1005

Rated Operational Voltage: Main Circuit 690 V AC

Rated Operational Current (Ie):1 A

Rated Frequency (f): 50/60 Hz

Rated Insulation Voltage (Ui): 690 V

Rated Impulse Withstand Voltage (Uimp): Main Circuit 6 kV

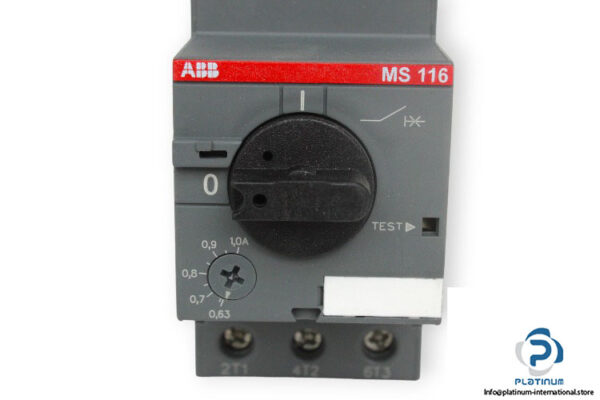

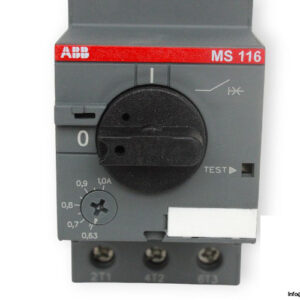

Setting Range: 0.63 … 1.0 A

Power Loss: at Rated Operating Conditions per Pole 0.6 … 1.7 W

Tightening Torque: Main Circuit 10Ib.in

Number of Poles: 3

Terminal Type: Screw Terminals

Operating Temperature: -25 … +70 °C

Degree of protection: Housing IP20, Main Circuit Terminals IP10

Dimensions: 45 x 90 x 85.6 mm
