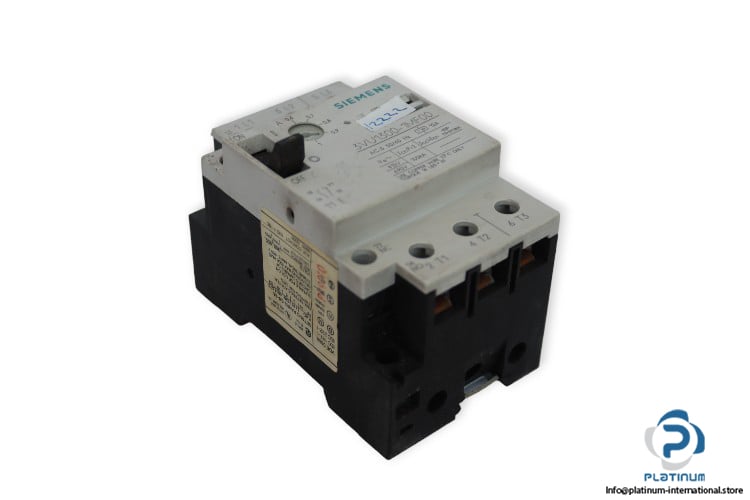

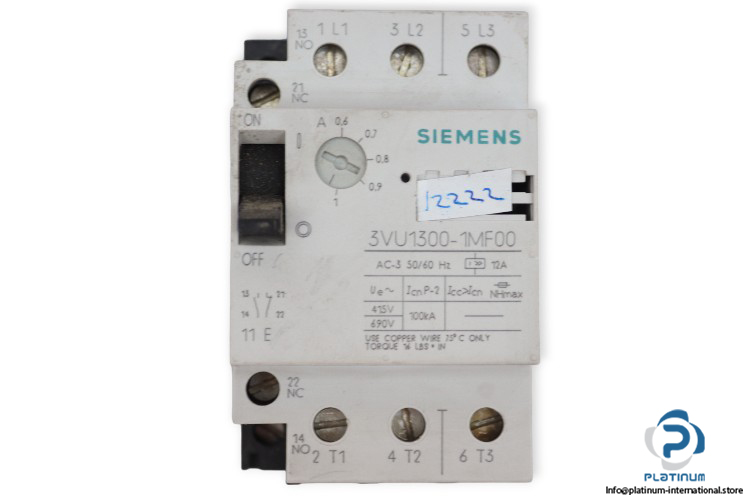

Siemens 3VU1300-1MF00 Circuit Breaker

Manufacturer: SIEMENS
Type: Circuit Breaker
Model: 3VU13001MF00

Short Name: 3VU
Rated Operating Voltage: 600 V AC
Rated Operating Frequency: 50 … 60 Hz
Rated operational current: 25 A
Switching Capacity Current: 0.6 … 1 A
Rated Operating Power AC-3:
220/230 V: 7 kW
240 V: 7.5 kW
380/400 V: 12.5 kW
415 V: 13 kW
500 V: 16 kW
660 V: 22 kW
690 V: 23 kW
Power Loss: 9 W
Poles No.: 3-Poles
Auxiliary Contact: 1 Normally Open (NO) + 1 Normally Closed (NC)
Auxiliary Contact Switch Ratings:
AC-15: 230 – 400 – 500 V AC, 3 – 1.5 – 1.2 A
DC-13: 24 – 60 – 220 V DC, 2.3 – 0.7 – 0.3 A
Service Switching Capacity Max. (Ics): 100 kA
Breaking Switching Capacity Max. (Icu): 100 kA
Protection Class: IP00
Operation Temperature: -20 … 55 °C
Dimensions: 86 x 54 x 60 mm
