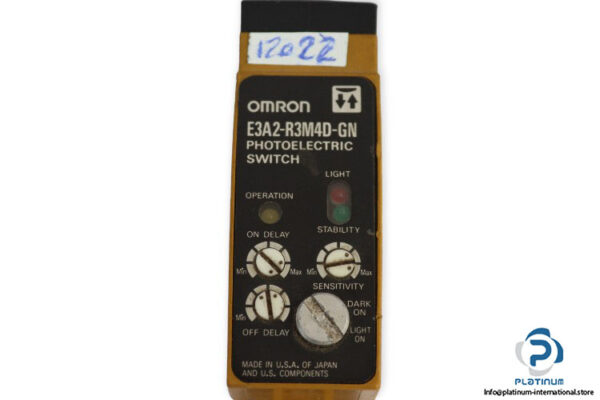

OMRON E3A2-R3M4D-GN RETROREFLECTIVE SENSOR

Manufacturer: OMRON
Type: Retroreflective Sensor
Model: E3A2R3M4DGN

Series: E3A2
Sensing Range: 3 m
Detectable Object Type: Opaque and Mirror Surface Materials, 56 mm
Supply Voltage: 24 … 240 V AC / 12 … 240 V DC
Power Consumption: 1.5 W
Control Output: SPDT
Operation mode: Light-ON/Dark-ON, Switch Selectable
Light Source: Pulse Modulated Red LED, Polarized
Indicators: Light Incident (Red LED) And Output Stability (Green LED)
Wavelength: 680 nm
Connection Type: Connector
Housing Material: Plastic
Protection Class: IP66
Operating Temperature: -25 … 55 °C
Dimensions: 76 x 26 x 57 mm
