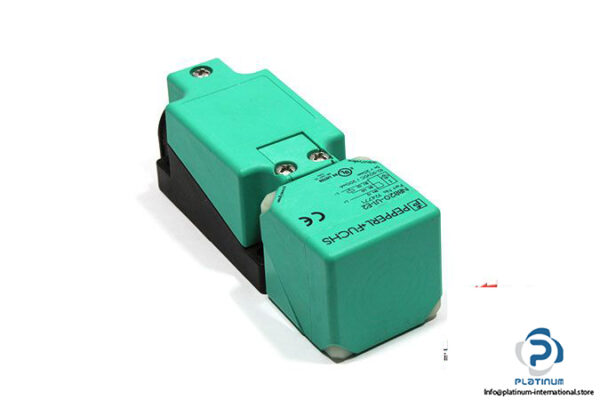

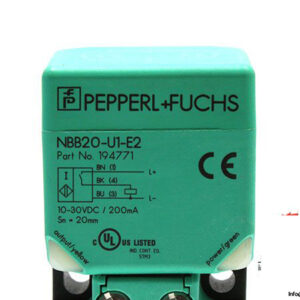

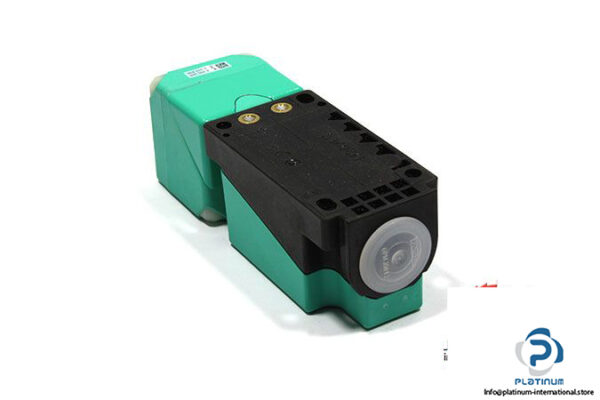

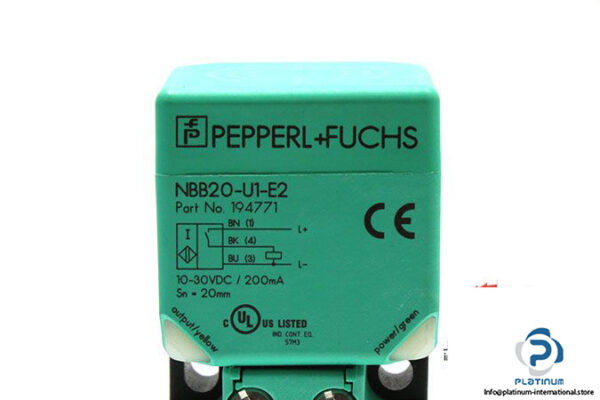

Manufacturer: Pepperl+Fuchs

Type: Inductive Sensor

Model: NBB20-U1-E2

Part No: 194771

Rated Operating Distance: 20 mm

Assured Operating Distance: 0 … 16.2 mm

Operating Voltage: 10 … 30 V DC

Operating Current: ≤ 200 mA

No-Load Supply Current I₀: ≤ 20 mA

Voltage Drop U_d: ≤ 2 V

Signal Output: PNP

Switching Function: Normally Open

Switching Frequency f: 0 … 440 Hz

Installation: Flush

Protection Degree: IP68 / IP69K

Ambient Temperature: -25 … 85 °C

Material: Housing: PA/Metal With Epoxy Powder Coating, Sensing Face: PA

Connection: Screw Terminals

Dimensions: 40 x 40 x 118 mm

Weight: 0.26 kg
