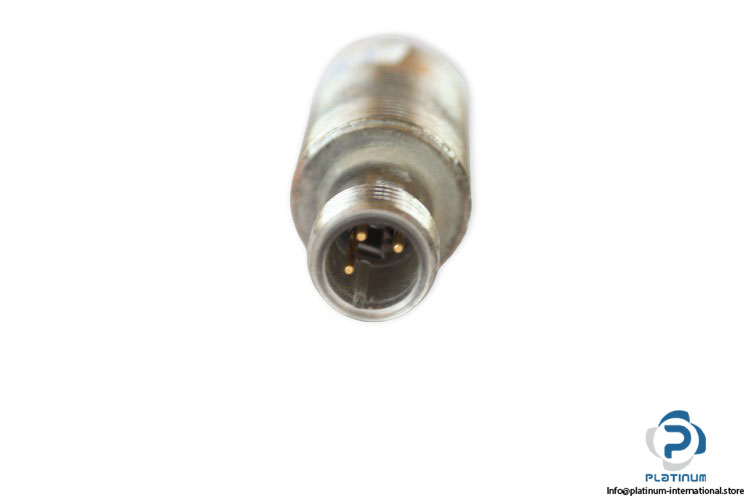

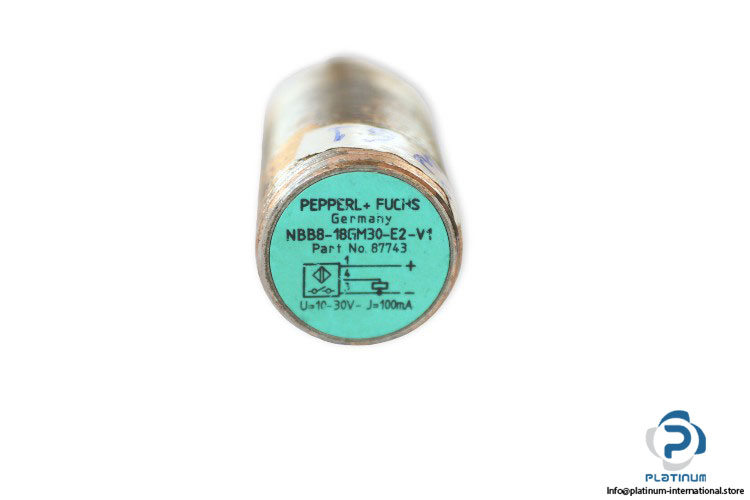

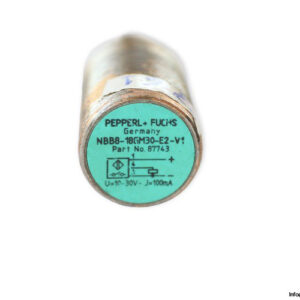

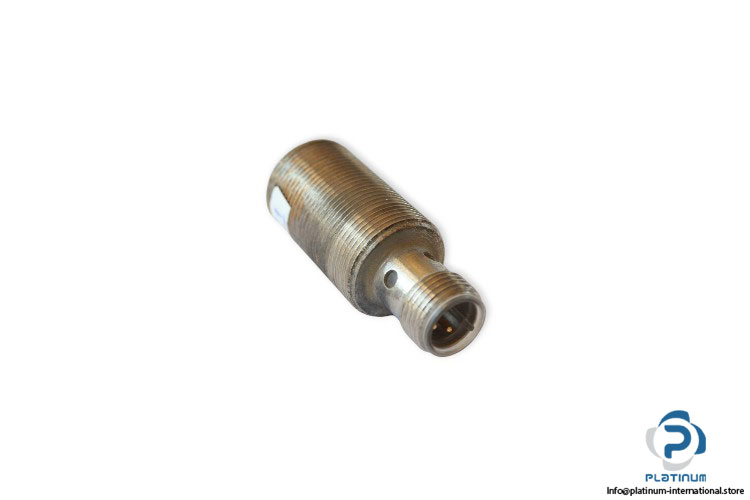

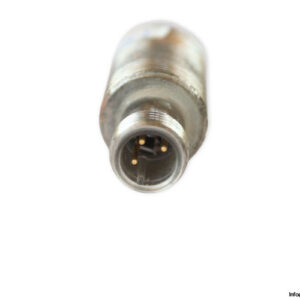

Pepperl+Fuchs NBB8-18GM30-E2-V1 Inductive Sensor
Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model: NBB818GM30E2V1
Part No.: 87743
Rated operating distance: 8 mm
Assured operating distance: 0 … 6.48 mm
Rated insulation voltage Ui: 36 V
Rated impulse withstand voltage Uimp: 500 V
Operating Voltage: 10 … 30 V DC
Operating Current: 100 mA
Switching frequency: 0 … 1350 Hz
Electrical design: PNP
Switching output: Normally open
Connector type: M12 Connector, 3-pin
Protection class: II
Degree of protection: IP65 / IP66 / IP67 / IP68
Ambient Operating temperature: -40 … 85°C
Diameter, housing length: 18 mm, 46 mm
Housing material: brass , white bronze coated
Mounting: Flush-mountable
