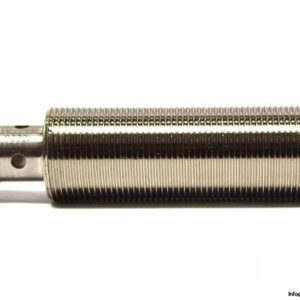

Manufacturer: PEPPERL + FUCHS

Type: INDUCTIVE SENSOR

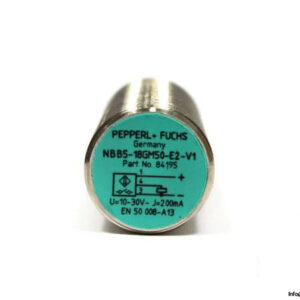

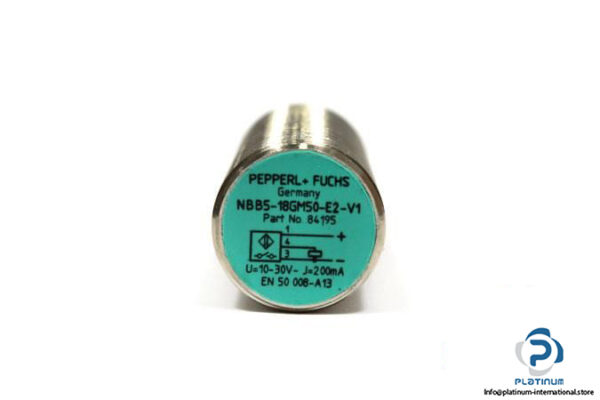

Model No.: NBB518GM50E2V1

Part No.: 84195

Rated Operating Distance: 5 mm

Assured Operating Distance: 0 … 4.05 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching Frequency: 0 … 800 Hz

Electrical Design: PNP

Switching Output: Normally Open

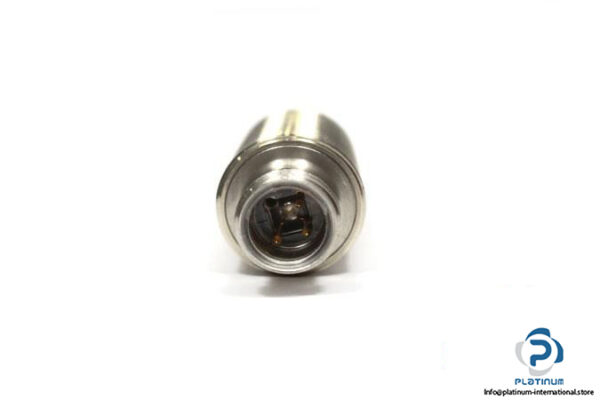

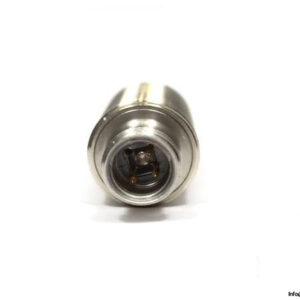

Connector Type: M12 Connector, 3-Pin

Protection Class: II

Enclosure Rating: IP67

Ambient Operating Temperature: -40 … 70°C

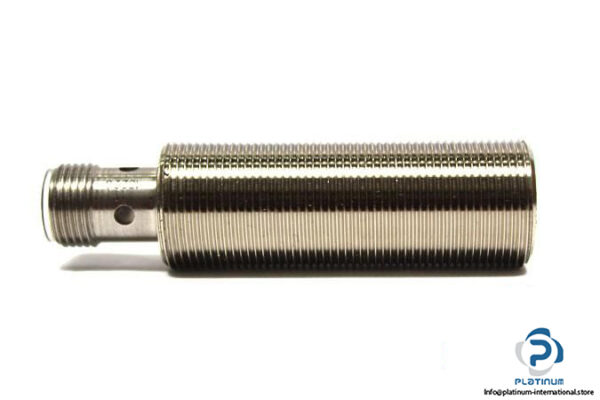

Diameter, Housing Length: 18, 50 mm

Housing Material: Brass, Nickel-Plated

Sensing Face Material: PBT

Mounting: Flush-Mountable

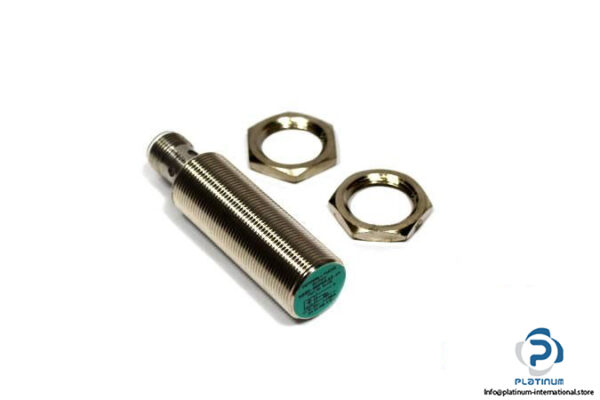

Supplied Accessories: 2 Lock Nuts
