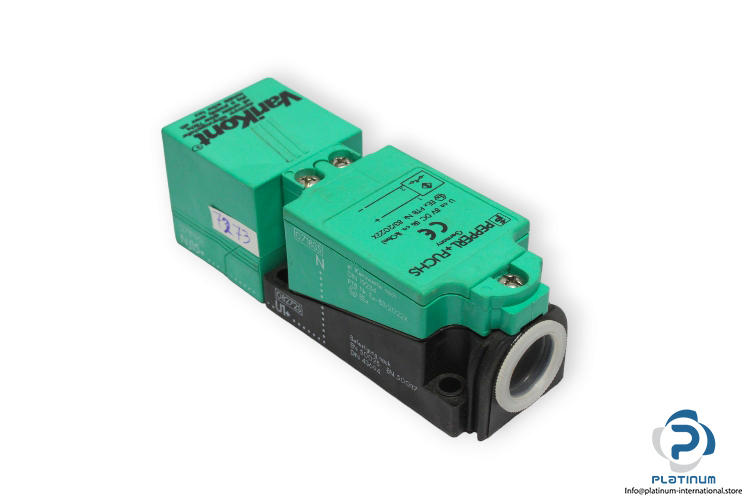

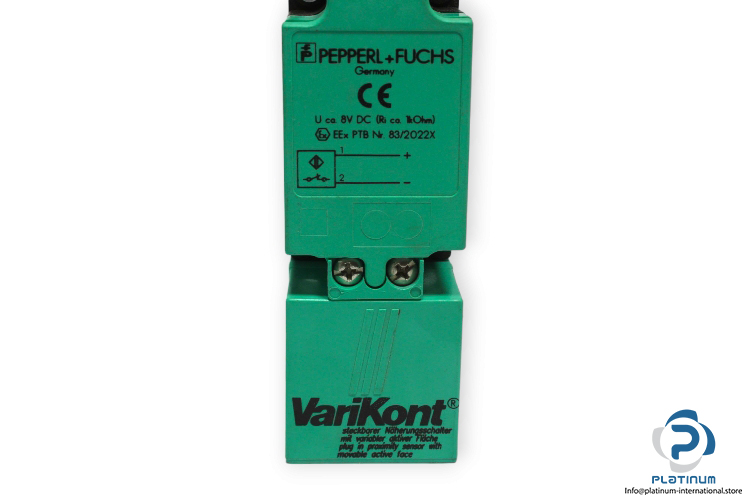

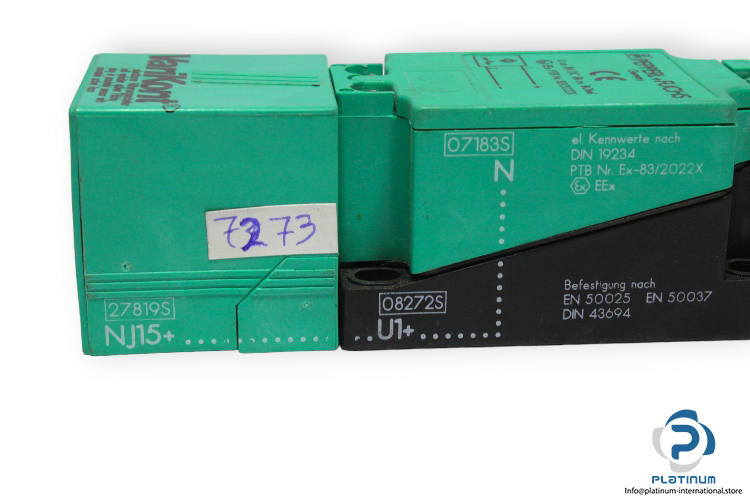

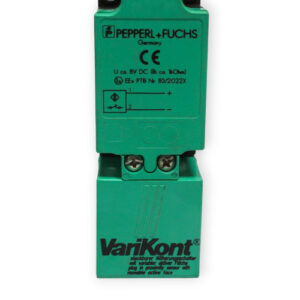

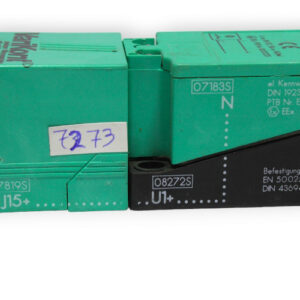

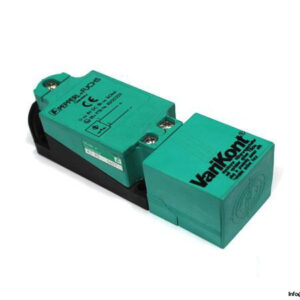

Pepperl+Fuchs NJ15+U1+N Inductive Sensor

Manufacturer: PEPPERL FUCHS
Series: VariKont
Type: Inductive Sensor
Model No.: NJ15U1N

Rated operating distance: 15 mm
Assured operating distance: 0 … 12.15 mm
Operating Voltage: 8 V DC
Switching frequency: 0 … 120 HZ
Switching output: Normally closed
Output type: NAMUR
Current consumption (Measuring plate not detected): min. 3
mA
Current consumption (Measuring plate detected): ≤ 1 mA
Connector type: Terminal compartment
Protection class: II
Enclosure rating: IP68
Ambient Operating temperature: -25 … 100°C
Dimensions: 40 x 40 x 118 mm
Housing material: PBT
Sensing face material: PBT
Mounting: Flush mountable
