Pepperl Fuchs
PEPPERL+FUCHS NBN8-18GM50-E2-V1 INDUCTIVE SENSOR
35,00$
Manufacturer: PEPPERL FUCHS
Type: Inductive Sensor
Model: NBN818GM50E2V1
Part No.: 84197
Availability: 3 in stock
Only 3 items left. *Delivery time: 3-5 business days. *Express delivery: Worldwide delivery by FedEX/DHL express courierManufacturer: PEPPERL FUCHS
Type: Inductive Sensor
Model: NBN818GM50E2V1
Part No.: 84197
Rated operating distance: 8 mm
Assured operating distance: 0 … 6.48 mm
Operating Voltage: 10 … 30 V DC
Operating Current: 200 mA
Switching frequency: 0 … 500 Hz
Electrical design: PNP
Switching output: Normally open

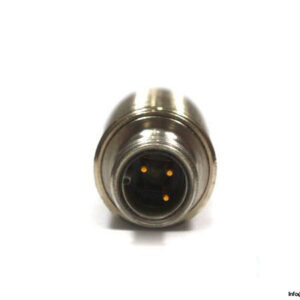

Connector type: M12 connector, 3-pin
Protection class: II
Enclosure rating: IP67
Ambient Operating temperature: -25 …70°C
Diameter, housing length: 18, 55 mm
Housing material: Brass, nickel-plated
Sensing face material: PBT
Mounting: Non-flush mountable
upplied accessories: 2 lock nuts
| Condition | New |
|---|---|
| Manufacturer | Pepperl+Fuchs |
| Type of Product | Inductive Sensor |
| Shelf No. | 240605 |
| Model | NBN8-18GM50-E2-V1 |
| Part No. | 84197 |
