Pepperl+Fuchs NCN4-12GM35-N0 70133045 Inductive Sensor
New
In stock1 unitReady to ship
Pepperl+Fuchs Inductive Sensor NCN412GM35N0 with a 4 mm sensing range, NAMUR output, and normally closed switching output. Designed for reliable performance in various industrial applications.
4CableClosedHousingInductiveIndustrialmmNamurNormallyOutputPepperl+FuchsProximityPVCRangeSensingSensorstainlessSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

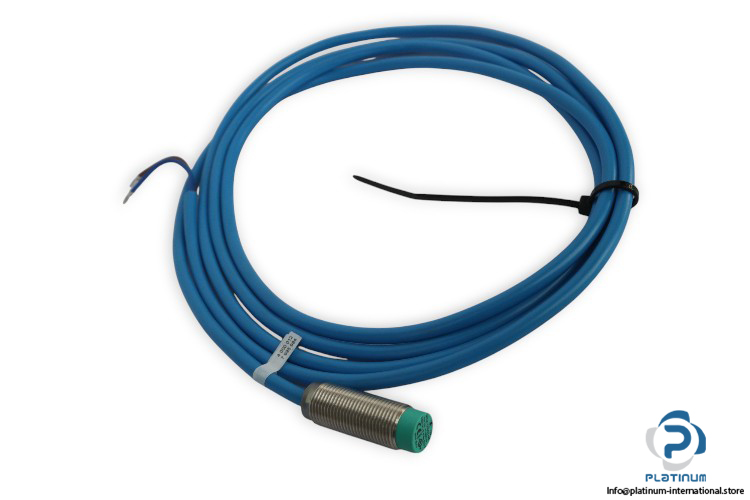

Pepperl+Fuchs Inductive Sensor NCN412GM35N0
Pepperl+Fuchs Inductive Sensor NCN412GM35N0 is a high-quality, reliable sensor designed for precise object detection in industrial applications. With a sensing range of 4 mm, this sensor offers outstanding performance in challenging environments. Below are the key technical specifications:
- Manufacturer: Pepperl+Fuchs
- Type: Inductive Sensor
- Model: NCN412GM35N0
- Part No.: 70133045
Technical Data:
- Sensing Range: 4 mm
- Operating Voltage: 8.2 V DC
- Output Type: NAMUR
- Switching Output: Normally closed
- Current Rating: ‰¤ 1 mA
- Mounting: Non-flush
- Housing Material: Stainless steel
- Connection Type: Cable, 2 m, PVC
- Operating Temperature: -25 to 100 degrees Celsius
- Dimensions: Diameter 12 x length 35 mm
