SKF H 2328 Adapter Sleeve
Manufacturer: SKF
Type: Adapter sleeve H
Model: H2328

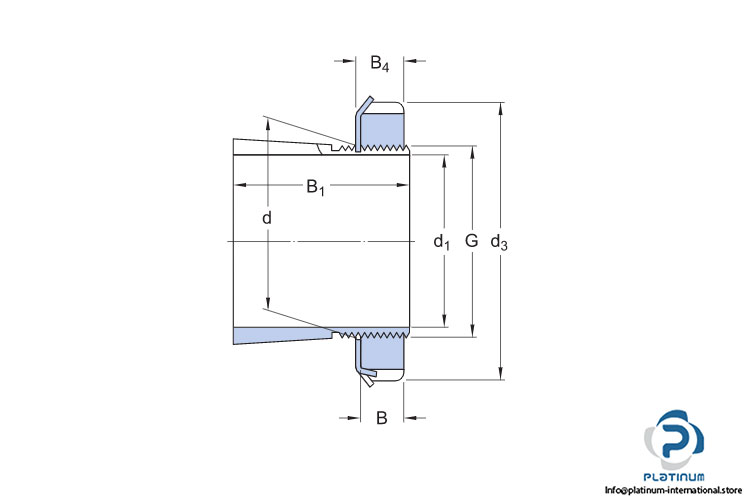

Dimensions:
Bore Diameter d1: 125 mm
Outside diameter small taper d: 140 mm
Outer diameter lock nut d3: 180 mm
Sleeve length B1: 131 mm
Width lock nut including lock washer B4: 24 mm
Thread G: M140x2
External taper: 1:12
Locknut: KM28
Lock washer: MB28
