FAG H220 Adapter Sleeve
Manufacturer: Schaeffler FAG
Type: Adapter sleeve H
Model: H 220

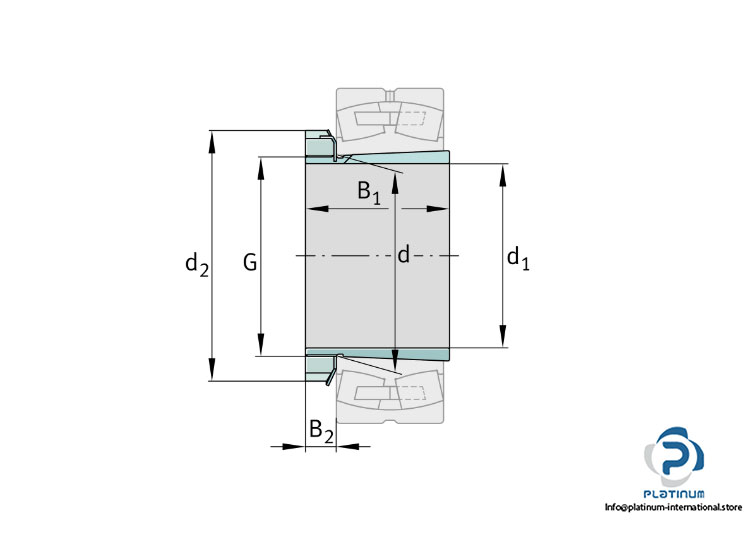

Dimensions:
Bore Diameter d1: 90 mm
Sleeve length B1: 58 mm
Bore diameter bearing d: 100 mm
Outer diameter nut d2: 130 mm
Width nut and lock B2: 19.75 mm
Thread G: M100x2
Taper: 1:12
Locknut: KM20
Fuse: MB20
