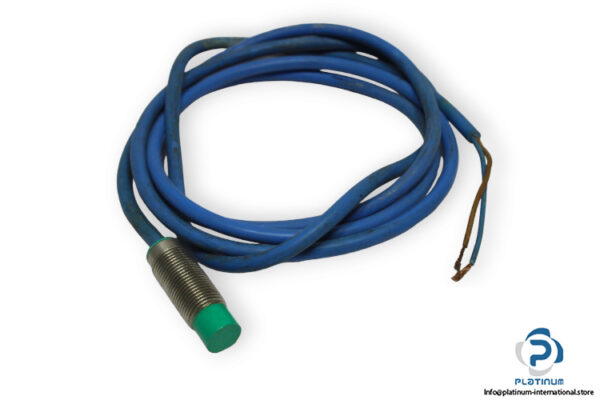

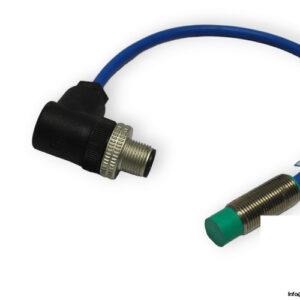

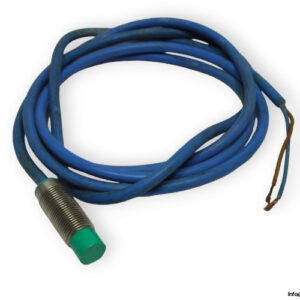

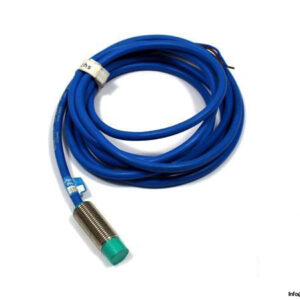

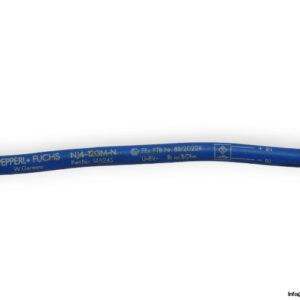

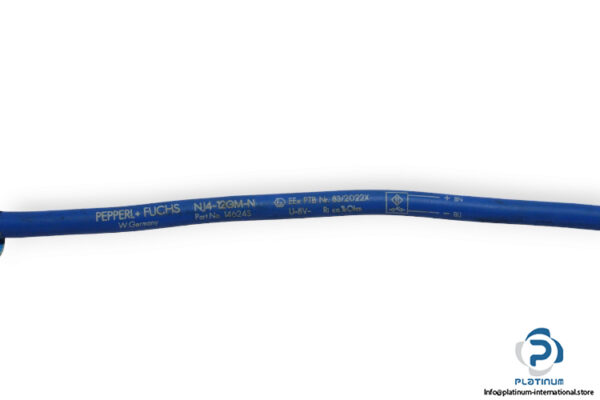

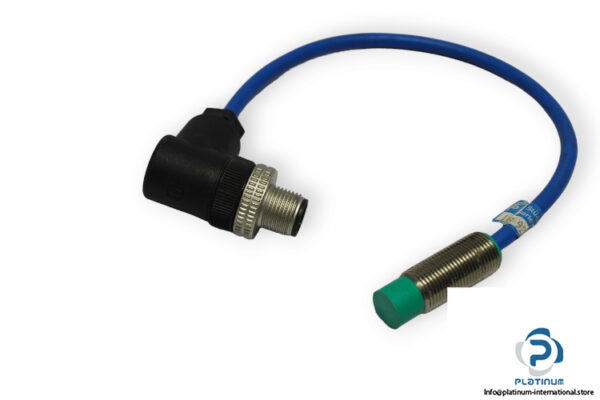

PEPPERL+FUCHS NJ4-12GM-N INDUCTIVE SENSOR
Availability: 4 in stock
Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model: NJ4-12GM-N
Part No.: 14624S
Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model: NJ4-12GM-N
Part No.: 14624S
Rated operating distance: 4 mm
Assured operating distance: 0 … 3.24 mm
Operating Voltage: 8 V DC
Current consumption (Measuring plate not detected): ≥ 3 mA
Current consumption (Measuring plate detected): ≤ 1 mA
Switching frequency: 0 … 1500 Hz
Switching output: Normally closed
Output type: NAMUR

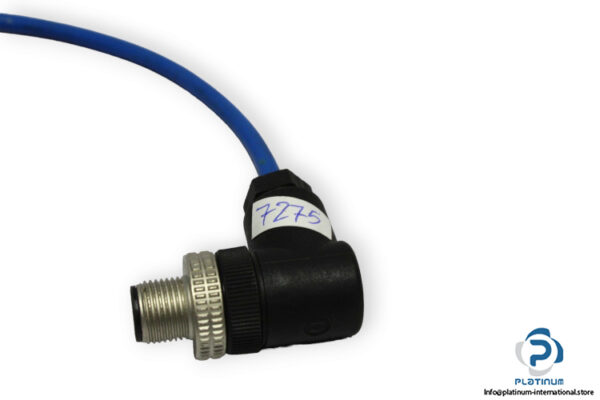

Connector type: Cable with connector
Protection class: II
Enclosure rating: IP67
Ambient Operating temperature: -25 … 100°C
Diameter, housing length: 12, 34 mm
Housing material: Stainless steel
Sensing face material: PBT
Mounting: Non-flush mountable
| Weight | 0,04 kg |
|---|---|
| Condition | Used |
| Manufacturer | Pepperl+Fuchs |
| Type of Product | Inductive Sensor |
| Model | NJ4-12GM-N |
| Shelf No. | 231105 |
| Part No. | 14624S |
