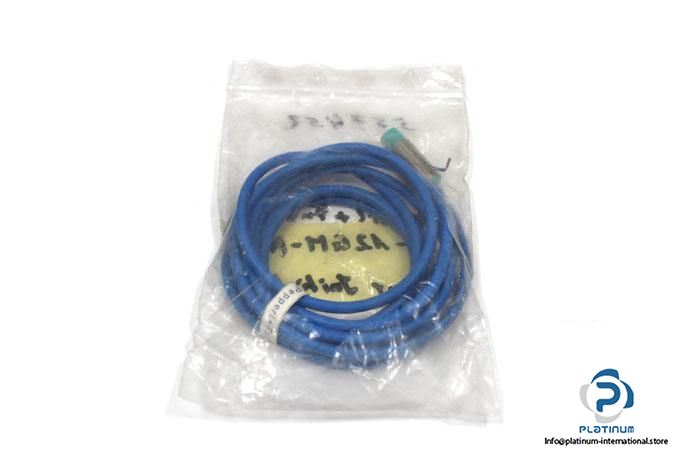

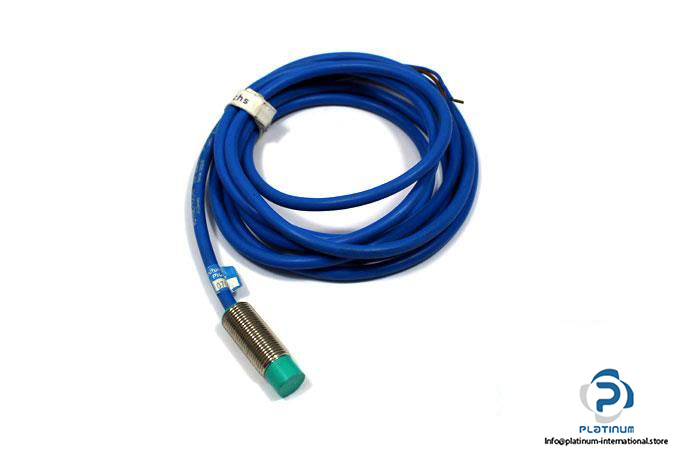

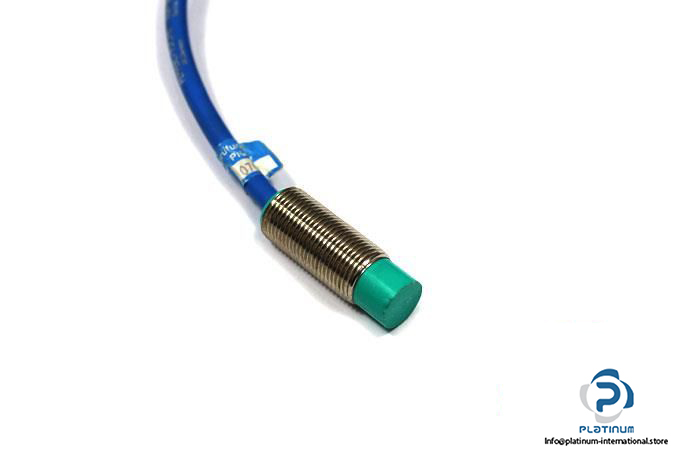

Pepperl+Fuchs NJ4-12GM-N Inductive Sensor
Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model: NJ4-12GM-N
Part No.: 16424S
Rated operating distance: 4 mm
Assured operating distance: 0 … 3.24 mm
Operating Voltage: 8 V DC
Current consumption (Measuring plate not detected): ≥ 3 mA
Current consumption (Measuring plate detected): ≤ 1 mA
Switching frequency: 0 … 1500 Hz
Switching output: Normally closed
Output type: NAMUR
Connector type: Cable with connector
Protection class: II
Enclosure rating: IP67
Ambient Operating temperature: -25 … 100°C
Diameter, housing length: 12, 34 mm
Housing material: Stainless steel
Sensing face material: PBT
Mounting: Non-flush mountable
