Manufacturer: ABBA

Type: Linear Guideway Block BRC

Model: BRC 20 A0

Size: 20 mm

Block Type: Flanged block, Standard length, Standard height

Preload class: Z1, Light preload

Accuracy class: N

End Cap Type: End cap with Self-lubricant part

Basic Load Ratings:

Dynamic C: 1400 kgf

Static C₀: 2400 kgf

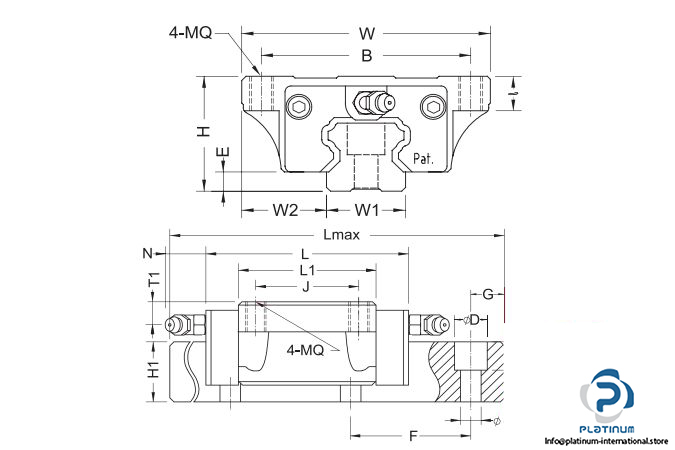

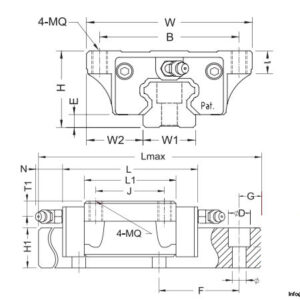

Dimensions

Total Height H: 30 mm

Block Width W: 63 mm

Block Length L: 77.8 mm

Weight: 0.42 kg
