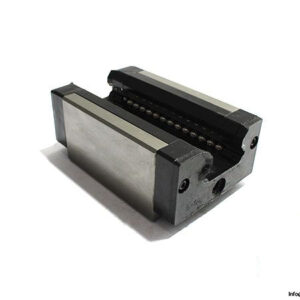

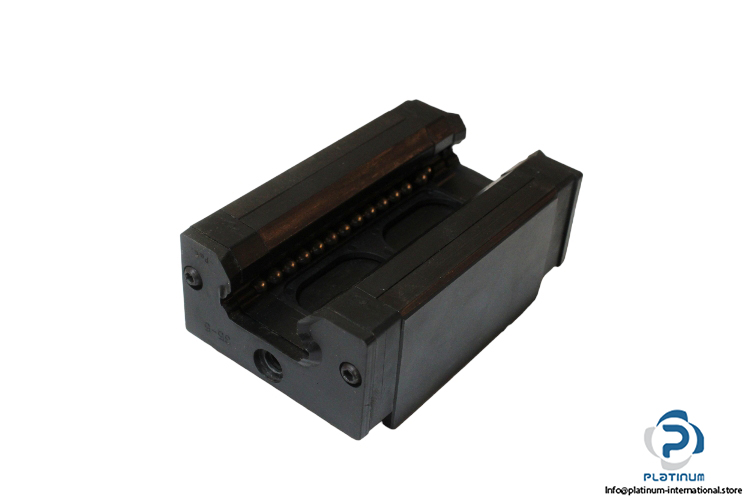

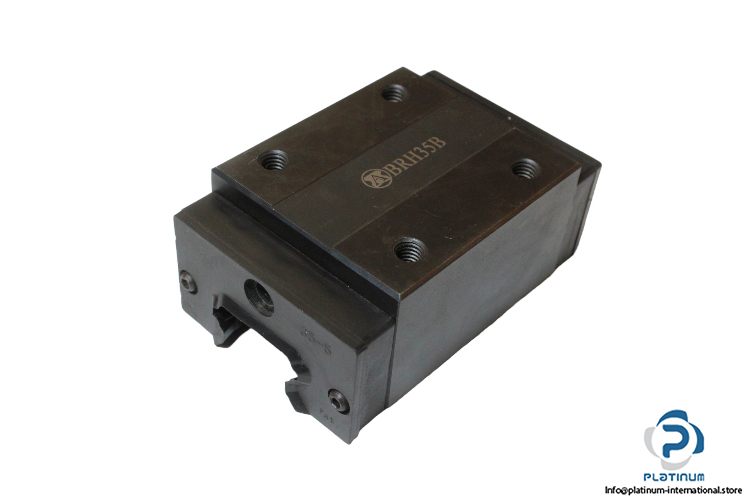

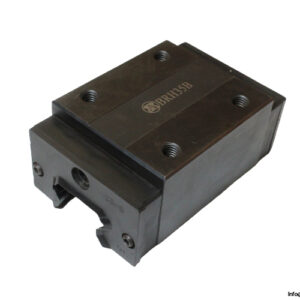

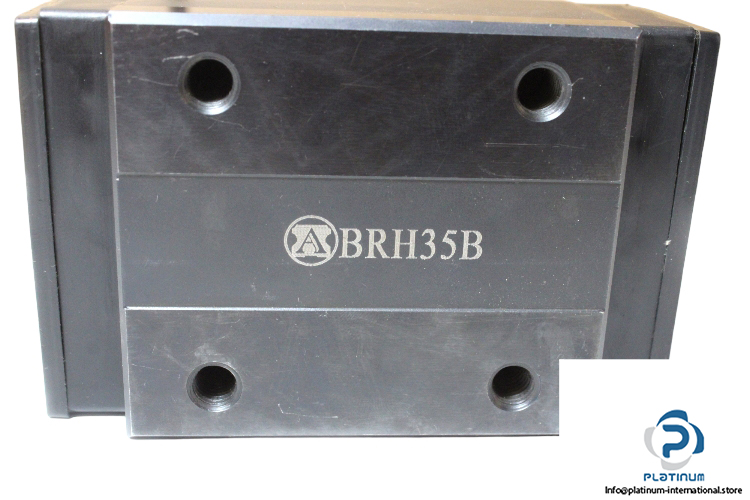

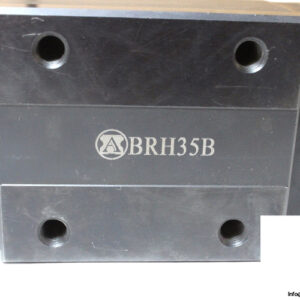

Abba BRH35B Linear Guideway Block

Manufacturer: ABBA

Type: Linear Guideway Block BRH

Model:  BRH 35B

Alternative Part no.: BRD35R0

Size: 35 mm

Block Type: Slim-line block, Standard length, Extended height

Basic Load Ratings:

Dynamic C: 3960 kgf

Static C₀: 7010 kgf

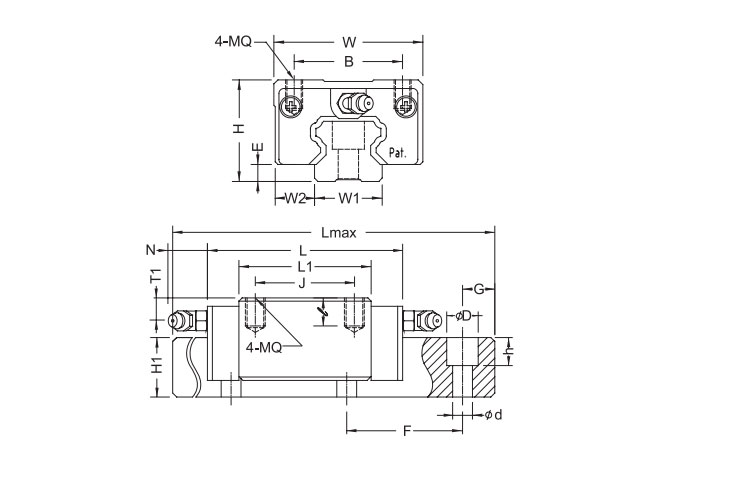

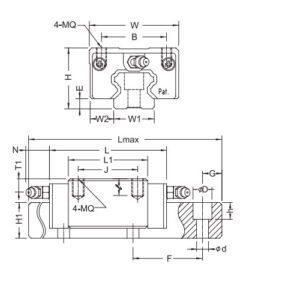

Dimensions

Total Height H: 55 mm

Block Height: 45.5 mm

Block Width W: 70 mm

Block Length L: 109 mm

B: 50 mm

J: 50 mm
