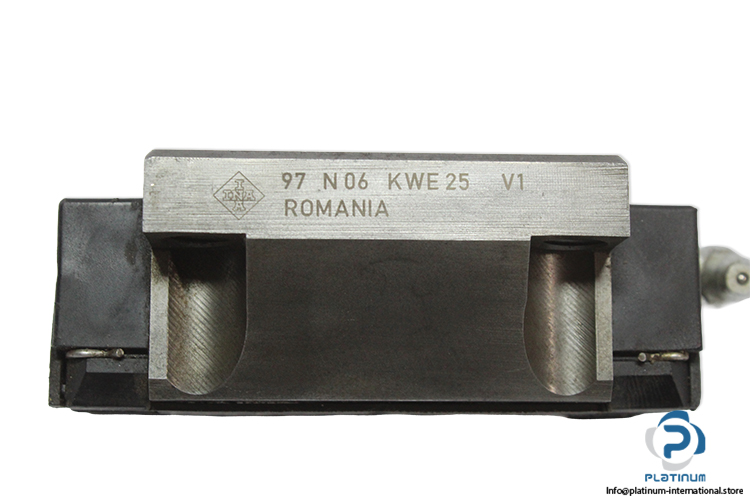

INA KWE25-V1-G3 Recirculating Ball Bearing Carriage
Used
In stock2 unitsReady to ship
Linear Bearing Carriage
INA KWE25 G3 V1 two-row linear recirculating ball bearing carriage with 25 mm size, V1 preload, and G3 accuracy for high-precision motion systems. Ideal for CNC machinery, automation equipment, and heavy-duty linear guide applications.25mmBallbearingCarriageCNCG3GuideInaIndustrialKWE25LinearMotionPrecisionRecirculatingSchaefflerSystemV1
New
Available on request 50,00$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

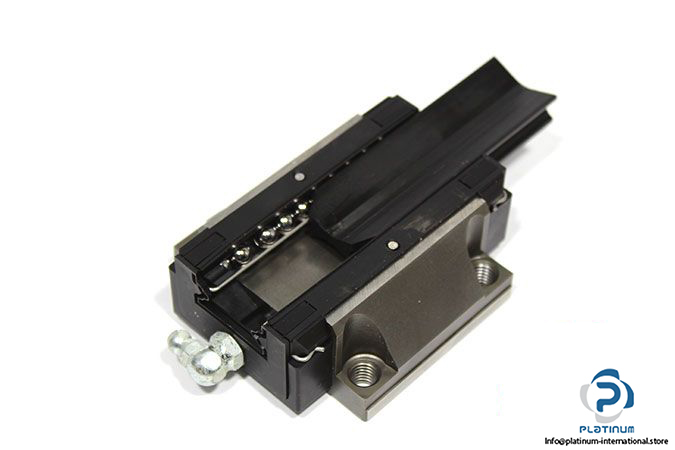

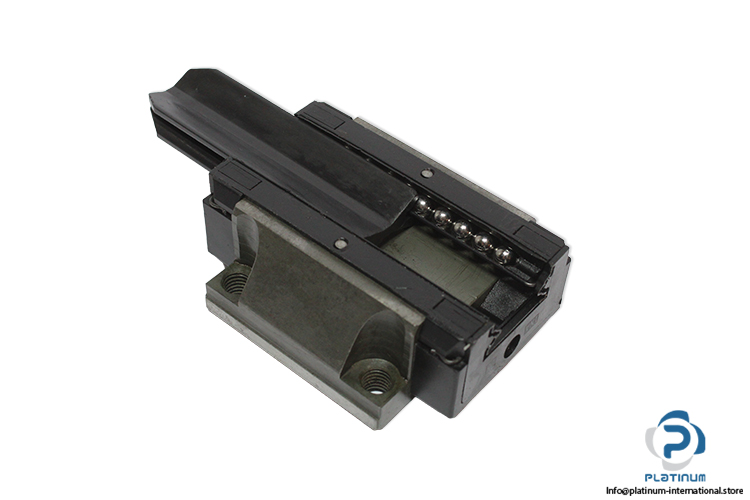

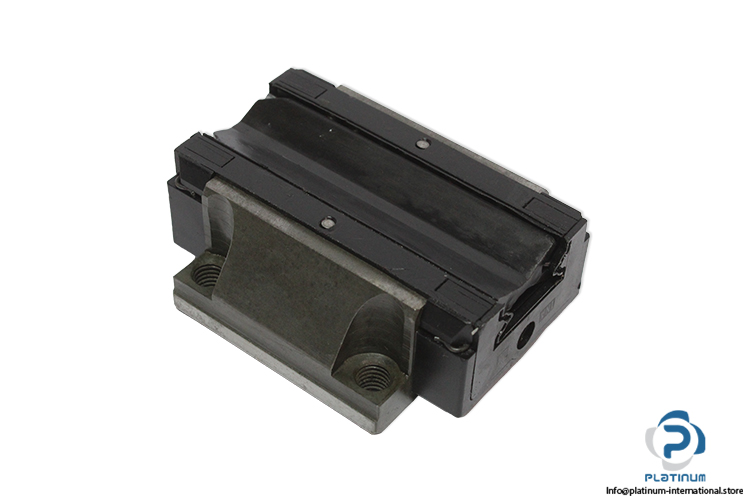

INA KWE25 G3 V1 Linear Recirculating Ball Bearing Carriage
The INA KWE25 G3 V1 is a two-row linear recirculating ball bearing carriage engineered for high load capacity, rigidity, and precision linear motion applications in industrial automation systems.
Manufacturer: INA / Schaeffler
Type: Two-Row Linear Recirculating Ball Bearing Carriage
Model: KWE25 G3 V1
Size: 25 mm
Recommended for CNC machines, automation systems, and precision linear guide assemblies requiring high rigidity and load capacity.
Please contact us via Ask for assistance with any inquiries.
| Basic Dynamic Load Rating (C) | 17,900 N |
| Basic Static Load Rating (C0) | 37,000 N |
| Static Moment Rating About X Axis (M0x) | 510 Nm |
| Static Moment Rating About Y Axis (M0y) | 395 Nm |
| Static Moment Rating About Z Axis (M0z) | 395 Nm |
| Preload | V1 |
| Accuracy Class | G3 |
| Height System (H) | 36 mm |
| Width Carriage (A) | 70 mm |
| Overall Length Carriage (C) | 83.3 mm |

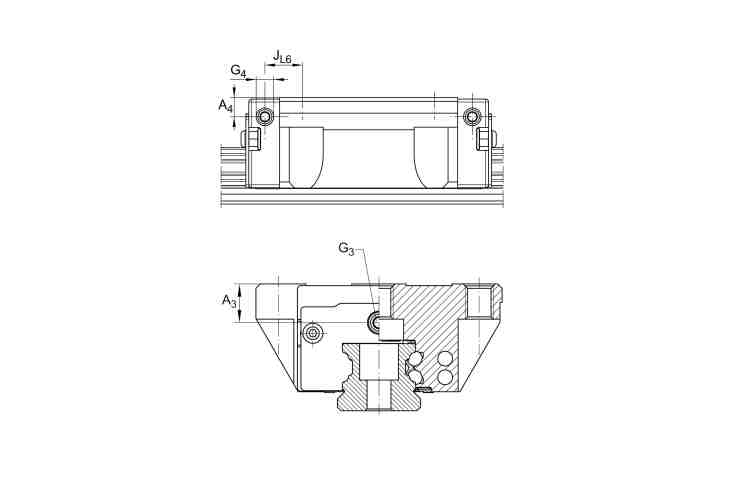

| A1 | 23.5 mm |
| A3 | 11 mm |
| A4 | 6.5 mm |

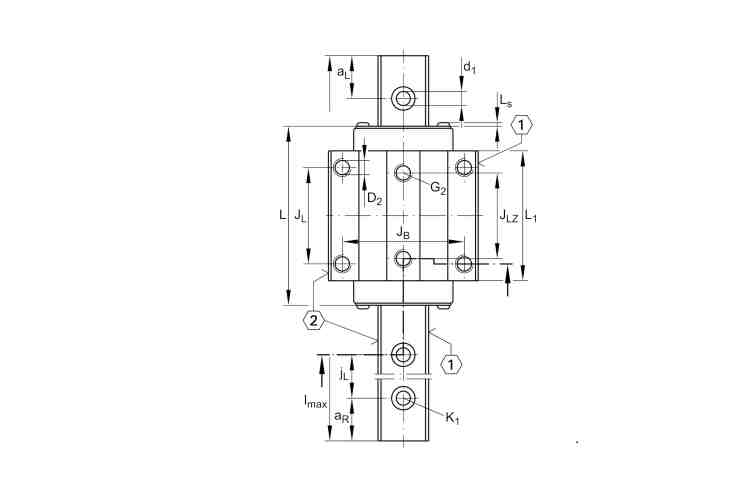

| JB | 57 mm |
