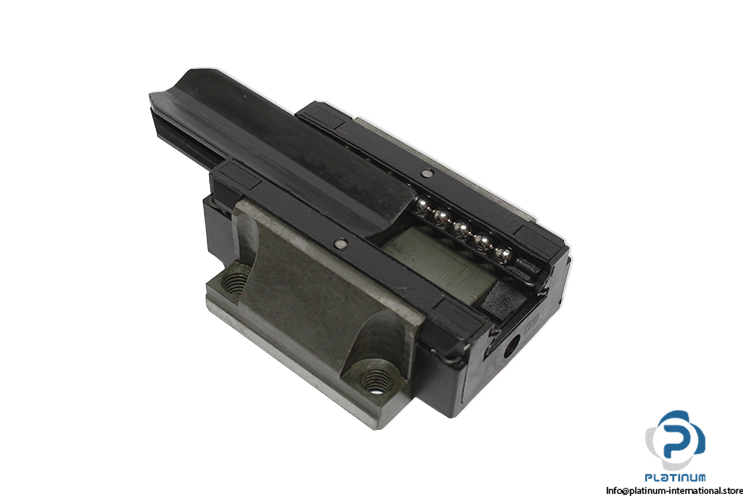

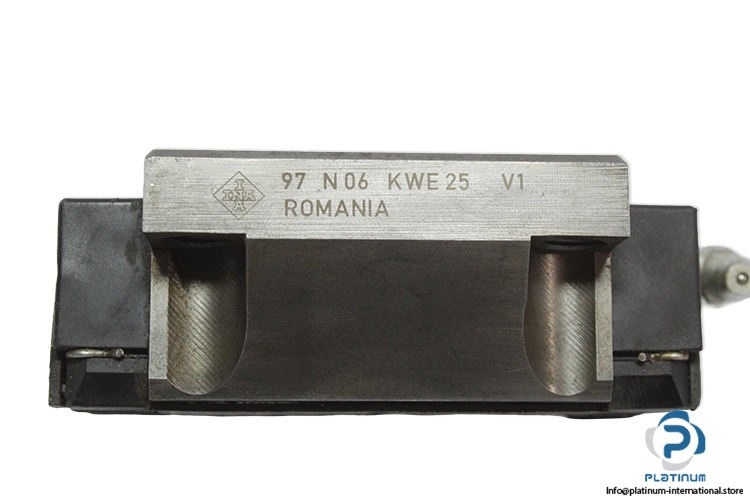

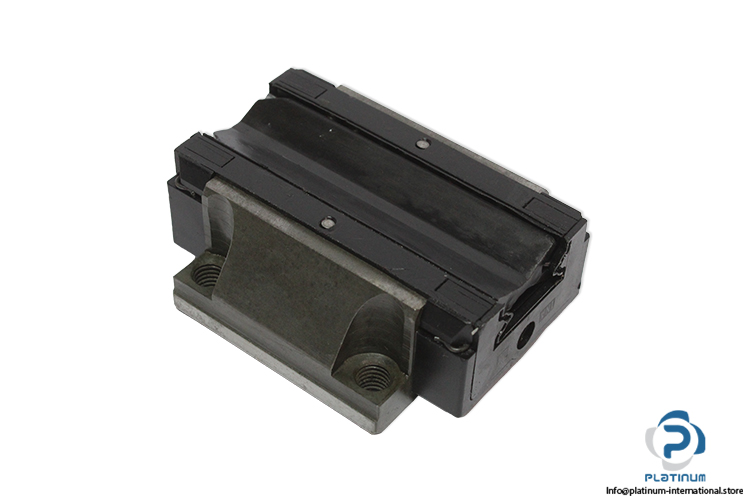

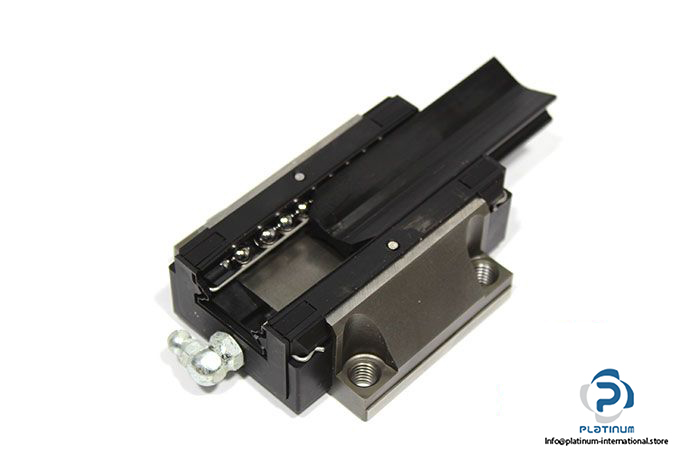

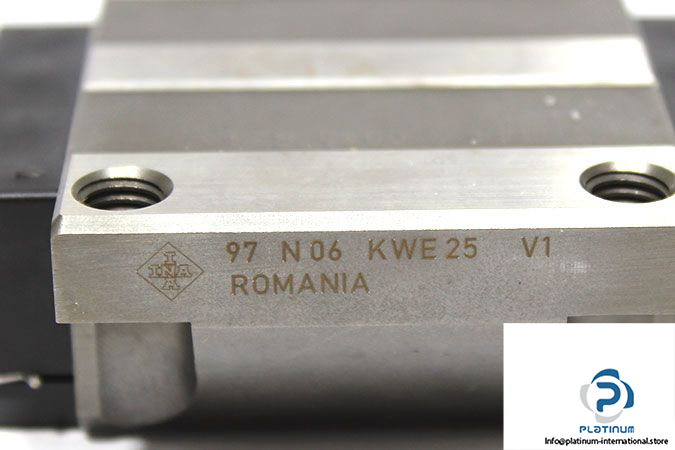

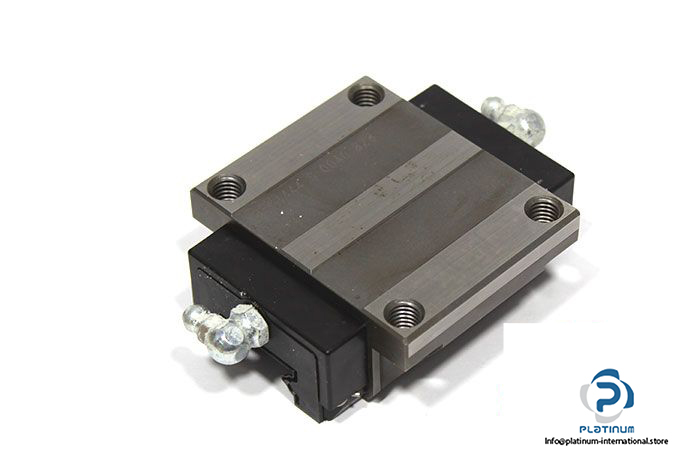

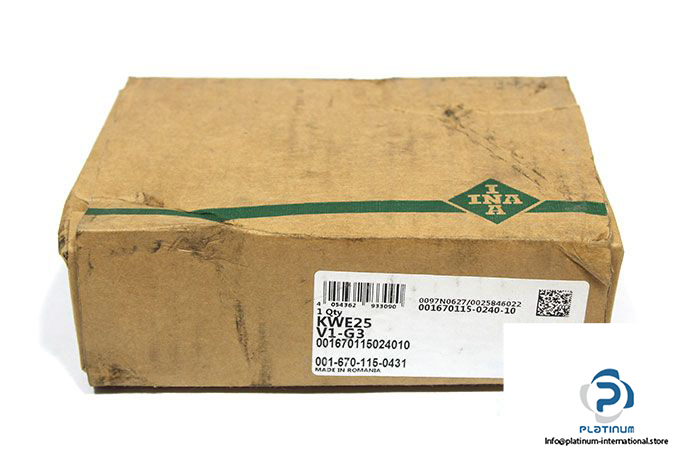

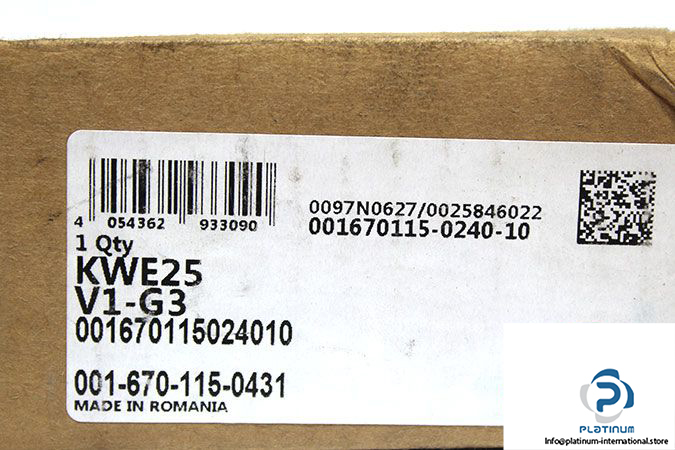

INA KWE25-V1-G3 Recirculating Ball Bearing Carriage
New
Available on request
50,00$
Linear Bearing Carriage
INA KWE25 G3 V1 two-row linear recirculating ball bearing carriage designed for precision motion systems, offering high load capacity, G3 accuracy, and V1 preload for smooth and stable linear movement.
Used
Available on request 55,55$
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

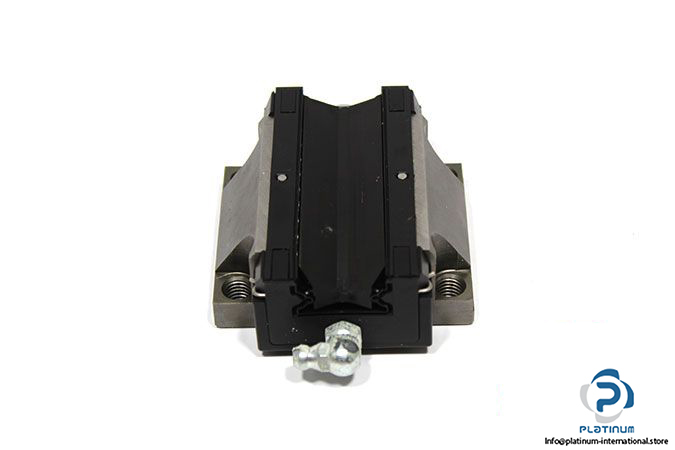

INA KWE25 G3 V1 Linear Ball Bearing Carriage
The INA KWE25 G3 V1 is a high-precision two-row linear recirculating ball bearing carriage designed for smooth linear motion and high load capacity in industrial automation and machinery systems. Manufactured by Schaeffler (INA), this carriage ensures reliable guidance, high rigidity, and precise positioning in demanding motion control applications.
Manufacturer: INA / Schaeffler
Type: Two-Row Linear Recirculating Ball Bearing Carriage
Model: KWE25 G3 V1
Size: 25 mm
| Basic Dynamic Load Rating (C) | 17,900 N |
| Basic Static Load Rating (C0) | 37,000 N |
| Static Moment Rating About X Axis (M0x) | 510 Nm |
| Static Moment Rating About Y Axis (M0y) | 395 Nm |
| Static Moment Rating About Z Axis (M0z) | 395 Nm |
| Preload | V1 |
| Accuracy Class | G3 |

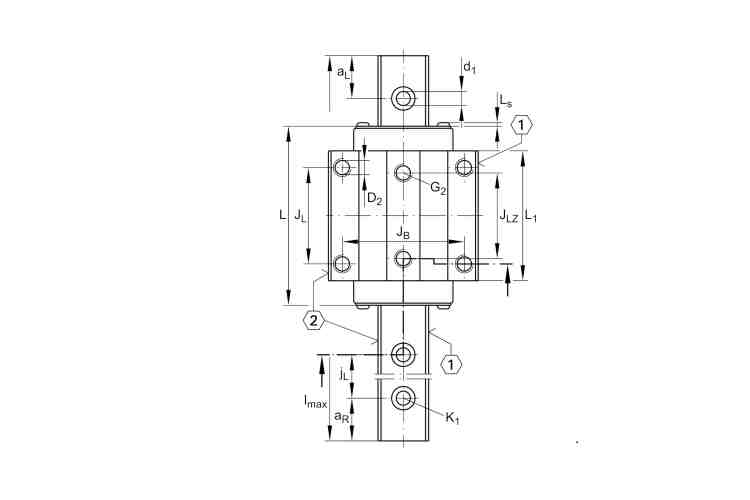

| Height System (H) | 36 mm |
| Width Carriage (A) | 70 mm |
| Overall Length Carriage (C) | 83.3 mm |

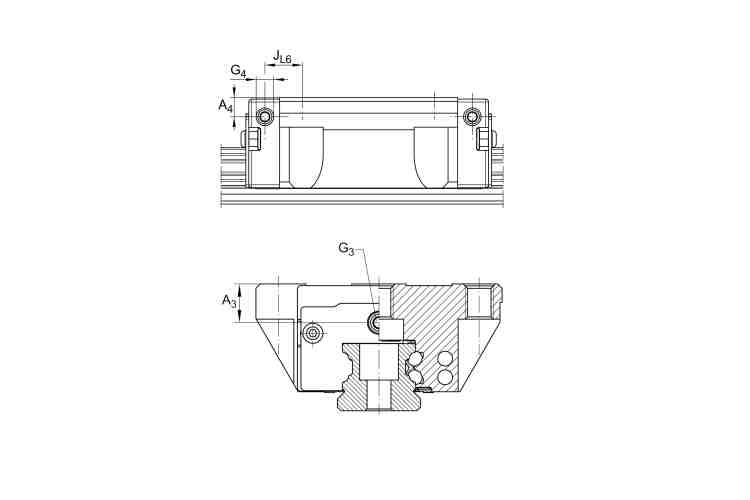

| A1 | 23.5 mm |
| A3 | 11 mm |
| A4 | 6.5 mm |
| JB | 57 mm |
| Recommended | Ideal for CNC machines, precision automation systems, and industrial linear guide assemblies where smooth motion, high rigidity, and long service life are required. |
