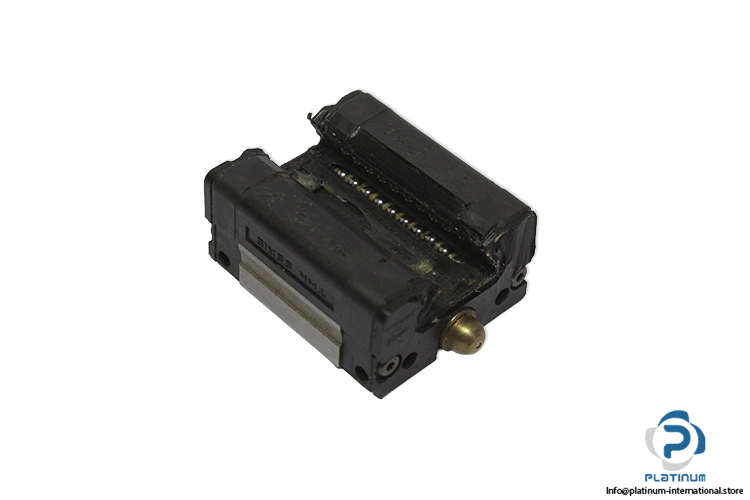

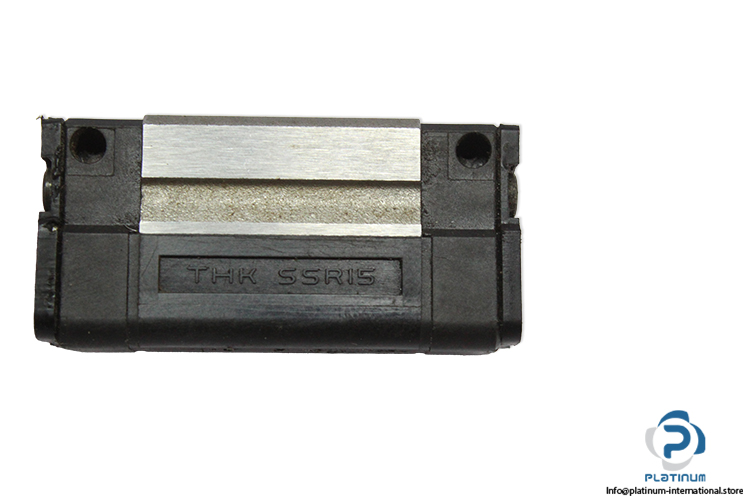

THK SSR15 XV Linear Guideway Block
Used
In stock4 unitsReady to ship
Linear Guideway Block
THK SSR15 XV square-type linear guideway block, size 15 mm, with high load capacity and precision dimensions for CNC and automation applications. Recommended for high-precision linear motion systems requiring stability and durability.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
THK SSR15 XV Linear Guideway Block
The THK SSR15 XV linear guideway block is a precision square-type linear motion component designed for smooth, accurate, and high-rigidity movement in industrial automation and CNC systems.
Manufacturer: THK
Type: Linear Guideway Block
Model: SSR15 XV

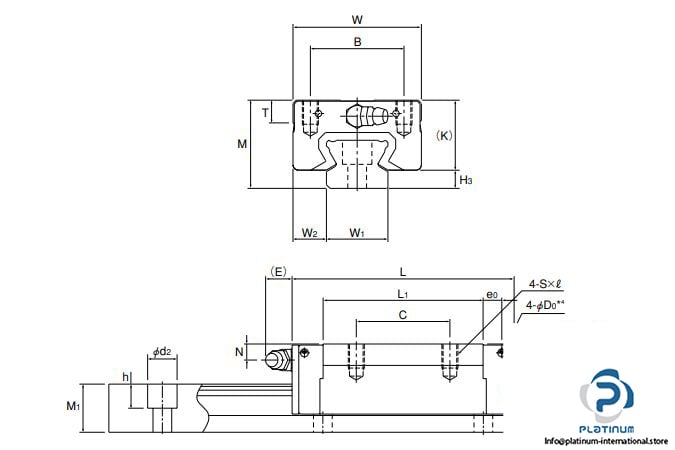

Dimensions:
Ideal for CNC machinery, precision automation systems, and linear motion assemblies requiring high rigidity and smooth travel.
Please contact us via Ask for assistance with any inquiries.
| Size | 15 mm |
| Block Type | Square Type |
| Basic Dynamic Load Rating (C) | 9.1 kN |
| Basic Static Load Rating (C0) | 9.7 kN |
| Mounting Hole Pitch B | 26 mm (Width Direction) |
| Mounting Screw Size | M4 x 7 mm Depth |
| L1 | 23.3 mm |
| T | 6.5 mm |
| K | 19.5 mm |
| N | 4.5 mm |
| E | 5.5 mm |
| H3 | 4.5 mm |
| Total Height (M) | 24 mm |
| Block Width (W) | 34 mm |
| Block Length (L) | 40.3 mm |
