THK SSR15XW Linear Guideway Block
Used
Available on request
Linear Guideway Block
THK SSR 15XW square type linear guide block, size 15 mm, with high dynamic and static load capacity for precision motion systems. Recommended for CNC equipment and automated machinery requiring accurate linear movement.
New
Available on request 65,00$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
THK SSR 15XW Linear Guideway Block
The THK SSR 15XW linear guideway block is designed for precision linear motion applications requiring high rigidity, compact structure, and reliable load capacity.
Manufacturer: THK
Type: Linear Guideway Block
Model: SSR 15XW
Size: 15 mm
Block Type: Square Type

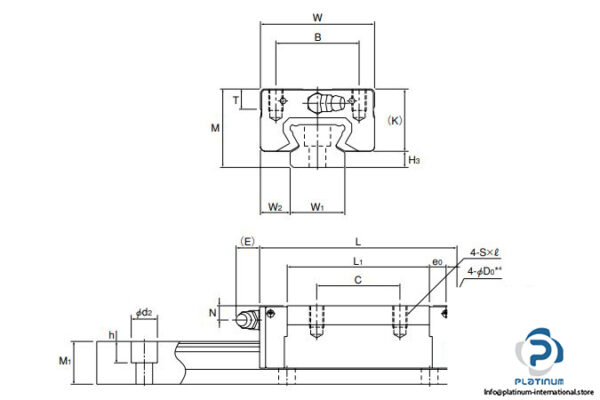

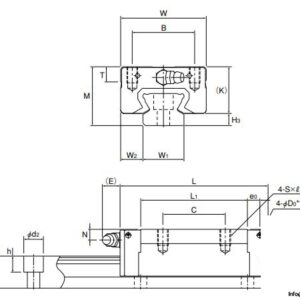

Dimensions:
Ideal for CNC machines, automation systems, and precision industrial motion assemblies.
Please contact us via Ask for assistance with any inquiries.
| Basic Dynamic Load Rating (C) | 14.7 kN |
| Basic Static Load Rating (C0) | 16.5 kN |
| Mounting Hole Pitch B | 26 mm (Width Direction) |
| Mounting Screw Size | M4 x 7 mm Depth |
| L1 | 39.9 mm |
| T | 6.5 mm |
| K | 19.5 mm |
| N | 4.5 mm |
| E | 5.5 mm |
| H3 | 4.5 mm |
| Total Height (M) | 24 mm |
| Block Width (W) | 34 mm |
| Block Length (L) | 56.9 mm |
