THK SSR15XW Linear Guideway Block
New
Available on request
65,00$
Linear Guideway Block
THK SSR 15XW1SSM square-type linear guideway block designed for precision linear motion systems, offering high rigidity, smooth movement, and reliable load capacity for CNC and industrial automation applications.
Used
Available on request
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

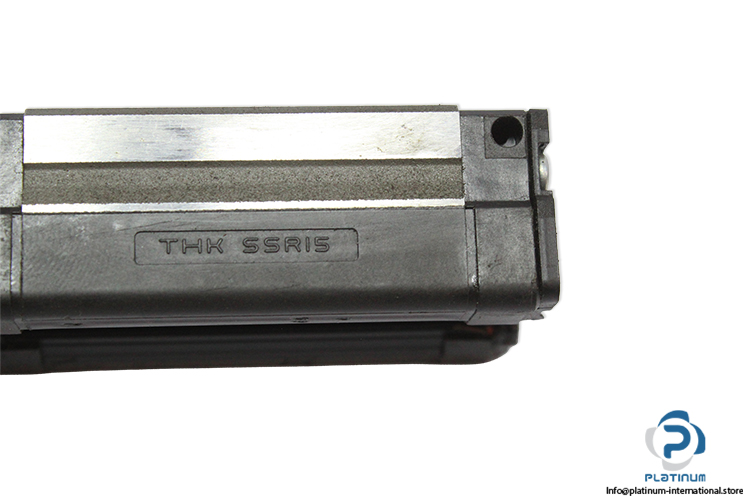

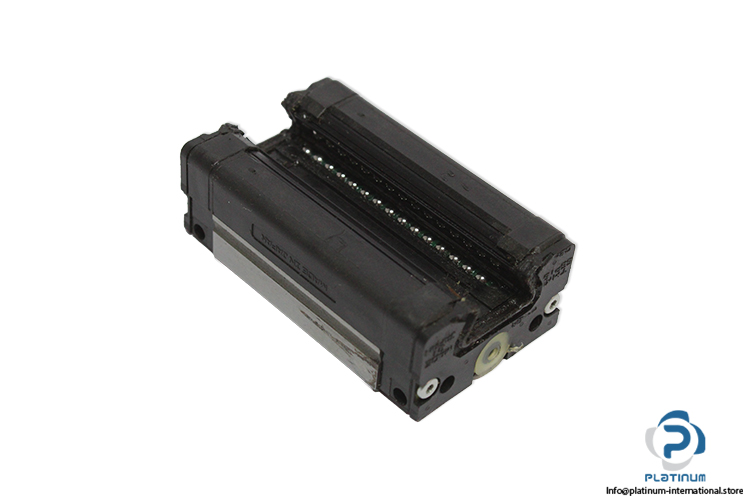

THK SSR 15XW1SSM Linear Guideway Block
The THK SSR 15XW1SSM Linear Guideway Block is a precision-engineered square-type linear motion block designed for smooth, accurate, and stable linear movement in industrial automation and machine systems. Manufactured by THK, this linear guide block provides high rigidity, reliable load capacity, and excellent motion accuracy for demanding motion control applications.
Manufacturer: THK
Type: Linear Guideway Block
Model: SSR 15XW1SSM

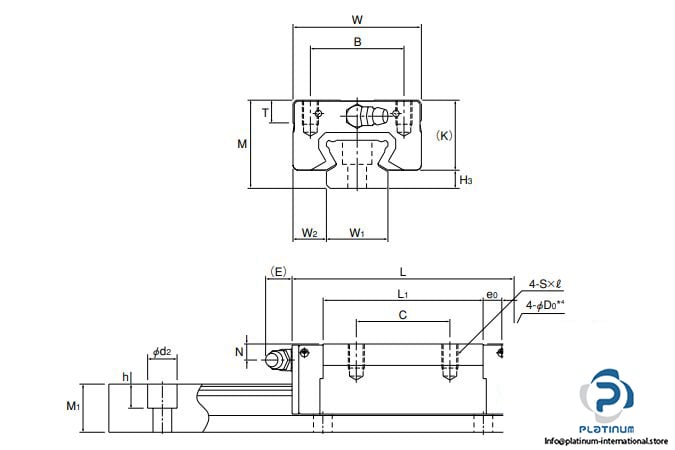

Dimensions
| Size | 15 mm |
| Block Type | Square Type |
| Basic Dynamic Load Rating (C) | 14.7 kN |
| Basic Static Load Rating (C0) | 16.5 kN |
| Mounting Hole Pitch B | 26 mm (Width Direction) |
| Mounting Screw Size | M4 x 7 mm Depth |
| L1 | 39.9 mm |
| T | 6.5 mm |
| K | 19.5 mm |
| N | 4.5 mm |
| E | 5.5 mm |
| H3 | 4.5 mm |
| Total Height (M) | 24 mm |
| Block Width (W) | 34 mm |
| Block Length (L) | 56.9 mm |
| Recommendation | Ideal for CNC machines, automation equipment, and precision linear motion systems where smooth movement and high load capacity are essential. |
