Rexroth 1651-214-20 Ball Runner Block
Used
In stock1 unitReady to ship
Ball Runner Block
Rexroth Star 1651-214-20 ball runner block, size 25 mm, FNS flange design with high dynamic and static load capacity for precision linear motion systems. Recommended for CNC machines and industrial automation requiring high rigidity and accurate guidance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

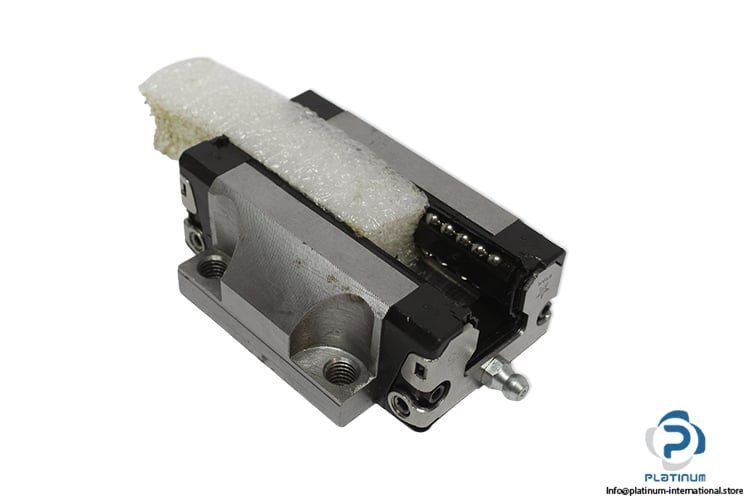

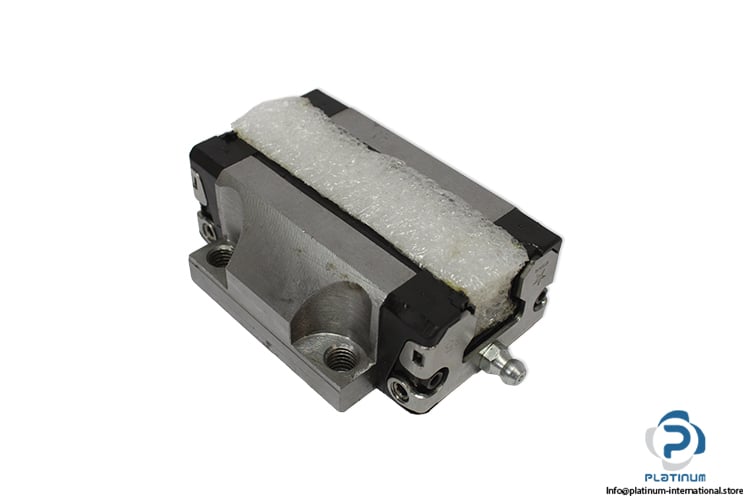

Rexroth Star 1651-214-20 Ball Runner Block
The Rexroth Star 1651-214-20 ball runner block is engineered for precise linear motion applications requiring high load capacity, rigidity, and reliable performance in industrial automation systems.
Manufacturer: Rexroth Star
Type: Ball Runner Block

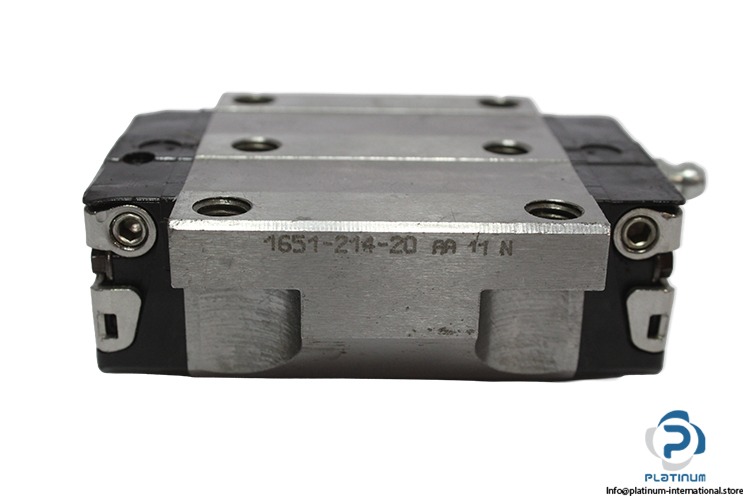

MNR: 1651-214-20
Size: 25 mm
Format: FNS “ Flange, Normal, Standard Height
Material: Carbon Steel
Accuracy Class: N “ Normal
Suitable for CNC machinery, automation systems, and high-precision linear guide applications requiring stable motion and high structural rigidity.
Please contact us via Ask for assistance with any inquiries.
| Dynamic Load Capacity (C) | 28600.0 N |
| Static Load Capacity (C0) | 35900.0 N |
| Dynamic Torsional Moment Load Capacity (Mt) | 410 Nm |
| Static Torsional Moment Load Capacity (Mt0) | 510 Nm |
| Dynamic Longitudinal Moment Load Capacity (ML) | 290 Nm |
| Static Longitudinal Moment Load Capacity (ML0) | 360 Nm |

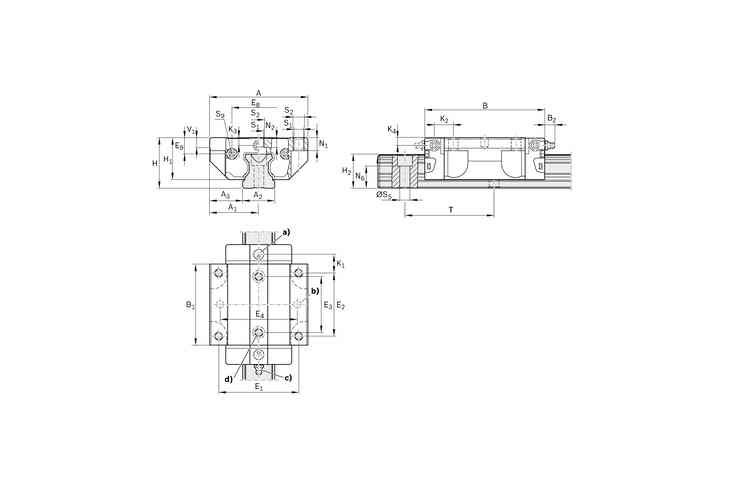

| Width (A) | 70 mm |
| Length (B) | 86.2 mm |
| Height (H) | 36 mm |
| Height (H1) | 29.9 mm |
| Admissible Operating Temperature | -10 °C to +80 °C |
