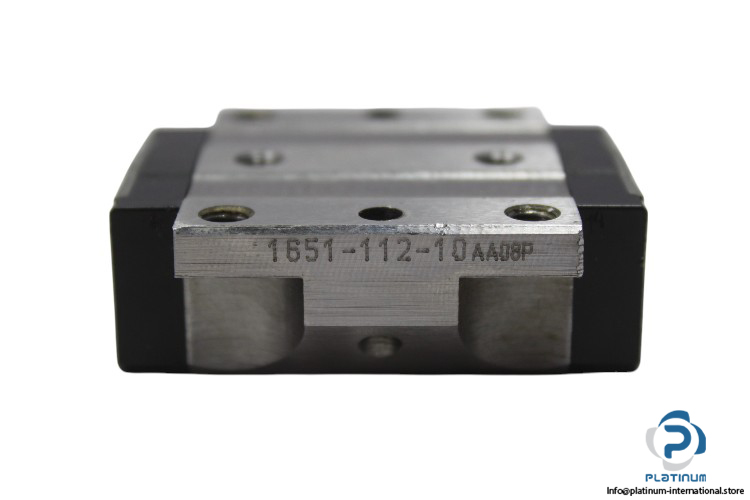

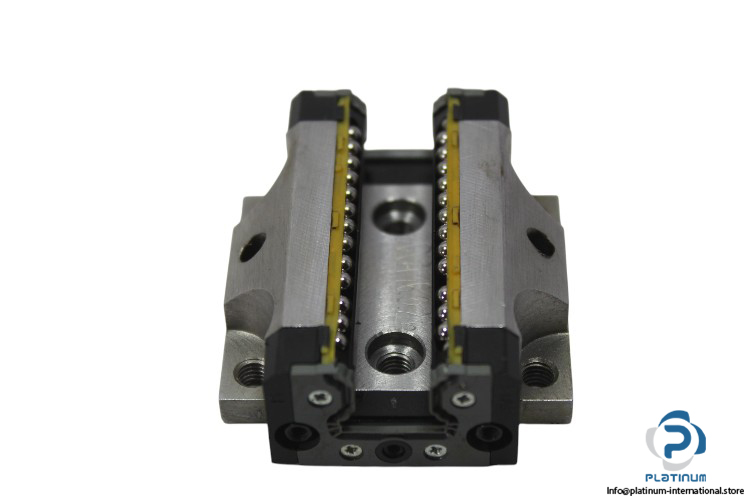

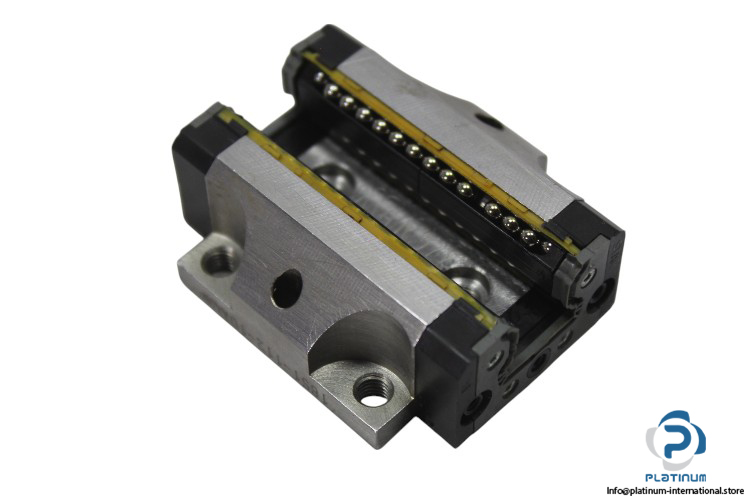

Star 1651-112-10 Ball Runner Block
New
In stock1 unitReady to ship
Ball Runner Block
Rexroth Star R165111210 Ball Runner Block features a 15 mm size and offers high dynamic and static load capacity. With an accuracy class of P, it is ideal for precision linear motion in industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Rexroth Star Ball Runner Block
The Rexroth Star Ball Runner Block is engineered for precise linear motion, offering high load capacity and smooth operation in various industrial systems. With durable construction, it ensures reliable performance under high dynamic and static loads.
Manufacturer: Rexroth Star
Model: R165111210 /1651-112-10AA08P
Type: Ball Runner Block
MNR: R165111210 /1651-112-10AA08P
| Size | 15 mm |
| Width (A) | 47 mm |
| Length (B) | 54 mm |
| Height of System (H) | 24 mm |
| Height of Block (H1) | 19.8 mm |
| E1 | 38 mm |
| E2 | 30 mm |
| Dynamic Load Capacity (C) | 7800 N |
| Static Load Capacity (C0) | 13500 N |
| Dynamic Torsional Moment Load Capacity (Mt) | 74 Nm |
| Mt0 | 130 Nm |
| Dynamic Longitudinal Moment Load Capacity (ML) | 40 Nm |
| Static Longitudinal Moment Load Capacity (ML0) | 71 Nm |
| Accuracy Class | P |
| Preload | 0.02 C |
