Star 1512-3-1003 Flanged Single NUT FEM-E-S
Used
In stock1 unitReady to ship
279,99$
Flanged Single Nut
The Rexroth Star 1512-3-1003 Flanged Single Nut offers precision motion control with a 32mm diameter, 5 right-hand threads, and a high load capacity of 21500N dynamic and 40000N static.1512-3-100332mmAutomationBallControlflangedhigh-loadIndustrialMotionnutPrecisionRexrothRight-HandscrewSingleStarThread
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

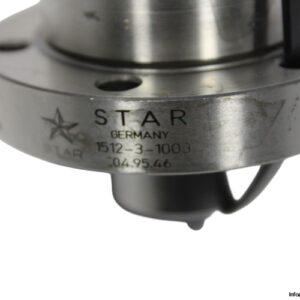

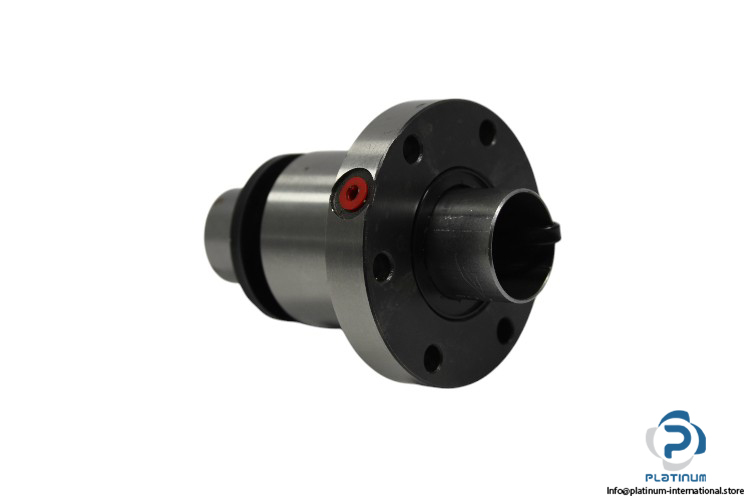

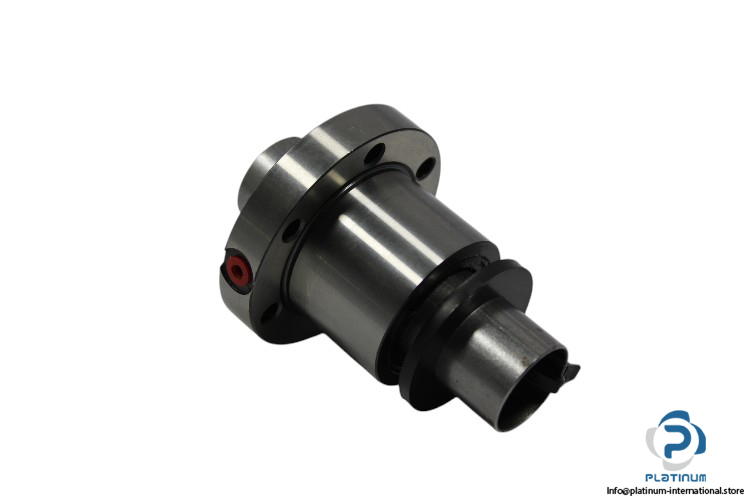

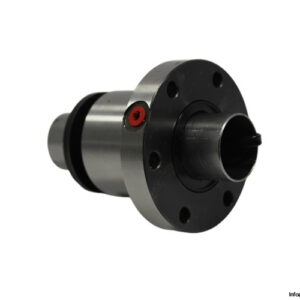

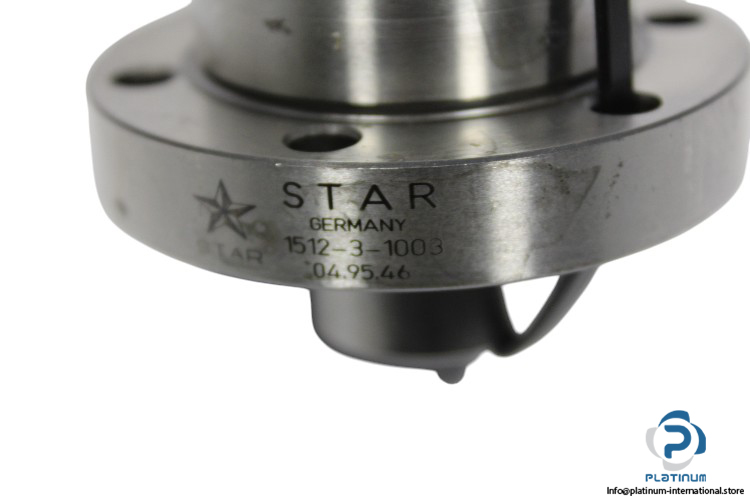

Rexroth Star 1512-3-1003 Flanged Single Nut
The Rexroth Star 1512-3-1003 Flanged Single Nut is a high-precision ball screw nut designed for smooth motion and high-load applications. Featuring a right-hand thread lead, durable construction, and excellent rigidity, this nut ensures optimal performance in industrial automation systems.
Manufacturer: Rexroth Star
Type: Flanged Single Nut
MNR: 1512-3-1003

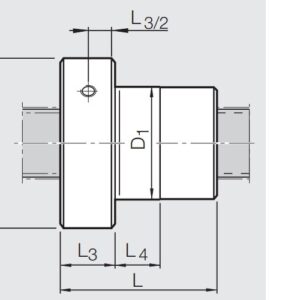

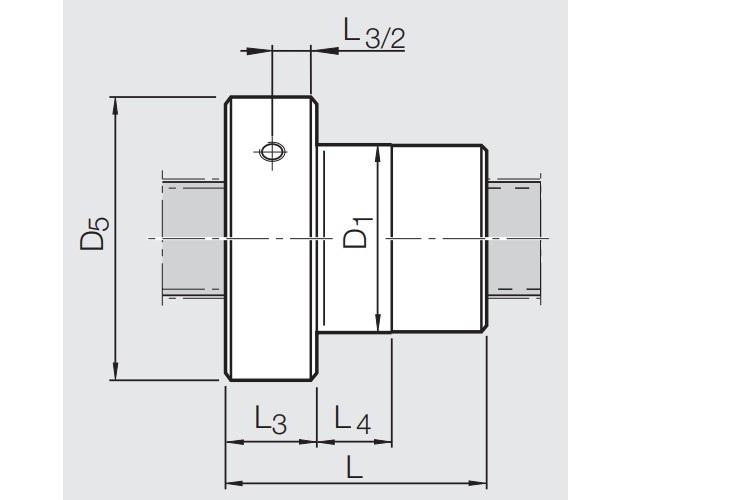

| Size | 32 x 5 R x 3.5-4 |
| Nominal Diameter | 32 mm |
| Ball Diameter | 3.5 mm |
| Lead | 5 Right-Hand Threads |
| Number of Ball Track Turns | 4 |
| Flange Diameter | 73 mm |
| Nut Outer Diameter | 48 mm |
| Flange Thickness | 13 mm |
| Nut Length | 48 mm |
| Dynamic Load Rating (C) | 21500 N |
| Static Load Rating (C0) | 40000 N |
| Rigidity Nut | 610 (N/µm) |
| Operating Temperature | -10 °C to +80 °C |
