INA KWVE25-B V1-G3 Recirculating Ball Bearing Carriage
The INA KWVE25-B V1-G3 recirculating ball bearing carriage is a high-precision linear motion component designed for smooth movement, high load capacity, and reliable positioning performance in industrial automation systems.
Manufacturer: INA
Type: Recirculating Ball Bearing Carriage
Model: KWVE25-B V1-G3

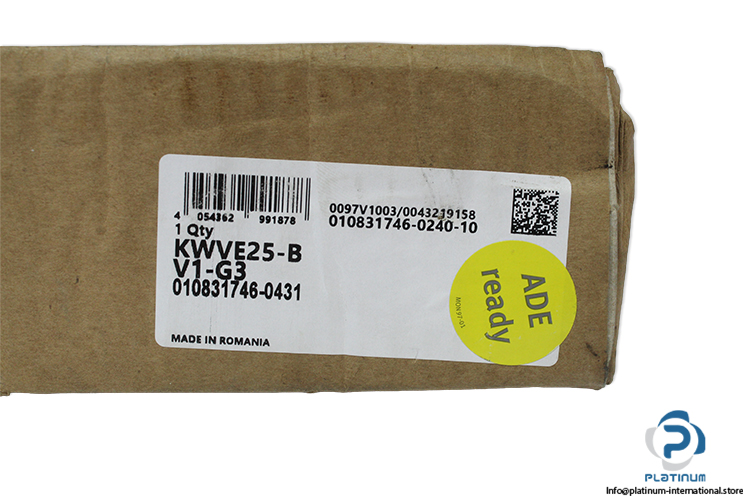

Schaeffler ID No.: 010831746-0431
Recommended for CNC machines, automated production systems, and high-precision linear motion applications.
Please contact us via Ask for assistance with any inquiries.

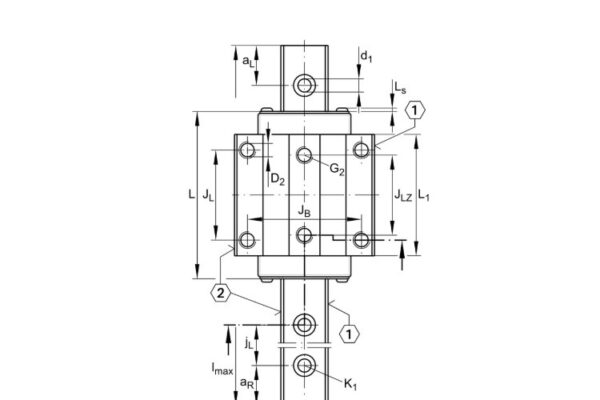

| Rail | TKVD 25 |
| Size Code | 25 |
| Height of System | 36 mm |
| Height of Block | 30.9 mm |
| Width | 70 mm |
| Length | 83.3 mm |
| JL | 45 mm |
| JB | 57 mm |
| Maximum Length | 900 mm |
| Spacing to Hole on the Left | 220 mm |
| Spacing to Hole on the Right | 220 mm |
| Dynamic Load Rating | 17900 N |
| Static Load Rating | 37000 N |
| Static Moment Rating about X Axis | 510 Nm |
| Static Moment Rating about Y Axis | 395 Nm |
| Static Moment Rating about Z Axis | 395 Nm |
| Preload | V1 |
| Accuracy | G3 |
