Manufacturer: ABBA

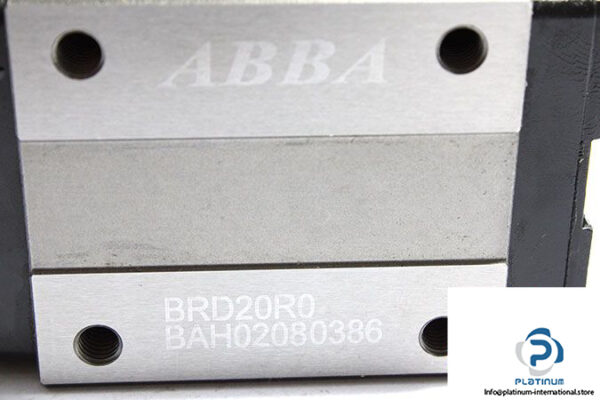

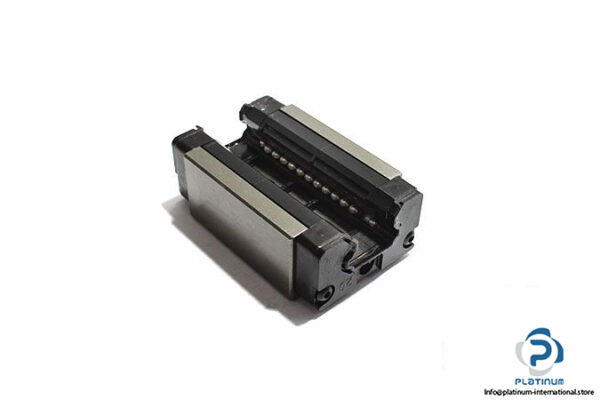

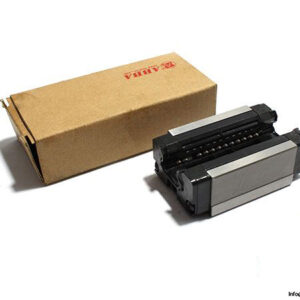

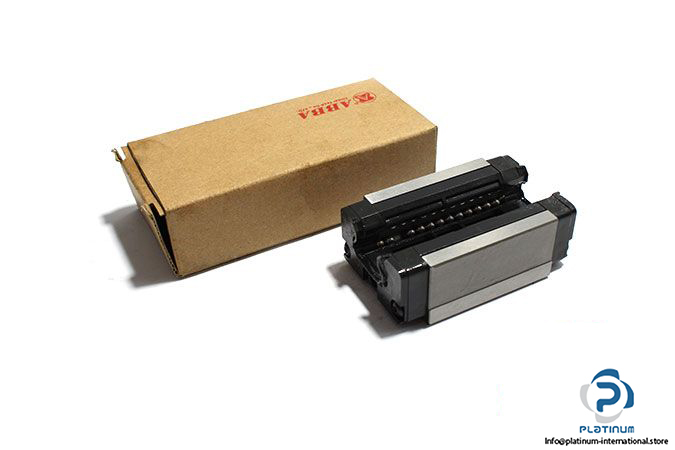

Type: Linear Guideway Block BRD

Model: BRD 20 R0

Size: 20 mm

Block Type: Slim-line block, Standard length, Extended height

Preload class: Z1, Light preload

Accuracy class: N

Basic Load Ratings:

Dynamic C: 1400 kgf

Static C₀: 2400 kgf

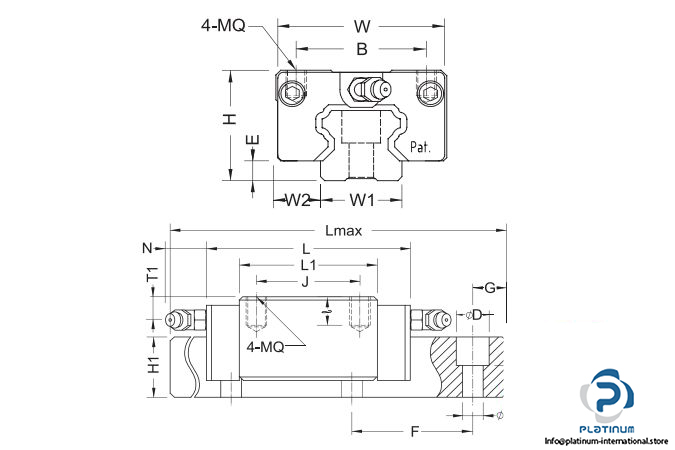

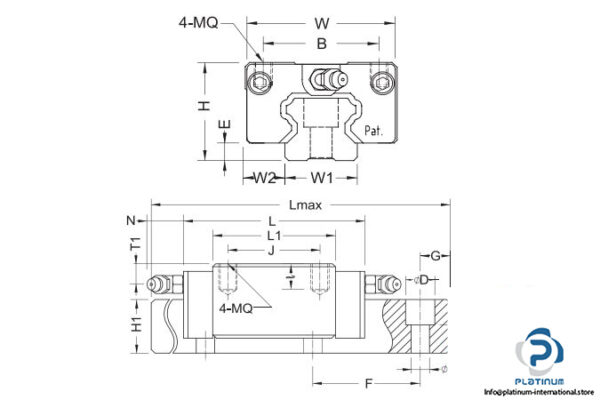

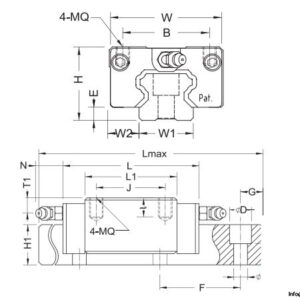

Dimensions

Total Height H: 30 mm

Block Width W: 44 mm

Block Length L: 67.8 mm

Weight: 0.31 kg
