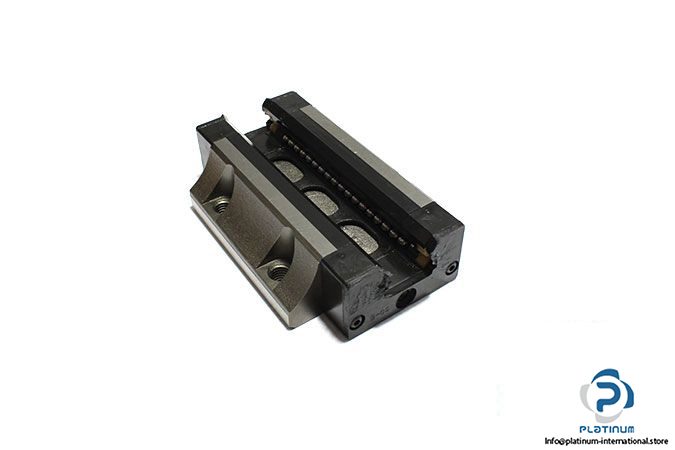

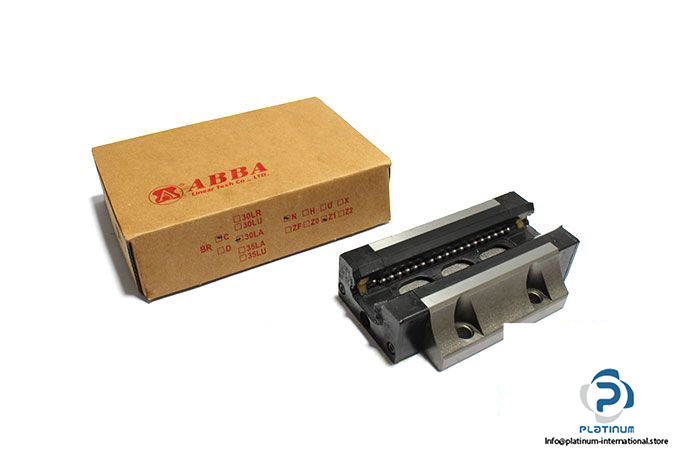

Abba BRC30LA Linear Guideway Block
Manufacturer: ABBA
Type: Linear Guideway Block BRC

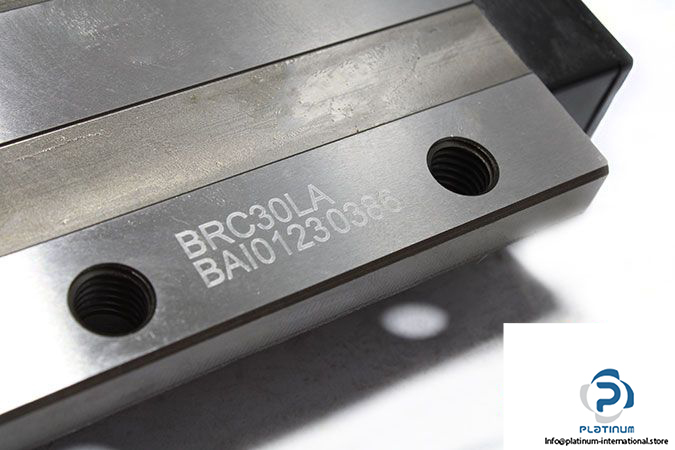

Model: BRC 30 LA
Size: 30 mm
Block Type: Flanged block, Extended length, Standard height
Preload class: Z1, Light preload
Accuracy class: N
End Cap Type: End cap with Self-lubricant part
Basic Load Ratings:
Dynamic C: 3600 kgf
Static C0: 6400 kgf

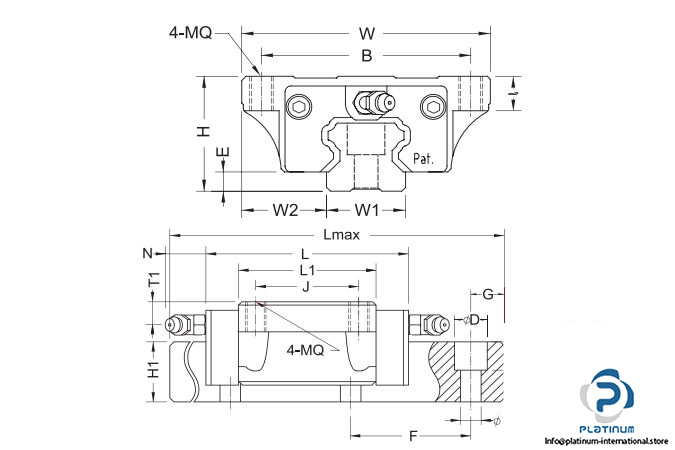

Dimensions
Total Height H: 42 mm
Block Width W: 90 mm
Block Length L: 131.3 mm
Weight: 1.43 kg
