Manufacturer: ABBA

Type: Linear Guideway Block BRD

Model: BRD 45 LR

Size: 45 mm

Block Type: Slim-line block, Extended length, Extended height

Preload class: Z1, Light preload

Accuracy class: N

Basic Load Ratings:

Dynamic C: 7700 kgf

Static C₀: 13000 kgf

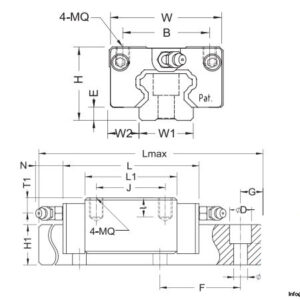

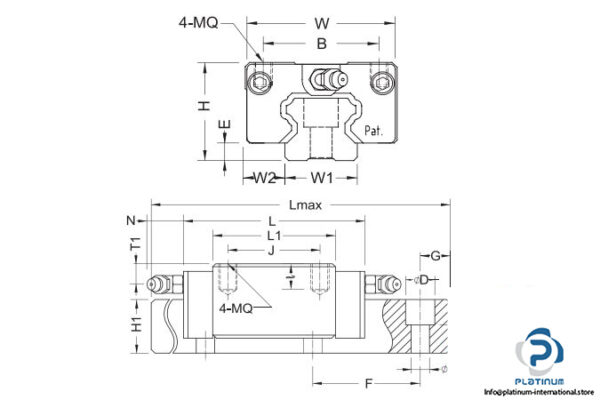

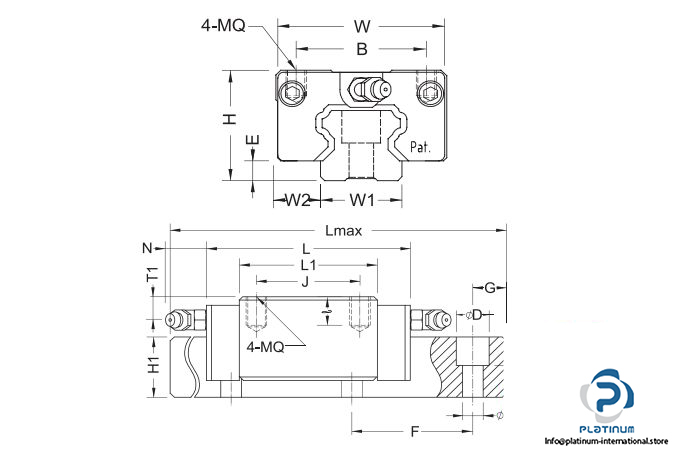

Dimensions

Total Height H: 70 mm

Block Width W: 86 mm

Block Length L: 163 mm

Weight: 3.52 kg
