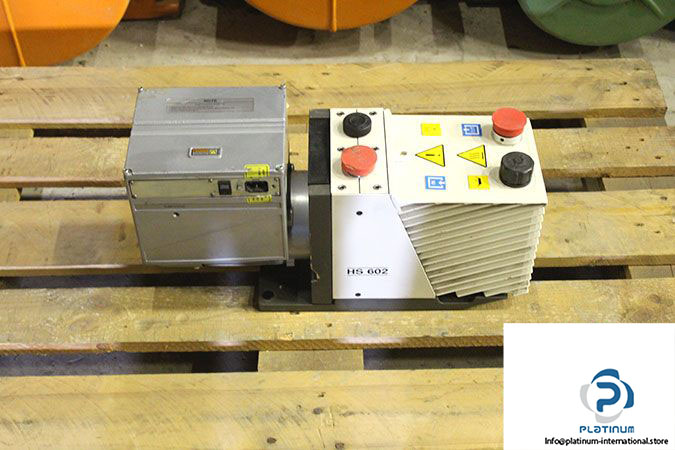

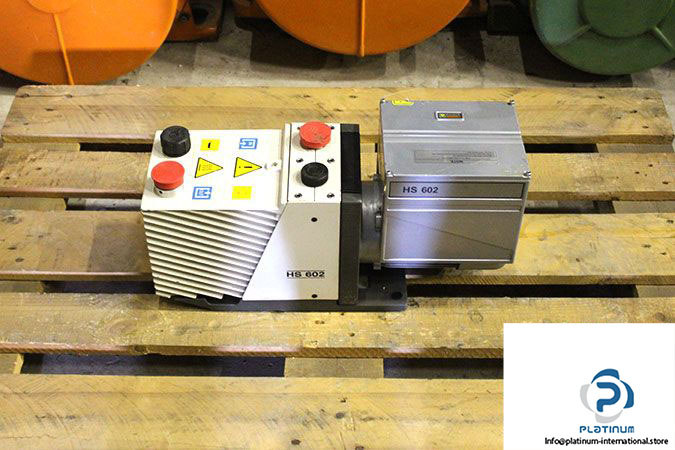

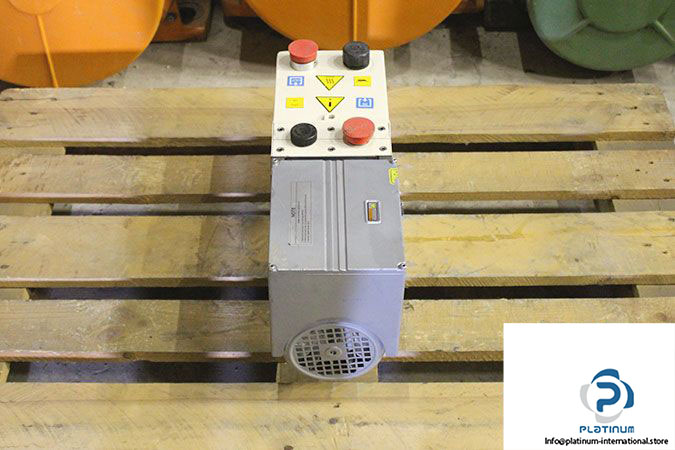

Manufacturer: Agilent Technologies / Varian

Type: Dual Stage Rotary Vane Vacuum Pump

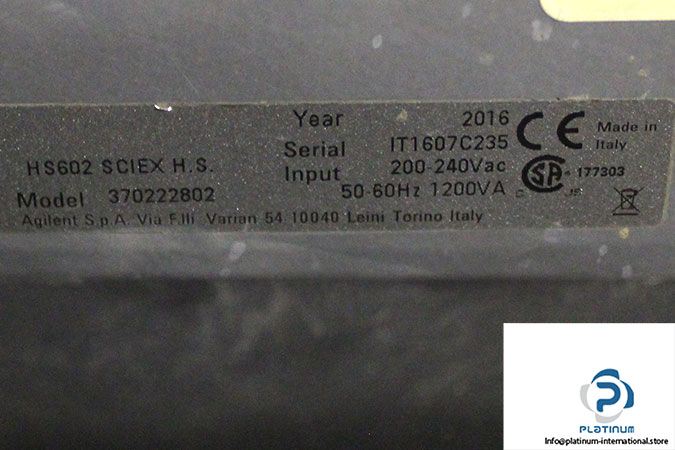

Model: HS602

Part Nr.: 370222802

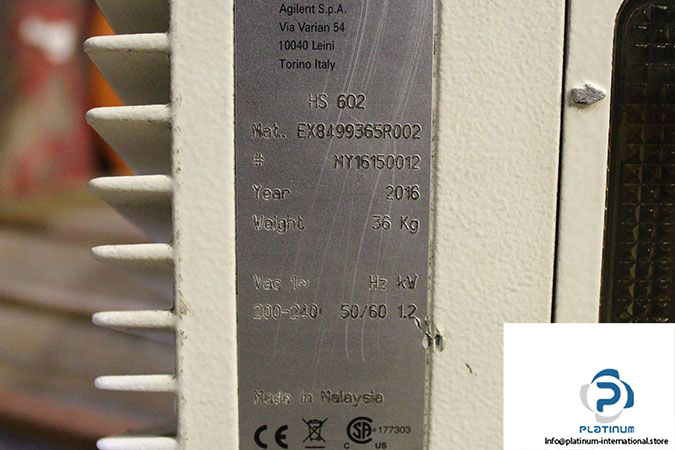

Mat.: EX8499365R002

Rated Voltage [VAC]: 200-240

Rated Power [kW]: 1.2

Free Air Displacement [l/min]: 504/605

Water Vapor Tolerance [mbar]: 30

Water Vapor Capacity [g/h]: 550

Oil Capacity Min/Max [l]: 0.5/1

Motor Rating 1ph [kW]: 0.75/0.9

Motor Rating 3ph [kW]: 0.75/0.9

Nominal Rotation Speed [rpm]: 1500/1800

Frequency [Hz]: 50/60

Inlet Flange [DN]: 25

Exhaust Flange [DN]: 25

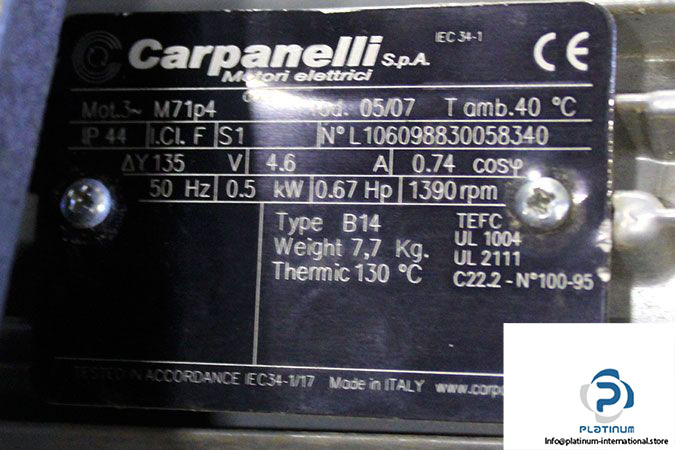

Attachment: Carpanelli M71p4 3-Phase E-Motor

Manufacturer: Carpanelli

Type: 3-Phase E-Motor

Model: M71p4

Rated Voltage [V]: 135

Rated Current [A]: 4.6

Rated Power [kW]: 0.5

Horsepower [Hp]: 0.67

Rated Speed [rpm]: 1390

Protection Class [IP]: 44

Duty: S1 Cont.

Frequency [Hz]: 50

Power Factor [%]: 0.74

Ambient Temperature [°C]: 40

Insulation Class: F

Weight [kg]: 30.4
