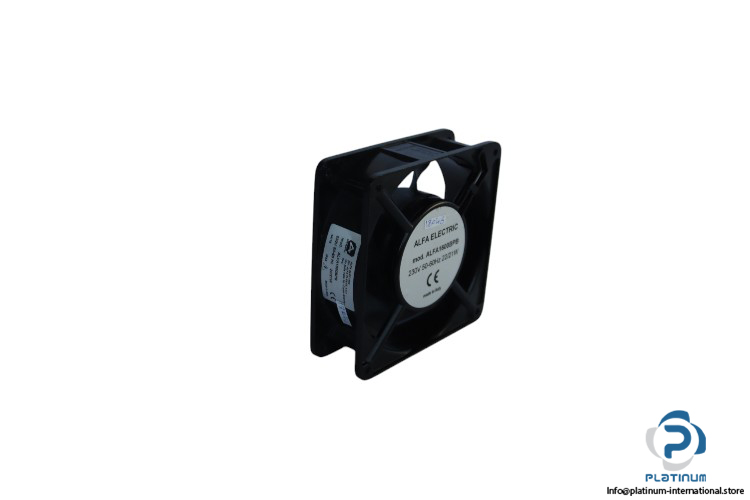

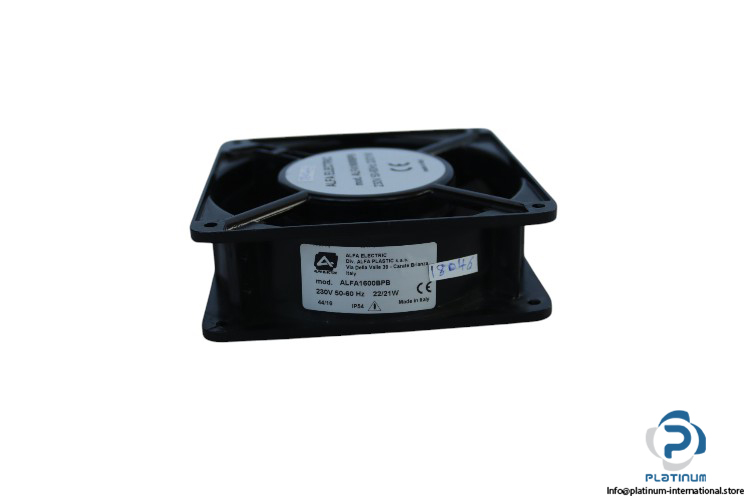

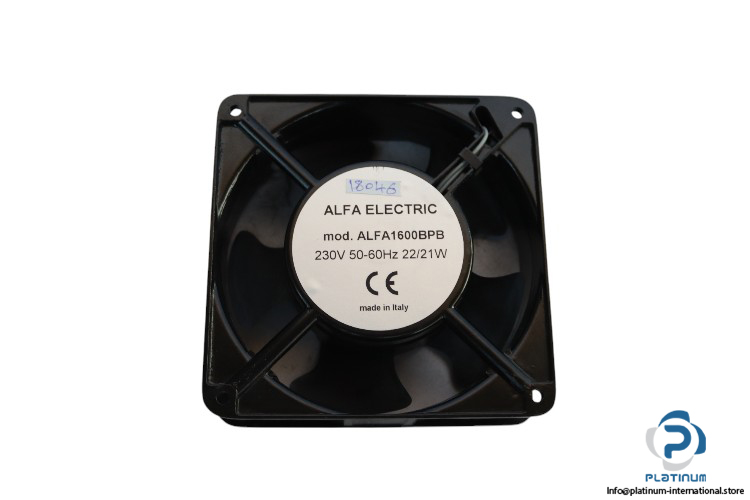

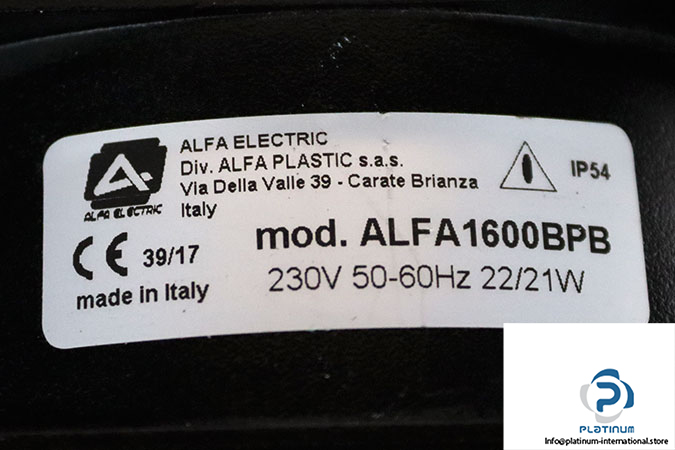

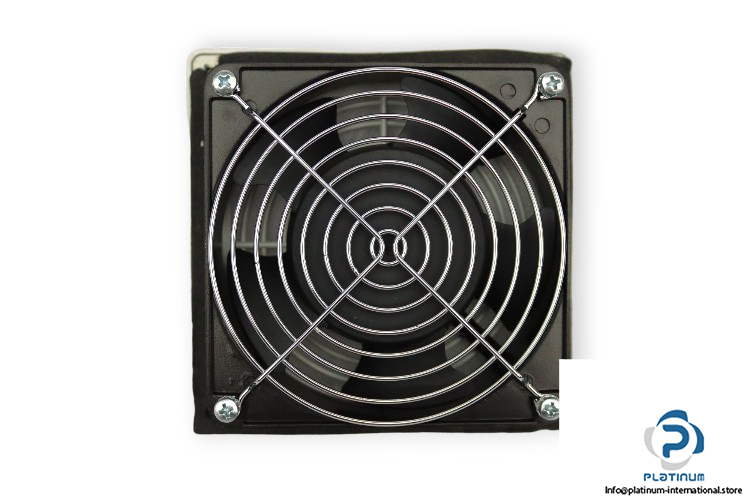

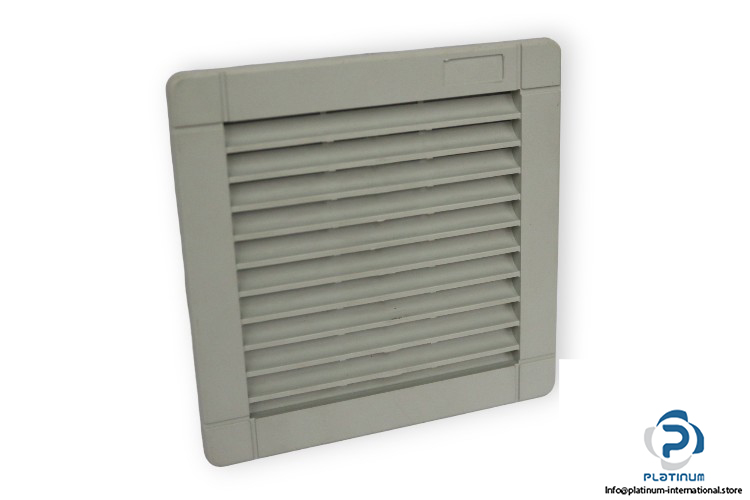

Alfa Electric ALFA1600BPB Filter Fan

The Alfa Electric ALFA1600BPB is a high-performance filter fan designed for effective ventilation and cooling in industrial enclosures. With its IP54 protection, it ensures reliable operation in demanding environments, preventing dust and moisture infiltration.

Key Details:

• Manufacturer: Alfa Electric
• Type: Filter Fan
• Model: ALFA1600BPB

Technical Information:

• Supply Voltage: 230 V AC
• Frequency: 50 to 60 Hz
• Power Consumption: 22 (21) W
• Current Consumption: 0.14 (0.12) A
• Air Flow Rate: 55 (60) m³/h
• Flow Rate with Exit Filter: 40 (45) m³/h
• Electric Connection: Fasten 2.8 x 0.5 mm
• Overcurrent Protection: Impedance
• Noise Level: 43 (49) dB
• Flow Direction: Outside-in
• Wall Thickness: 1.2 to 2.4 mm
• Mounting: Fast Clip-on
• Operating Temperature: -10 to 70 °C
• Degree of Protection: IP54
• Dimensions: 165 x 165 x 85 mm

With its fast clip-on mounting system and low noise operation, the ALFA1600BPB is an ideal choice for industrial cooling applications, ensuring optimal airflow and temperature regulation.
