Alfa Electric ALFA1600BPB Filter FAN
59,99$
Industrial-grade filter fan designed for efficient ventilation and cooling. Features 230V AC power, 55 m³/h airflow, IP54 protection, and fast clip-on mounting.

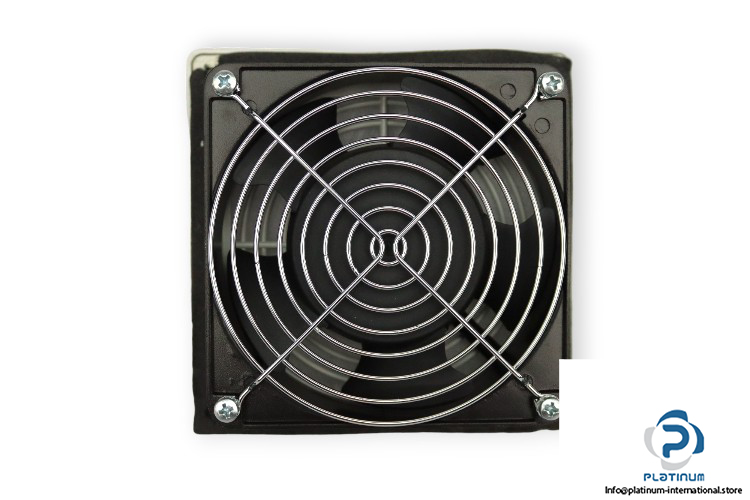

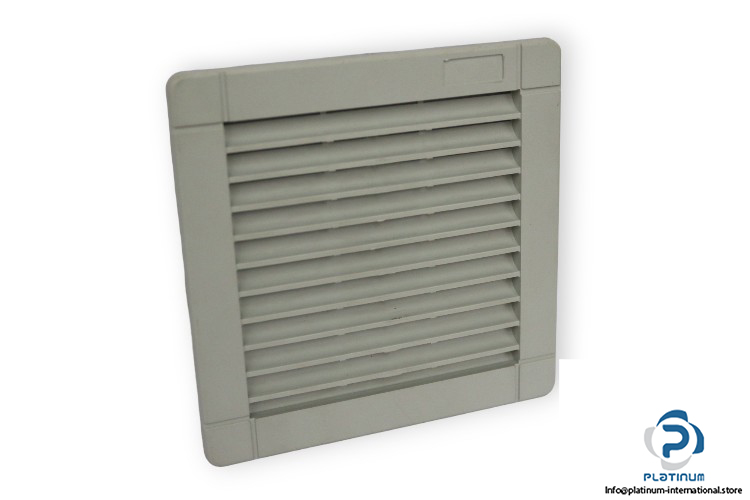

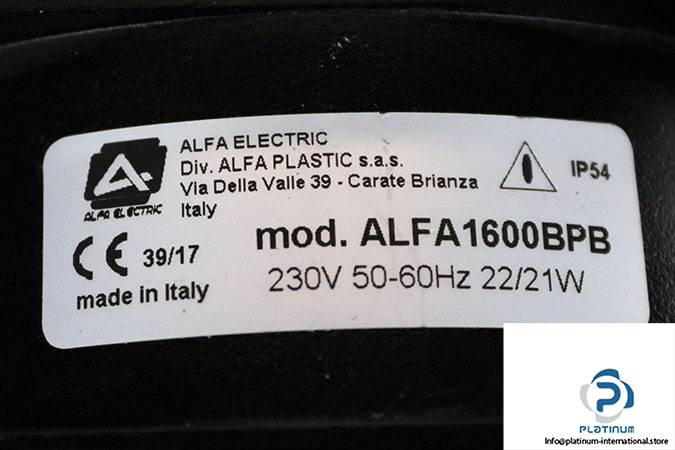

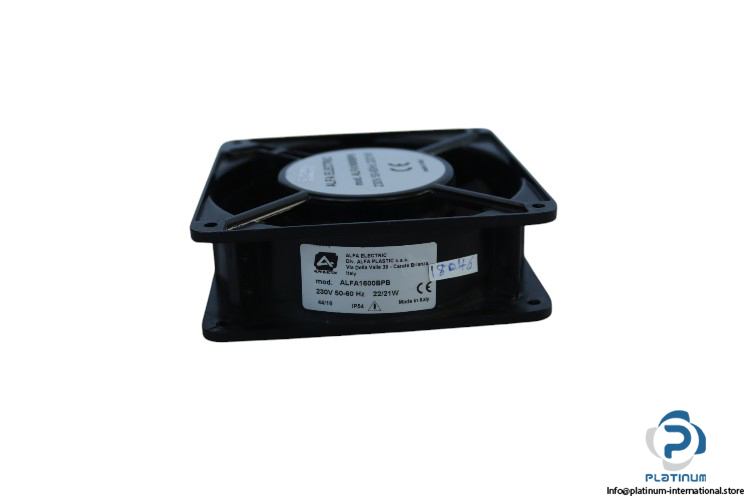

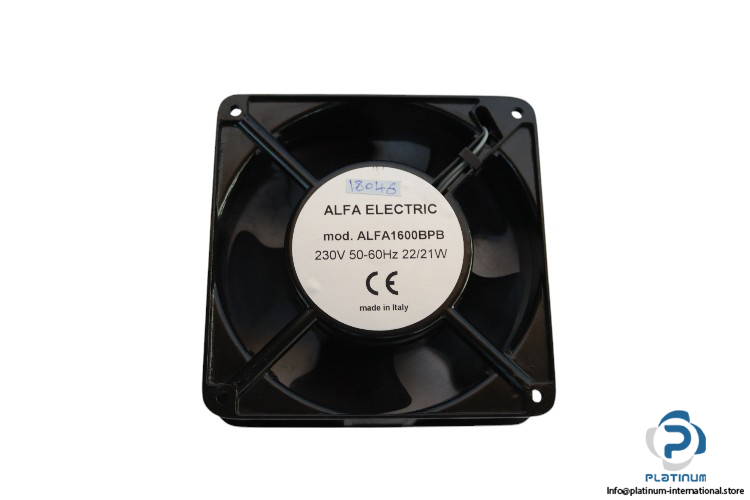

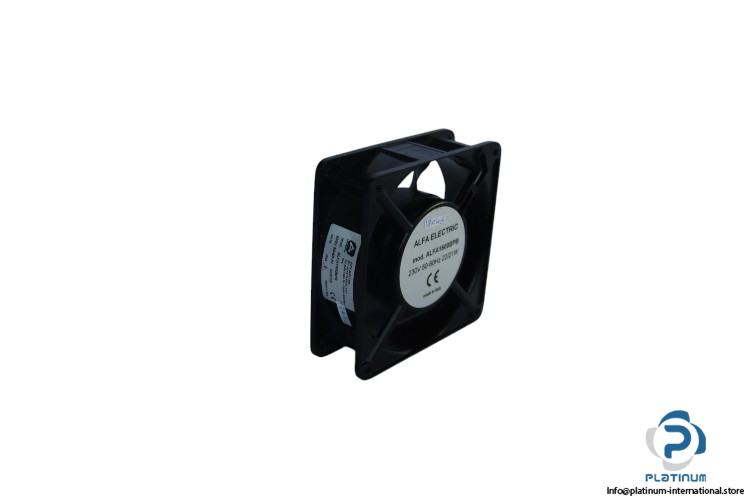

Alfa Electric ALFA1600BPB Filter Fan
The Alfa Electric ALFA1600BPB is a high-performance filter fan designed for effective ventilation and cooling in industrial enclosures. With its IP54 protection, it ensures reliable operation in demanding environments, preventing dust and moisture infiltration.
Key Details:
Manufacturer: Alfa Electric
Type: Filter Fan
Model: ALFA1600BPB
With its fast clip-on mounting system and low noise operation, the ALFA1600BPB is an ideal choice for industrial cooling applications, ensuring optimal airflow and temperature regulation.
| Supply Voltage | 230 V AC |
| Frequency | 50 to 60 Hz |
| Power Consumption | 22 (21) W |
| Current Consumption | 0.14 (0.12) A |
| Air Flow Rate | 55 (60) m³/h |
| Flow Rate with Exit Filter | 40 (45) m³/h |
| Electric Connection | Fasten 2.8 x 0.5 mm |
| Overcurrent Protection | Impedance |
| Noise Level | 43 (49) dB |
| Flow Direction | Outside-in |
| Wall Thickness | 1.2 to 2.4 mm |
| Mounting | Fast Clip-on |
| Operating Temperature | -10 to 70 °C |
| Degree of Protection | IP54 |
| Dimensions | 165 x 165 x 85 mm |
