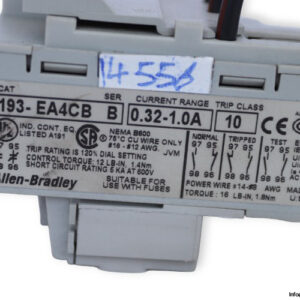

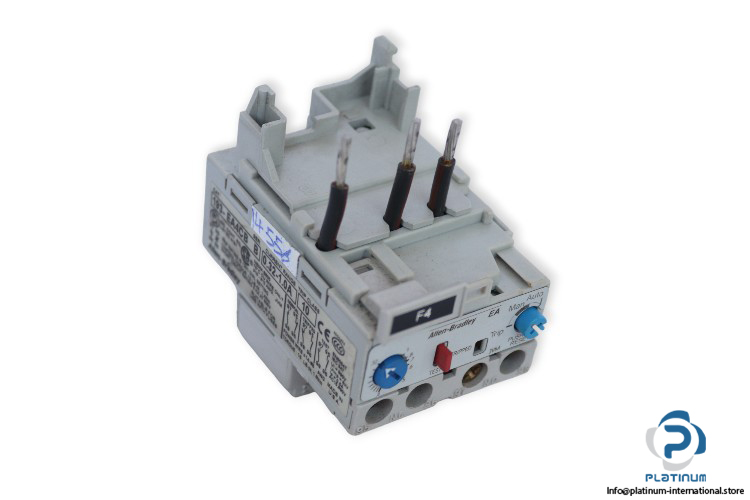

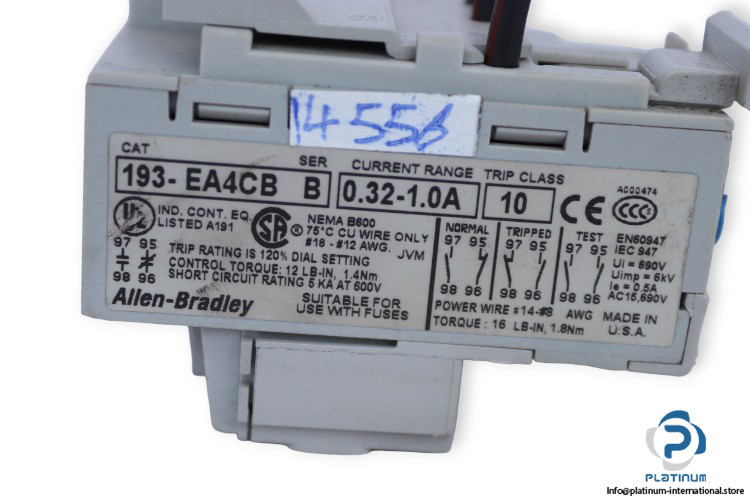

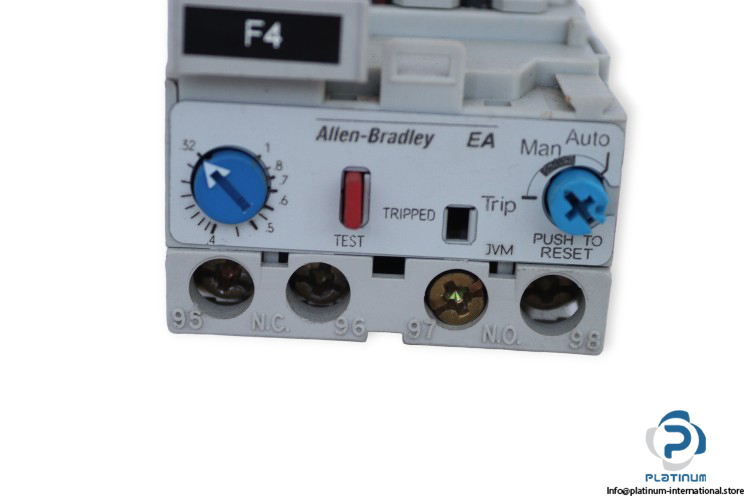

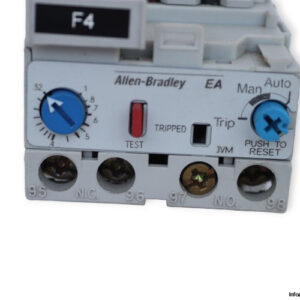

Allen-Bradley 193-EA4CB Overload Relay
The Allen-Bradley 193-EA4CB Series B Overload Relay is a precision protective device designed to safeguard electric motors against overload and phase failure. Engineered for reliable performance, it ensures fast trip response, durability, and compliance with international standards, making it ideal for industrial control and automation applications.
Manufacturer: Allen-Bradley
Type: Overload Relay
Model: 193-EA4CB
Series: B
Technical Information
- Current Range: 0.32 / 1 A
- Rated Insulation Voltage (Ui): 690 V
- Rated Operating Voltage (Ue): 690 V
- Rated Impulse Withstand Voltage (Uimp): 6000 V
- Rated Operating Current (Ie): 0.75 A @ 380/480 V
- Conventional Thermal Current (Ith): 5 A
- Contact Configuration: 1 Normally Closed (NC), 1 Normally Open (NO)
- Rated Current (Ie): 0.5 A
- Torque: 1.8 N·m
- Standard Compliance: EN60947 / IEC 947
- Trip Class: 10
- Ambient Temperature: Open: ˆ’20 / +60 °C, Enclosed: ˆ’20 / +40 °C
- Protection Degree: IP2LX
