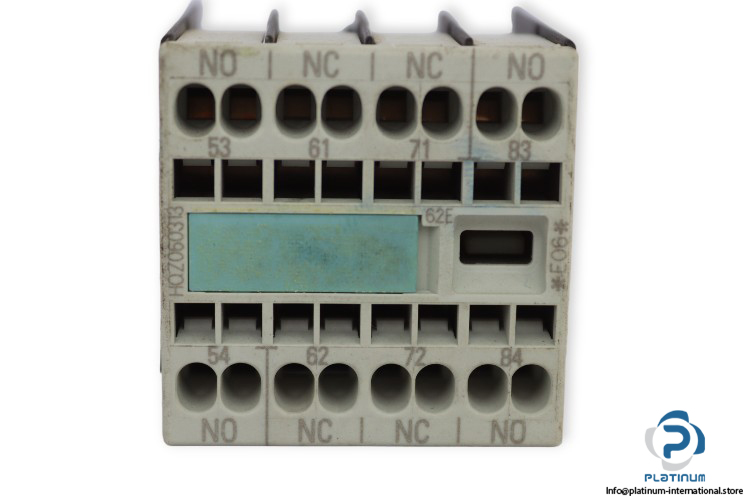

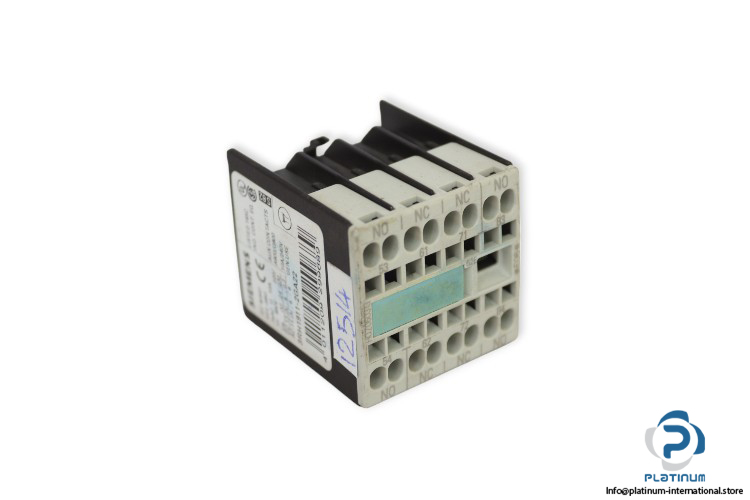

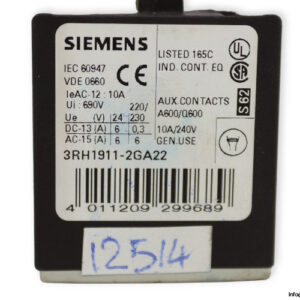

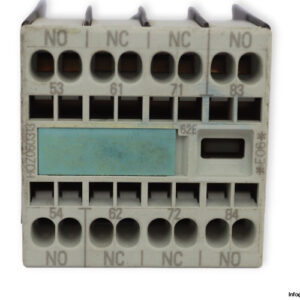

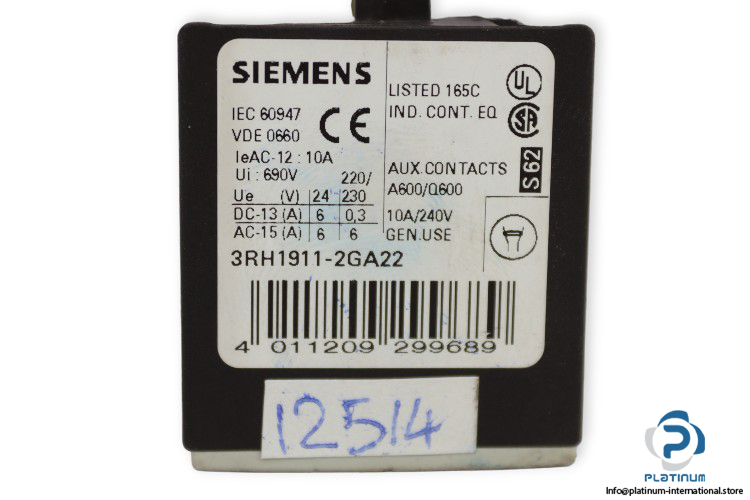

Siemens 3RH1911-2GA22 Auxiliary Switch Block

Manufacturer: Siemens
Type: Auxiliary Switch Block
MNR: 3RH19112GA22
Brand Name: SIRIUS

Insulation voltage Ui: 690 V
Contact: 2 normally closed, 2 normally open
Switching capacity:
DC-13: 24 V,6A /(220/230) V, 0.3 A
AC-15: 24 V,6 A/(220/230), 6 A
Type of electrical connection: spring-loaded terminals
Mounting type: snap on mounting
Standard: IEC 60947, VDE 0660
Protection degree: IP20
General use: 240 V/10 A
Operation temperature: -25 … 60°C
Dimensions: 36.5 x 37.5 x 46 mm
