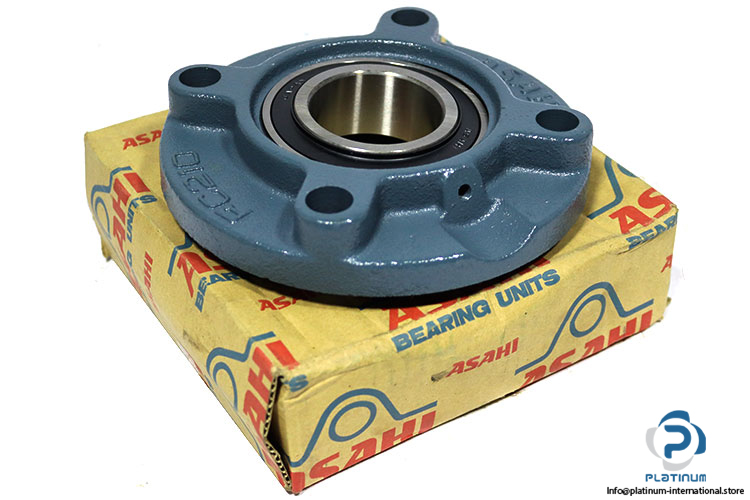

Asahi UKFC 210 Round Flange Ball Bearing Unit
The Asahi UKFC 210 Round Flange Ball Bearing Unit is designed for heavy-duty applications with a bore diameter of 45 mm and a housing material made of durable cast iron. It features a UK210 bearing and is equipped with a FC210 housing number, ideal for various industrial machinery. This unit is built to withstand high-pressure environments with a compact size of 165 mm outside diameter and offers easy installation with a bolt size of M14.
🔧 Technical Specifications:
- Manufacturer: Asahi
- Type: Round Flange Ball Bearing Unit
- Model: UKFC 210

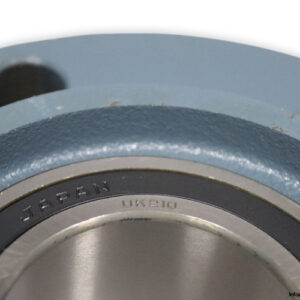

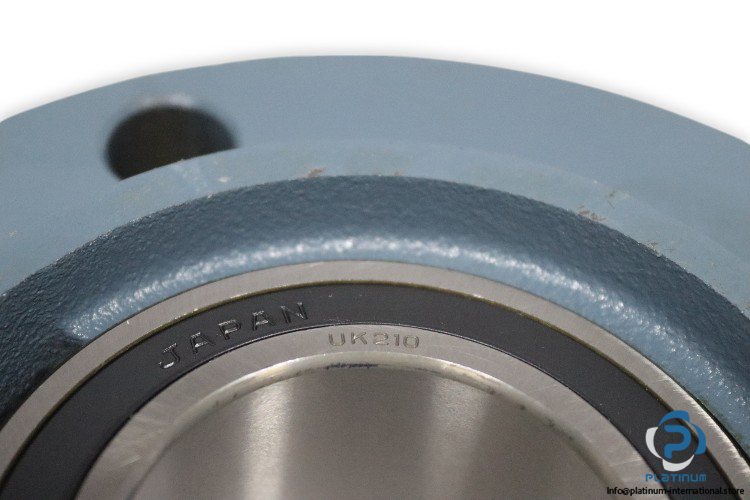

- Bearing Number: UK210

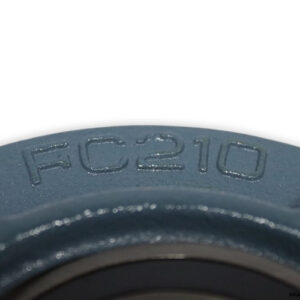

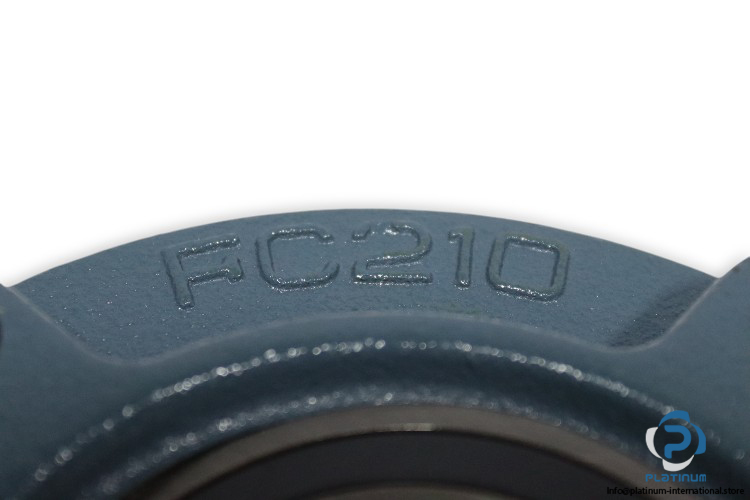

- Housing Number: FC210

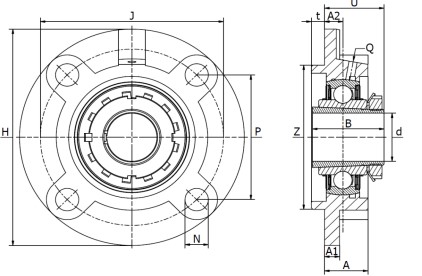

- Bore Diameter: 45 mm
- Outside Diameter L: 165 mm
- Distance Between Attachment Bolts J1: 97.6 mm
- Length of Attachment Bolt Hole N: 16 mm
- Width of Inner Ring B: 55 mm
- A: 28 mm
- U: 50 mm
- Bolt Size: M14
- Housing Material: Cast Iron
The Asahi UKFC 210 bearing unit is engineered for efficiency, providing reliable performance under high load conditions. Its robust design, including a set screw locking device and spherical bore tolerance, ensures long-lasting durability and smooth operation.
