Bearings Housing Units Plummer Block Housing Units

Translink UCFC207 Round Flange Ball Bearing Unit

Name: TRANSLINK UCFC207 ROUND FLANGE BALL BEARING UNIT
SKU: 1030924
Availability: LimitedAvailability

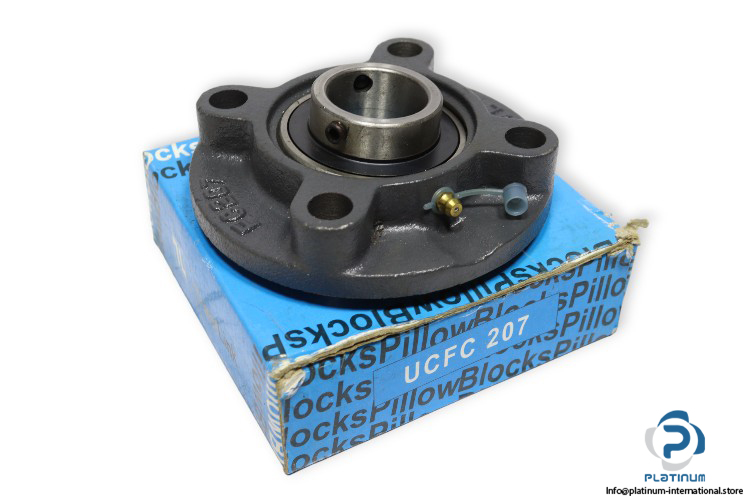

translink-UCFC207-round-flange-ball-bearing-unit-(new)-(carton)

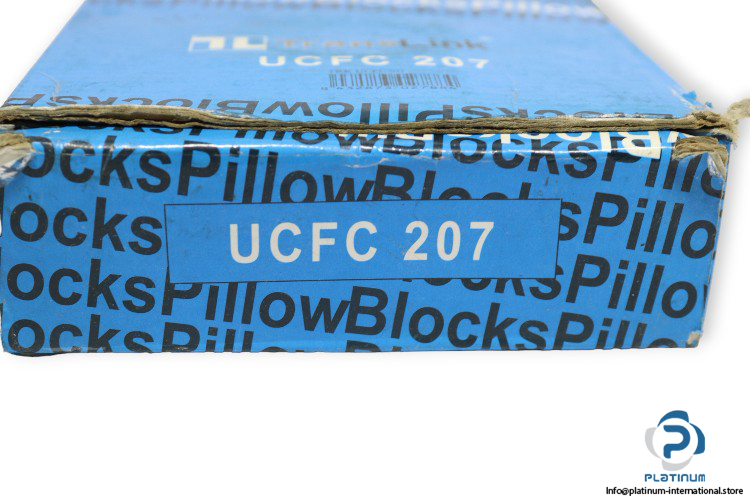

translink-UCFC207-round-flange-ball-bearing-unit-(new)-(carton)-1

translink-UCFC207-round-flange-ball-bearing-unit-(new)-(carton)-2

translink-UCFC207-round-flange-ball-bearing-unit-(new)-(carton)-3

translink-UCFC206-round-flange-ball-bearing-unit-(new)-(carton)-4

New

In stock1 unitReady to ship

Manufacturer:

Trans Link

Type:

Round flange ball bearing unit

Model:

UCFC 207

Bearing Number:

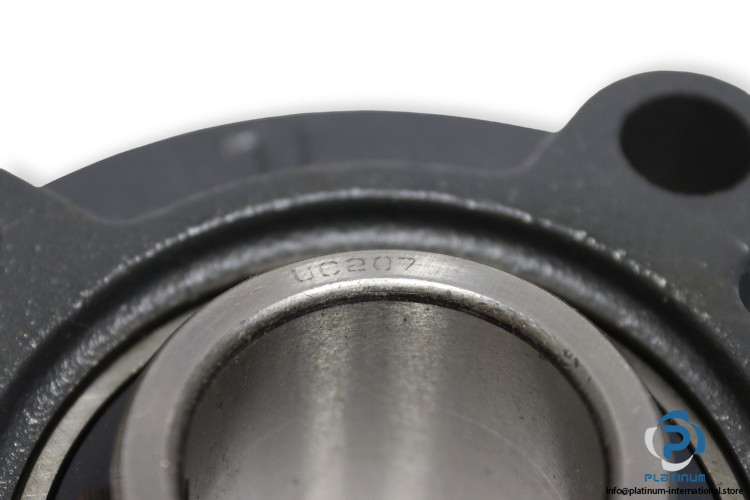

UC207

Housing Number:

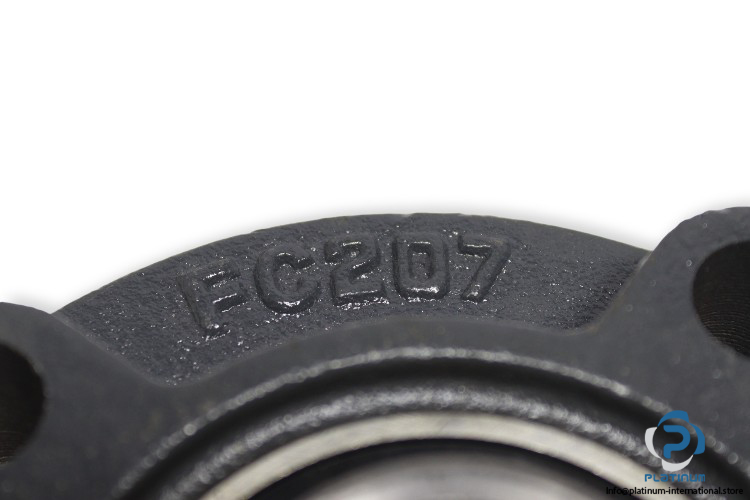

FC207

Manufacturer

TRANSLINK

SKU

1030924

Category

Plummer Block Housing Units

Condition

New

35 bearing bearings Flange flanged Four-Bolt mm Pillow Round Translink Unit

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: Trans Link
Type: Round flange ball bearing unit
Model: UCFC 207
Bearing Number: UC207
Housing Number: FC207

Dimensions
Bore Diameter d: 35 mm
Outside diameter a: 135 mm
Distance between attachment bolts e: 77.8 mm
Pitch diameter of attachment bolts p: 110 mm
Length of attachment bolt hole S: 14 mm
Width of inner ring Bi: 42.9 mm
Overall width Z: 36.4 mm
Locking Device: Set Screw
Material, housing: Cast iron
