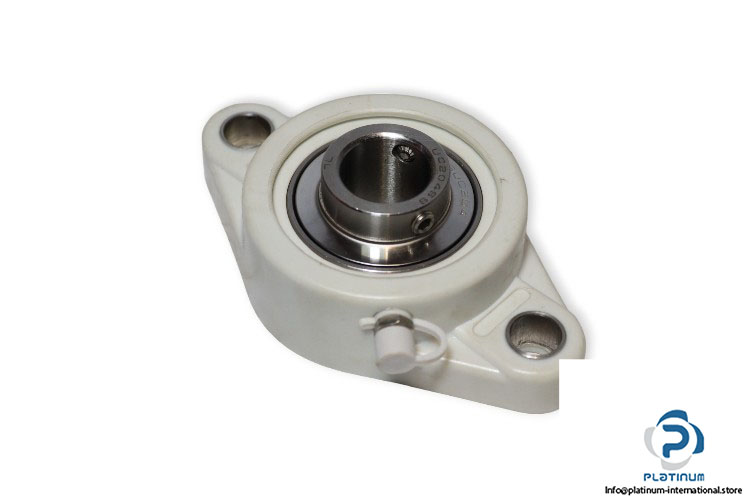

Translink UCFL204 Plastic Oval Flange Housing Unit
New
In stock5 unitsReady to ship
Manufacture: Translink Type: plastic Oval Flange Housing Unit Bearing No.: SUC204
Model:
UCFL 204
Housing No.:
FL204
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacture: Translink
Type: plastic Oval Flange Housing Unit
Model: UCFL 204
Housing No.: FL204
Bearing No.: SUC204

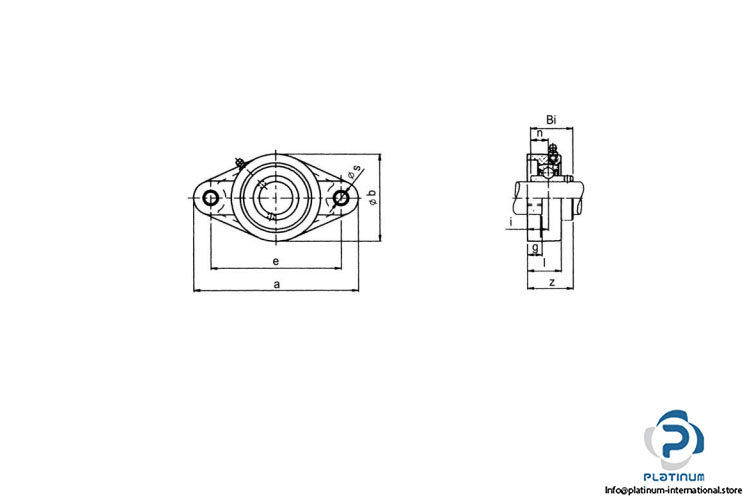

Dimensions
Bore Diameter d: 20 mm
Overall Length b: 70 mm
Overall Height a: 130 mm
Distance mounting surface to bearing center i: 15.4
Distance Between Attachment Bolts e: 90 mm
Diameter of attachment bolt hole s: 11 mm
Overall Width z: 33.7 mm
Mounting: Oval Flange
Housing Color: White
Material, housing: Plastic
Material, bearing: Stainless Steel
